25
%
*
[SR11800(BEF )01/95]
How the Air Bag Supplemental Restraint
System Operates
*
[SR11900(BEF )10/94]
The air bag supplemental restraint system has
two main parts. One part is the air bag system
with the driver air bag and inflator located in
the center of the steering wheel. The second part
is the electrical system, which has impact
sensors, and a diagnostic module, and backup
power supply. The diagnostic module monitors
its own internal circuits and the supplemental air
bag electrical system readiness, including the
impact sensors, the system wiring, the air bag
system readiness light, air bag power, and the
air bag ignitor.
*
[SR12050(B F )03/93]
half page art:0021011-A

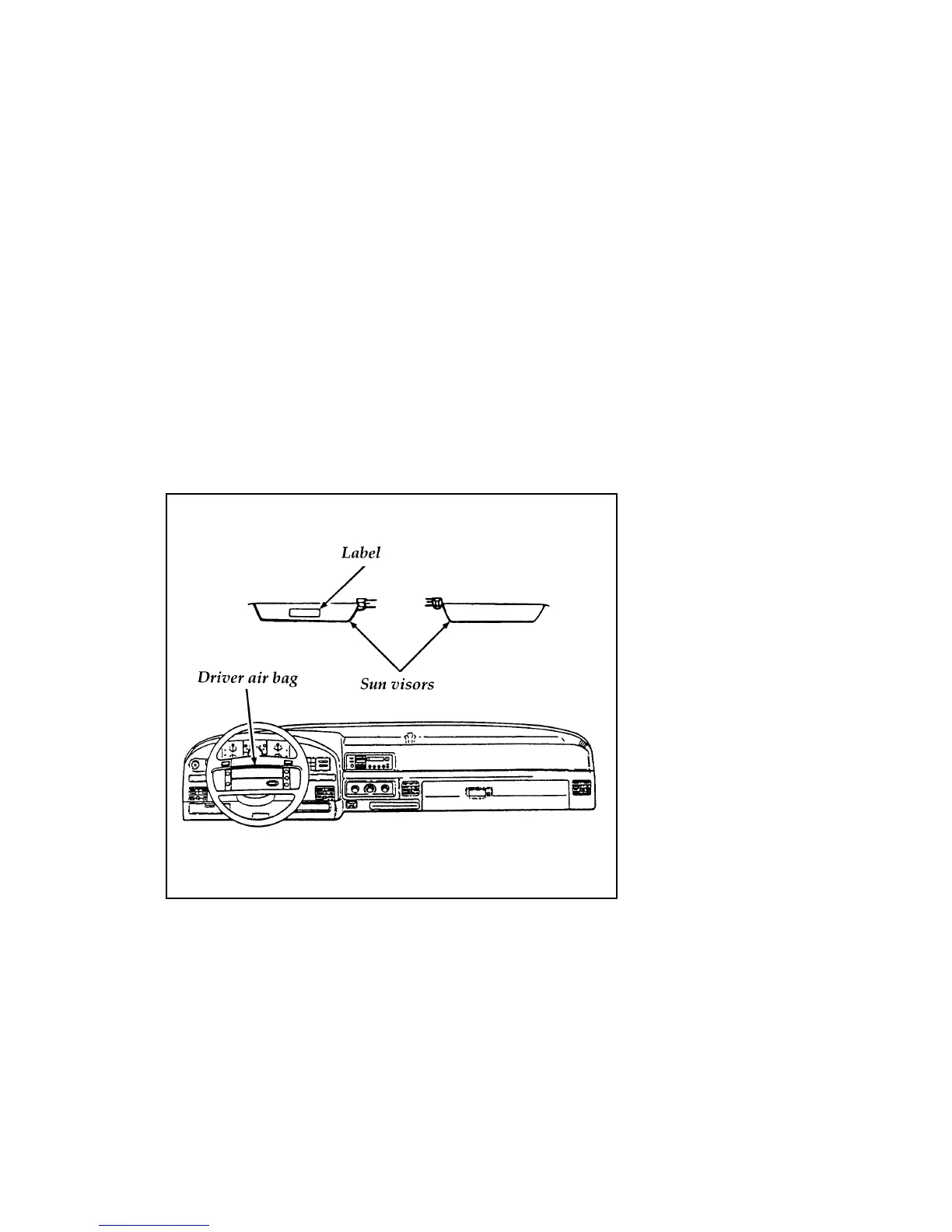

The location of the air bag and warning label
