REVERSING DOOR
Reversing the hinge
ROUND PLUG
ROUND PLUG
SQUARE PLUG
HINGE SCREWS
OUT
IN

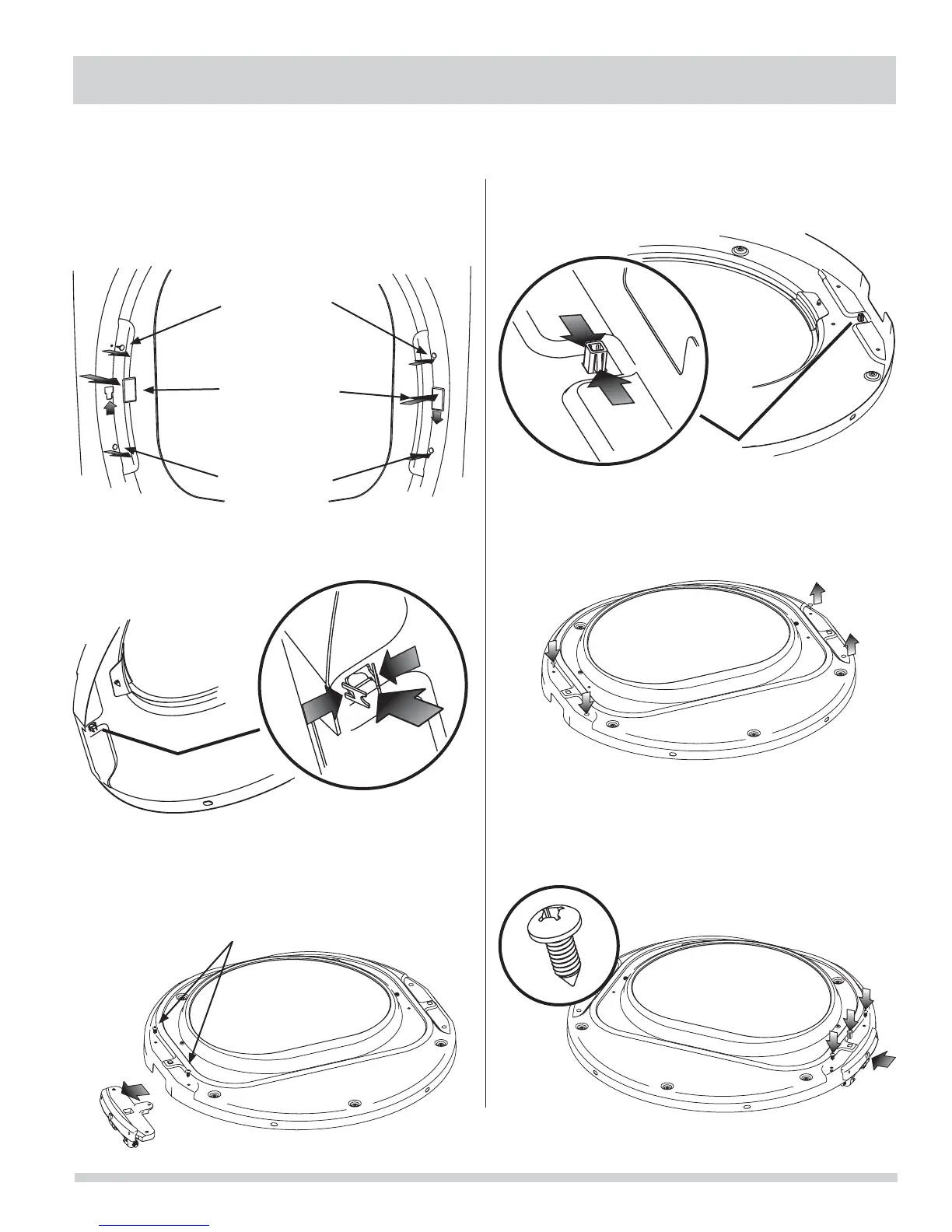

1 Carefully pull out the 2 small round hole plugs from
the front panel and save. Remove and save the
square “T” slot cover by sliding it up and pulling
it out. Move all 3 plugs to the opposite side of the
front panel and insert.
2 Turn inner door assembly over to expose retaining
tabs of metal strike. Grip tabs fully with pliers to
remove. Discard old metal strike.
4 From the back side of the inner door, pinch the
retaining tabs of the plastic square plug to release
it. Save square plug for reinstallation.
5 Carefully remove the 2 round plugs from the inner
door and move them to the opposite holes and
reinstall.
6 Rotate the hinge and move it to the opposite side
of the inner door. Attach it with the 2 pan head
screws removed previously. Reinstall plastic plug in
the square hole next to the hinge.
3 Turn the inner door assembly back over and locate
the 2 pan head hinge screws. Remove and save the
2 screws and separate the hinge from inner door
assembly.
To Next Page
