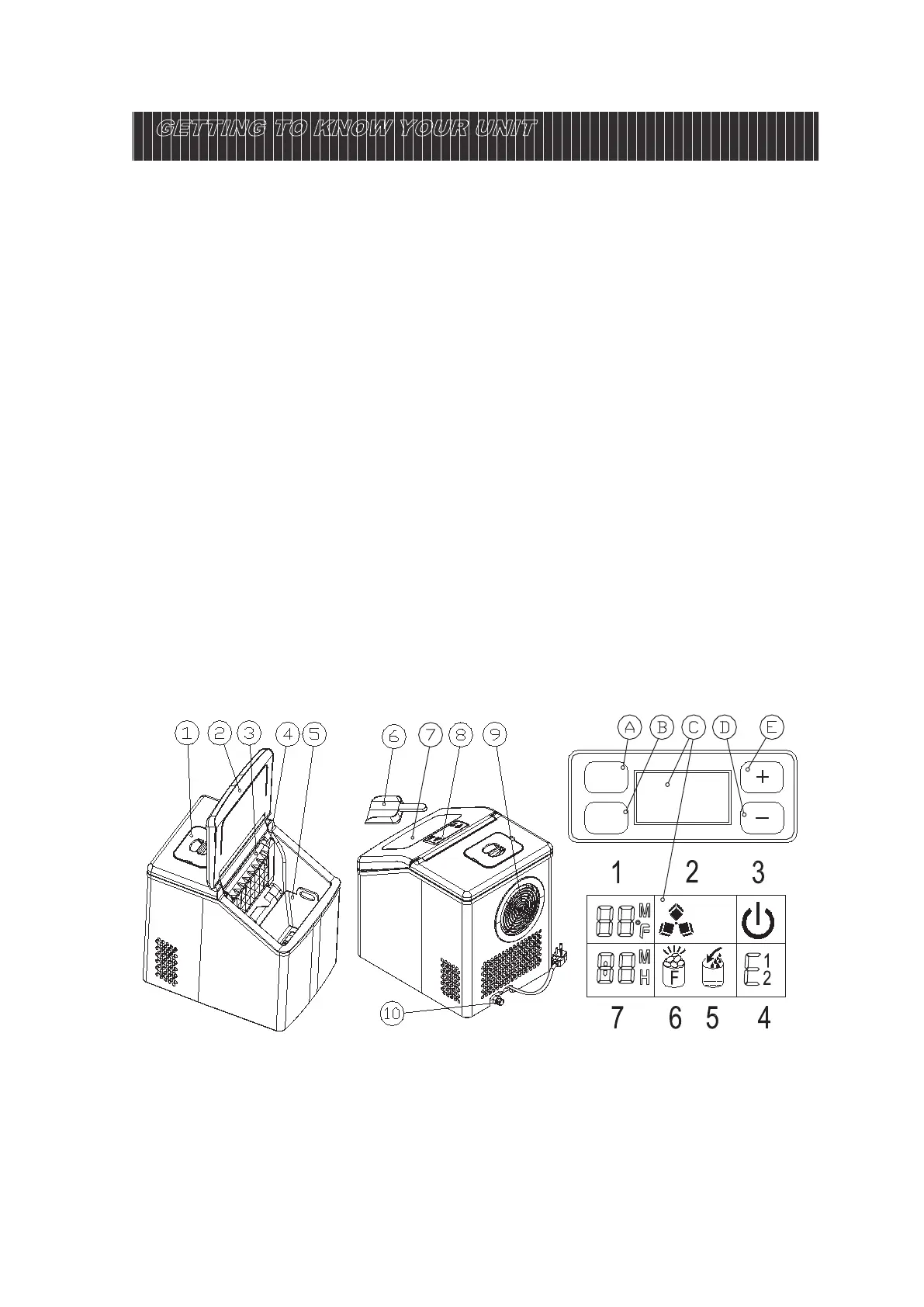

1. Water reservoir cover
2. Unit top cover
3. Water separator pipe
4. Evaporator
5. Ice basket
6. Ice scoop
7.Transparent window
8. Control Panel:
A. Timer button
B. Power button
C. LCD Display area
1
．
Ambient temp and ice making countdown symbol: when display show <M>, ice making
countdown,when display show <℉>,means ambient temp.
2．Ice making and Ice harvest symbol: when the symbol is running, the unit is making ice
cube ,when the symbol flash, the unit is ice harvest.
3．ON/OFF symbol.
4．Error code E1-Ambient temp senor breakdown.E2-refrigerating tube sensor breakdown
5．Lack water warning symbol.
6．Ice full warning symbol.
7．Time setting display area. When show <H>,timer unit ON/OFF, when show <M>,setting
ice making time.
D. Ice making and timer reduce.
E. ice mak
ing and timer increase.
9. Hot Air Outlet
10. Water draining port: To draining out the water from unit.
+
ON/OFF
TIMER
-
GETTING TO KNOW YOUR UNIT
