2 Product Overview
56
Product Overview
2

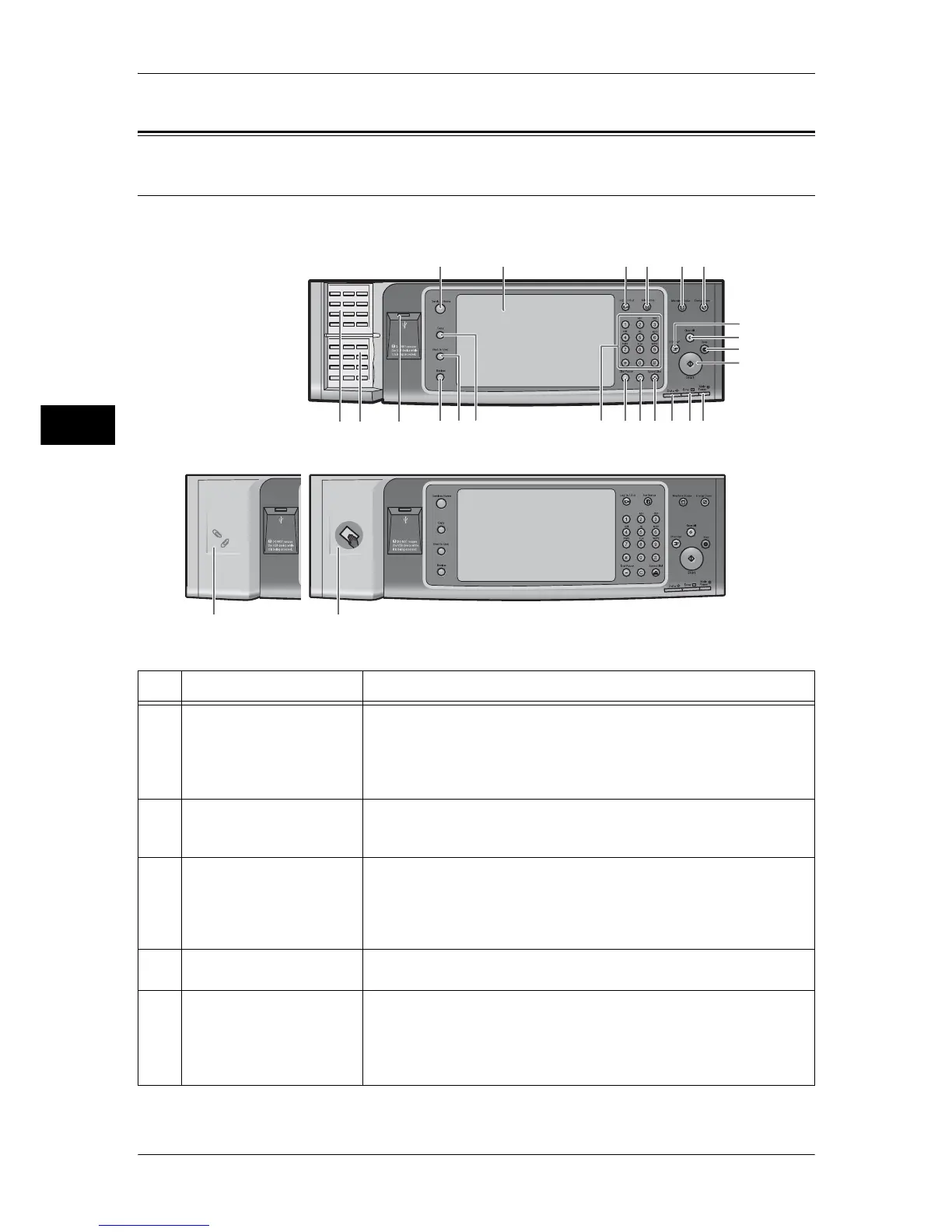

Control Panel
Middle Size Color UI
The following describes the names and functions of components on the control panel.
No. Component Function
1 <Services Home> button Press this button to display the [Services Home] screen.
You can change the services displayed on the [Services Home] screen. For
more information, refer to "1 Before Using the Machine" > "Customizing the
Control Panel" > "Customizing the Button Layout" > "Services Home" in the
Administrator Guide.
2 Touch screen Displays messages required for operation, and buttons for various
features. You can directly touch the touch screen to instruct operations
and set features.
3 <Log In/Out> button Lights up when a user is authenticated in the System Administration
mode, the Authentication mode, or the Accounting mode. Displays the
User ID entry screen for entering the System Administration mode, the
Authentication mode, or the Accounting mode. Press this button to exit
these modes.
4 <Job Status> button Press this button to check or cancel the current job, to check or print
stored jobs, or to check completed jobs.
5 <Machine Status> button Press this button to check the machine status and meters, to check the
status of consumables, and to print reports.
Note • By pressing the <Machine Status> button when you exchange
consumables, you can make the output device exit the Energy
Saver Mode and check the latest status of consumables.
11
12
13
14
15
16
17
18
19
20
21
22
23
9
10
8
7
1
2
3
45
6
24
25
