Fujitsu 30RLXEH User Manual

En-16

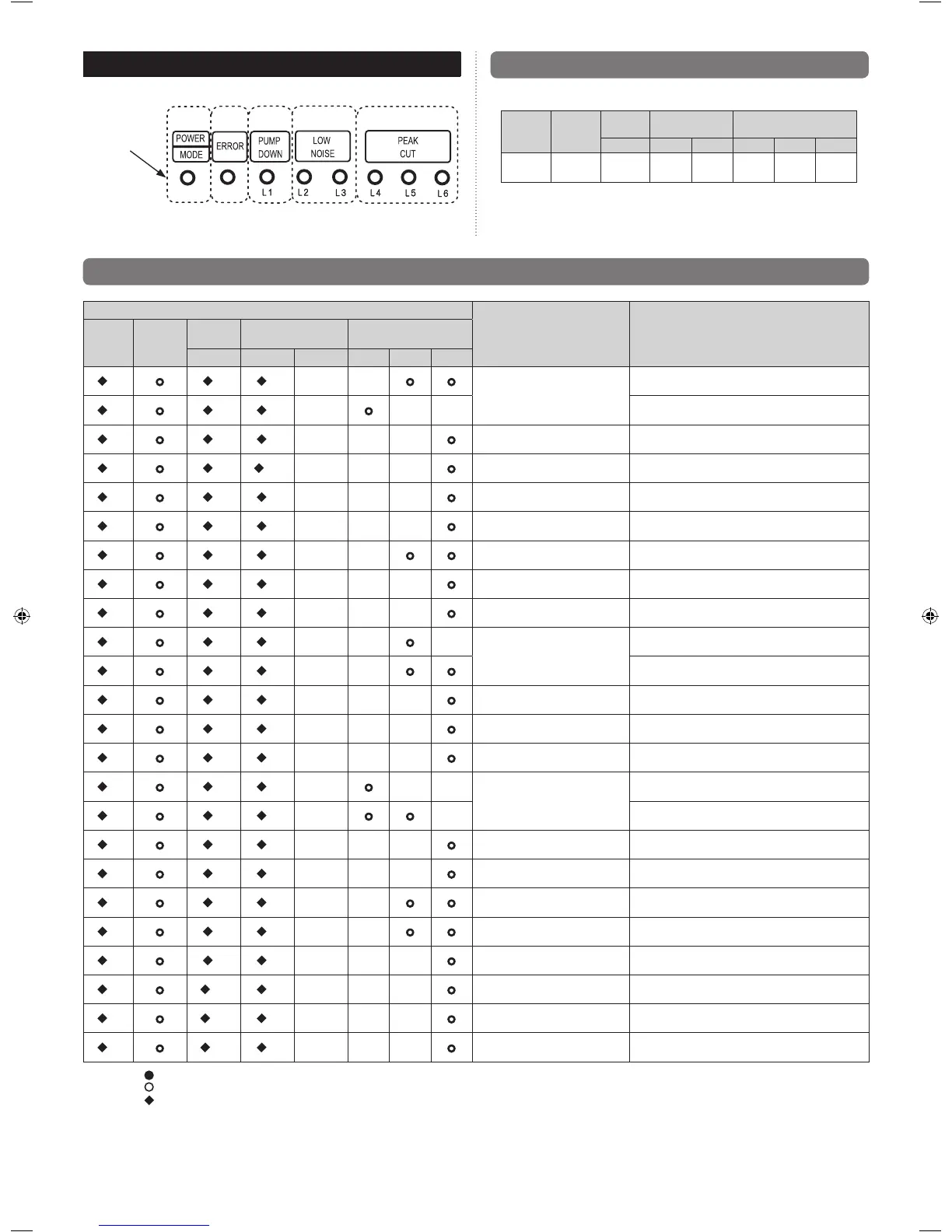

12.2. Error code check table
LED display
DESCRIPTION REMARK
POWER/
MODE
ERROR
PUMP
DOWN
LOW NOISE PEAK CUT
(L1) (L2) (L3) (L4) (L5) (L6)
(2)
●
(1) (1)
○ ○
● ●
Serial communication error
Serial forward transmission error immediately after
operation
(2)
●
(1) (1)
○
●
○ ○
Serial forward transmission error during operation
(2)
●
(2) (2)
○ ○ ○
●
Indoor unit capacity error Indoor unit capacity error
(2)
●
(5) (15)
○ ○ ○
●
Indoor unit error Indoor unit error
(2)
●
(6) (2)
○ ○ ○
●
Outdoor unit main PCB error Outdoor unit PCB model information error
(2)
●
(6) (3)
○ ○ ○
●
Inverter PCB error Inverter error
(2)
●
(6) (5)
○ ○
● ●
IPM error Trip terminal L error
(2)
●
(7) (1)
○ ○ ○
●
Discharge temp. sensor error Discharge temp. sensor 1 error
(2)
●
(7) (2)
○ ○ ○
●
Compressor temp. sensor error Compressor temp. sensor 1 error
(2)
●
(7) (3)
○ ○
●
○
Outdoor unit Heat Ex. sensor error
Heat Ex. middle temp. sensor error
(2)
●
(7) (3)
○ ○
● ●
Outdoor unit Heat Ex. liquid temp. sensor error
(2)
●
(7) (4)
○ ○ ○
●
Outdoor temp. sensor error Outdoor temp. sensor error
(2)
●
(7) (7)
○ ○ ○
●
Heat sink temp. sensor error Heat sink temp. sensor error
(2)
●
(8) (4)
○ ○ ○
●
Current sensor error Current sensor 1 error (stoppage permanently)
(2)
●
(8) (6)
○
●
○ ○
Pressure sensor error
High pressure switch 1 error
(2)
●
(8) (6)
○
● ●
○
Pressure sensor error
(2)
●
(9) (4)
○ ○ ○
●
Trip detection Trip detection
(2)
●
(9) (5)
○ ○ ○
●
Compressor motor control error Rotor position detection error (stoppage permanently)
(2)
●
(9) (7)
○ ○
● ●
Outdoor unit fan motor 1 error Duty error
(2)
●
(9) (8)
○ ○
● ●
Outdoor unit fan motor 2 error Duty error
(2)
●
(9) (9)
○ ○ ○
●
4-way valve error 4-way valve error
(2)
●
(10) (1)
○ ○ ○
●
Discharge temp. 1 error Discharge temp. 1 error
(2)
●
(10) (3)
○ ○ ○
●
Compressor temp. error Compressor 1 temp. error
(2)
●
(10) (5)
○ ○ ○
●
Pressure error 2 Low pressure error
Display mode
: Lights on
: Lights off
: Blink (0.5s Lights on / 0.5s Lights off)
( ) : Number of ashing
12. ERROR CODE
You can determine the operating status by the lighting up and blinking of the LED lamp.
6:
6:
6: 6: 6:





LED display part
12.1. Error display mode
Display when an error occurs.
POWER/
MODE
ERROR
PUMP
DOWN
LOW
NOISE
PEAK
CUT
(L1) (L2) (L3) (L4) (L5) (L6)
●
Blink
(Hi speed)
○ ○ ○ ○ ○ ○
Sign “
○
”: Lights off, “
●
”: Lights on
(1) Check that the “ERROR” LED blinks, then press the “ENTER” button once.
(2) For details, refer to the following table.
9379069762_IM.indb 16 3/4/2016 09:03:54
