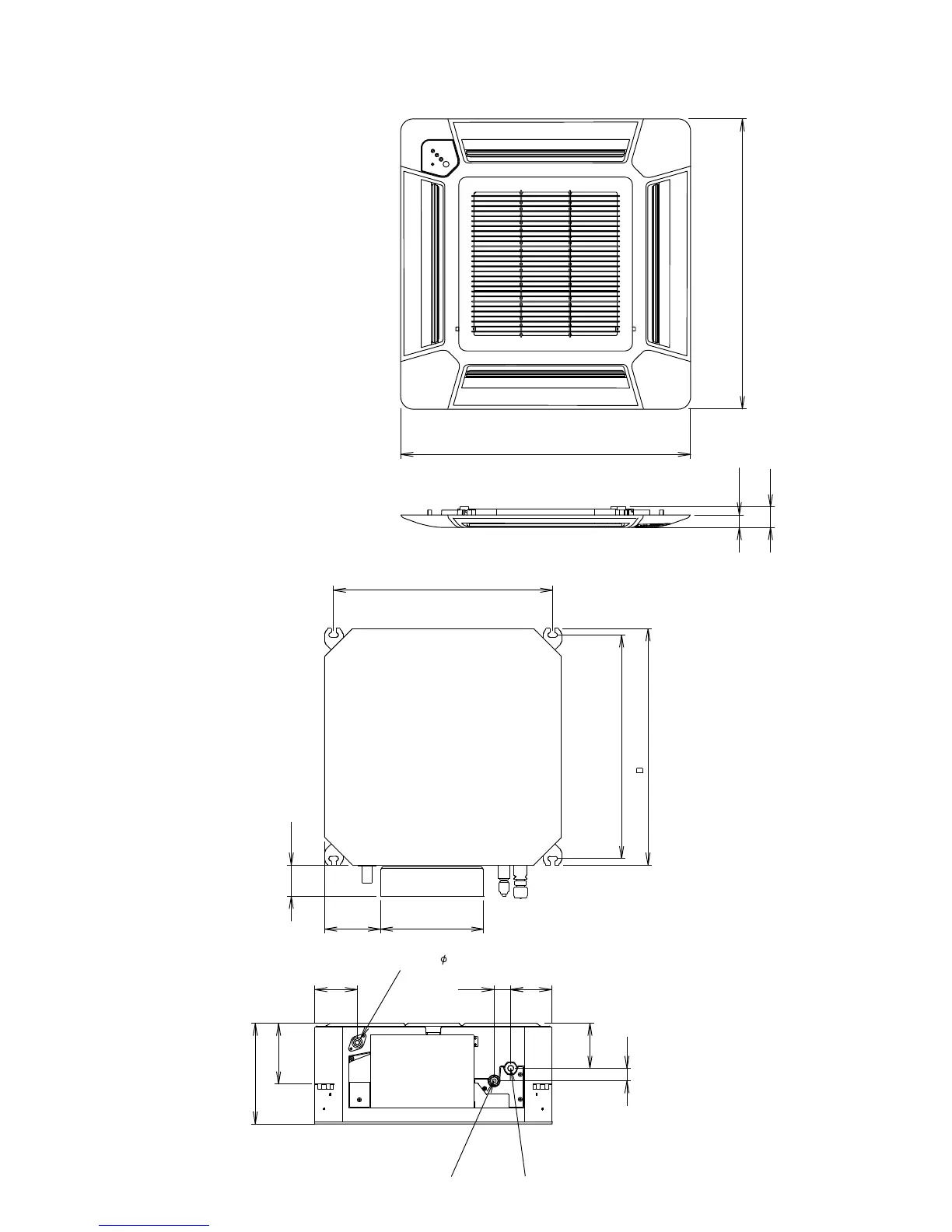

OUTLINE AND DIMENSIONS
CASSETTE TYPE
Unit : mm
DECORATION PANEL
700
30
50
700
570
245
146
75
30
102
135
250
99
40
Liquid pipe Gas pipe
108
INDOOR UNIT
Top view
Side view
530
(
Hanging bolt position
)
Drain pipe
(
0.D. 25.4
)
540
(
Hanging bolt position
)
