Fujitsu AOU18RLQ Service Manual

ASU15RLQ Capacity/Input data
08-07
*Defrosting operation is performed when temperature is less than 5.5 degrees C.
Frost appears on an outdoor unit heat exchanger at 5.5 or less degrees C.
*Solid line:Integral capacity/Input containing the defrosting cycle.
*Dotted line:Capacity/Input which does not contain the defrosting cycle.
Heating

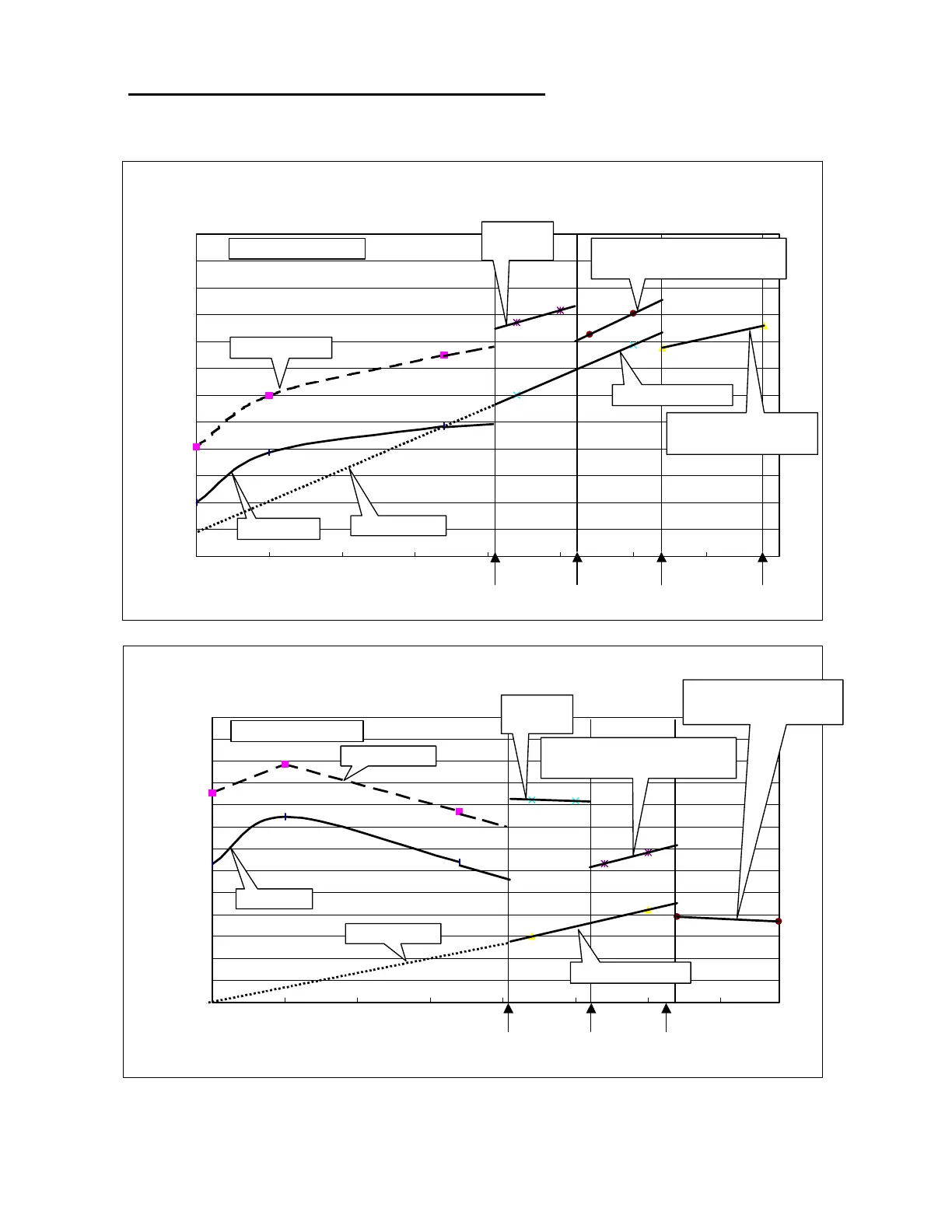

<Capacity>
< Input >
40%
50%
60%
70%
80%
90%
100%
110%
120%
130%
140%
150%
160%
-15 -10 -5 0 5 10 15 20 25
Outdoor DB( C)
Capacity(%)
5.5
Without Frost
With Frost
24
Rated operation
Maximum operation
Current release works
11
17
70%
80%
90%
100%
110%
120%
130%
140%
150%
160%
170%
180%
190%
200%
-15 -10 -5 0 5 10 15 20
5.5
With Frost
24
11 17
Without Frost
Indoor DB : 21.10 C
Maximum operation
Current release works
Without Frost
Without Frost
Maximum
operation
Maximum
operation
Maximum operation
(Heating overload protection)
Maximum operation
(Heating overload protection)
O
Indoor DB : 21.10 C
O
O
Rated operation
