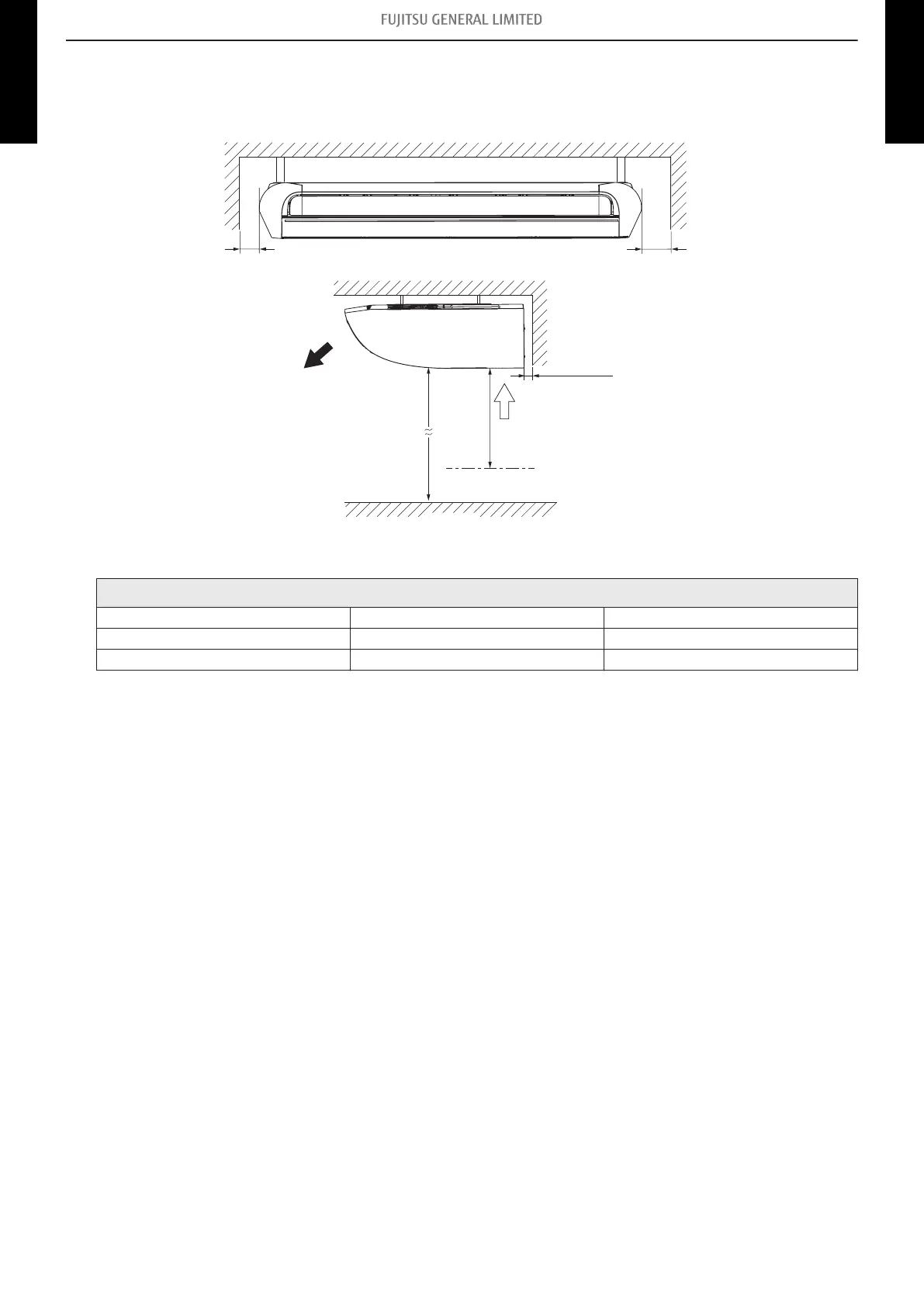

2-4. Installation space requirement
Unit: mm
Ceiling
Ceiling
30 or more
2,500 or more
1,000 or more
200 or more
0 or more
Obstruction
Floor
Indoor unit
Required ceiling height varies according to the ceiling mode setting of function setting No. 20.
Ceiling height (m)
Ceiling mode Standard High ceiling
18, 22, 24, and 30 models 2.7 3.5
36 and 45 models 3.5 4.3
- 11 -
2-4. Installation space requirement 2. Dimensions
CEILING TYPE
ABYG18-45KRTA
CEILING TYPE
ABYG18-45KRTA
