ADJUSTING THE DIRECTION OF AIR CIRCULATION
Instructions relating to heating (*) are applicable only to “HEAT & COOL MODEL” (Reverse Cycle).
Vertical (up-down) direction of airflow is adjusted by pressing the remote control unit’s AIR FLOW DIRECTION VERTICAL SET
button. Horizontal (right-left) direction of airflow is adjusted by pressing the remote control unit’s AIR FLOW DIRECTION
HORIZONTAL SET button.
DANGER!
Never place fingers or foreign objects inside
the outlet ports, since the internal fan oper-
ates at high speed and could cause personal
injury.
● Always use the remote control unit’s
AIR FLOW DIRECTION button to adjust
the UP/DOWN air direction flaps or
RIGHT/LEFT air direction louvers. At-
tempting to move them manually
could result in improper operation; in
this case, stop operation and restart.
The louvers should begin to operate
properly again.
● During use of the Cooling and Dry
modes, do not set the UP/DOWN air
direction flaps in the range 4 to 5 for
long periods of time, since water vapor
may condense near the outlet port and
drops of water may drip from the air
conditioner.
● When used in a room with infants, chil-
dren, elderly or sick persons, the air
direction and room temperature
should be considered carefully when
making settings.
Example: When set to vertical air direc-
tion
Example: When set to horizontal air di-
rection

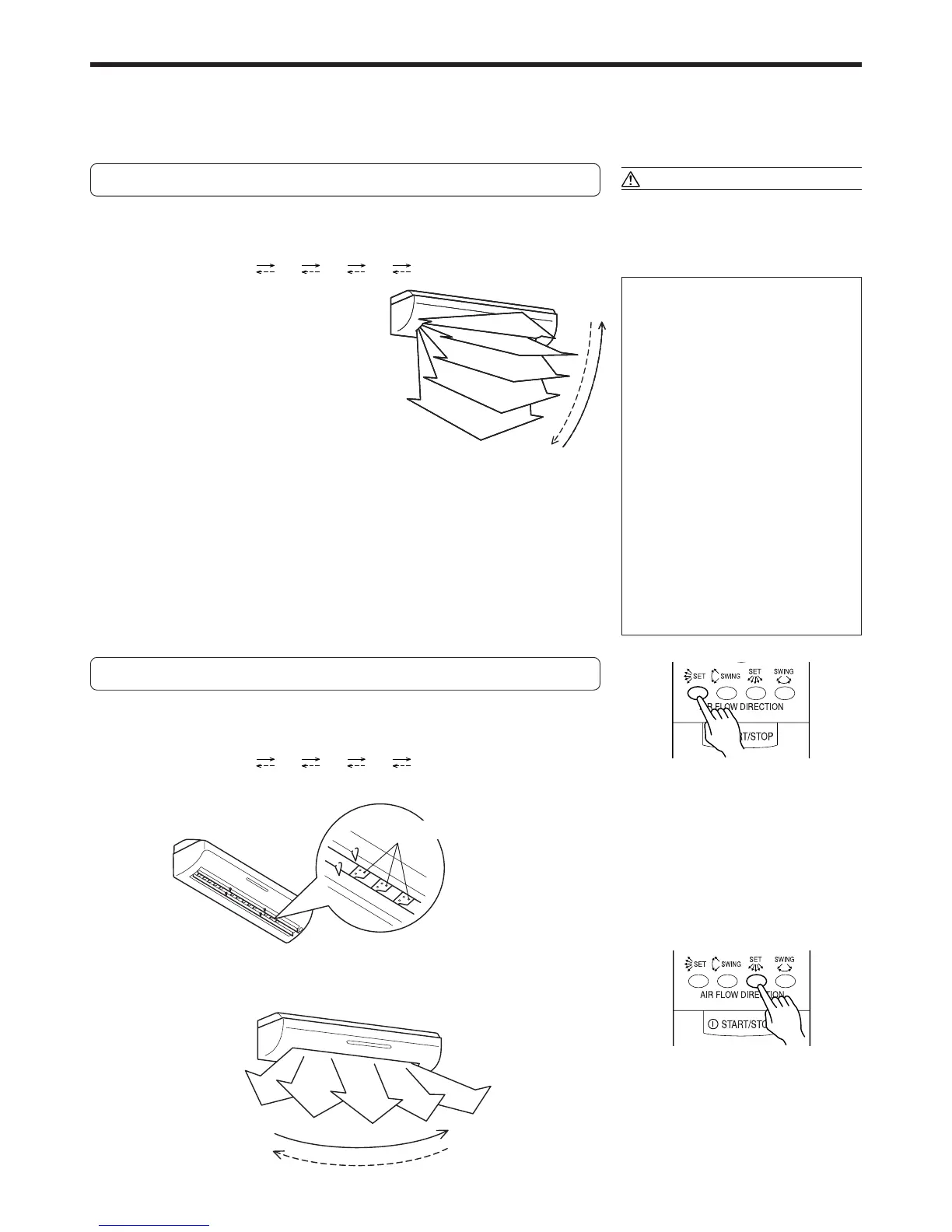

Vertical Air Direction Adjustment
Press the AIR FLOW DIRECTION VERTICAL SET button (Fig. 6 N).
Each time the button is pressed, the air direction range will change as follows:
1
2 3 4 5
Types of Air flow Direction Setting:
1,2,3 : During Cooling/Dry mode
1,2,3,4,5 : * During Heating mode
The remote control unit’s display does
not change.
Fig. 9
● Use the air direction adjustments within the ranges shown above.
● The vertical airflow direction is set automatically as shown, in accordance with
the type of operation selected.
During Cooling/Dry mode : Horizontal flow 1
* During Heating mode : Downward flow 5
● During AUTO mode operation, for the first minute after beginning operation,
airflow will be horizontal 1; the air direction cannot be adjusted during this pe-
riod.
Horizontal Air Direction Adjustment
Press the AIR FLOW DIRECTION HORIZONTAL SET button (Fig. 6 P).
Each time the button is pressed, the air direction range will change as follows:
1
2 3 4 5
The remote control unit’s display does
not change.
● Use the air direction adjustments within the ranges shown above.
Fig. 10
RIGHT/LEFT air direction louvers
1
2
3
4
5
