Fujitsu ASU9R2 User Manual

PARTS
12
8
9
7
13
6
3
1
4
2
3
5
10
5
11

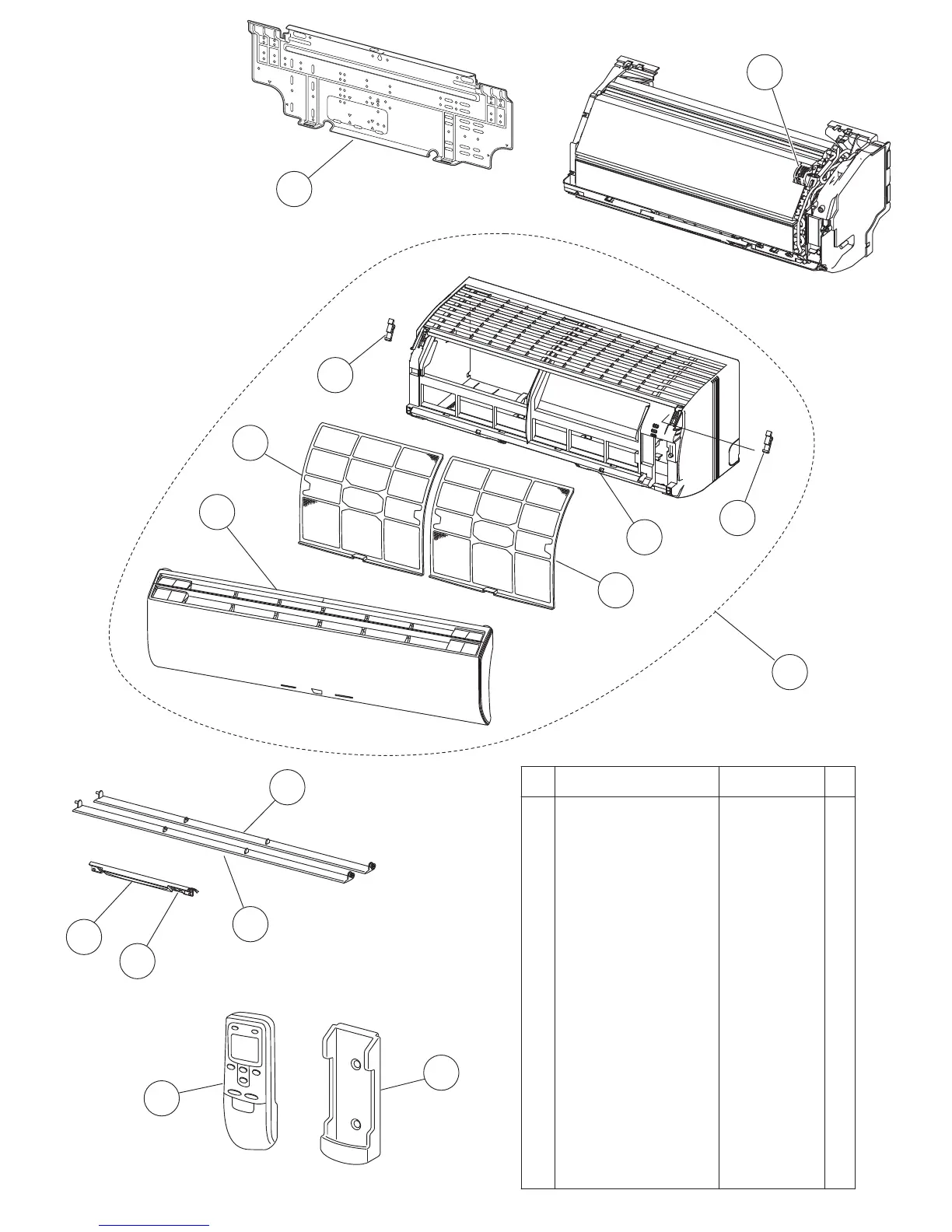

INDOOR UNIT
Front panel assy
11
2010.11.16
3 Air Filter 9309997011
1 Front Panel Assy 9313565107
5 Grille Clamper 9306755010
4 Front Panel 9309999053
2 Intake Grille Assy 9313566074
12 Remote Control 9313693060
-- Receiver Window 9312911011
13 Remote Control Holder 9305642014
6 Louver Z Assy 9312369027
7 Louver U Assy 9312368020
8 Display Case 9311858010
9 Display PCB Assy 9705039049
10 Holder (Room Thermistor) 9311948018
Ref.Ref. Description Part number
11 Bracket Panel Assy 9310001004
