152010.12.22

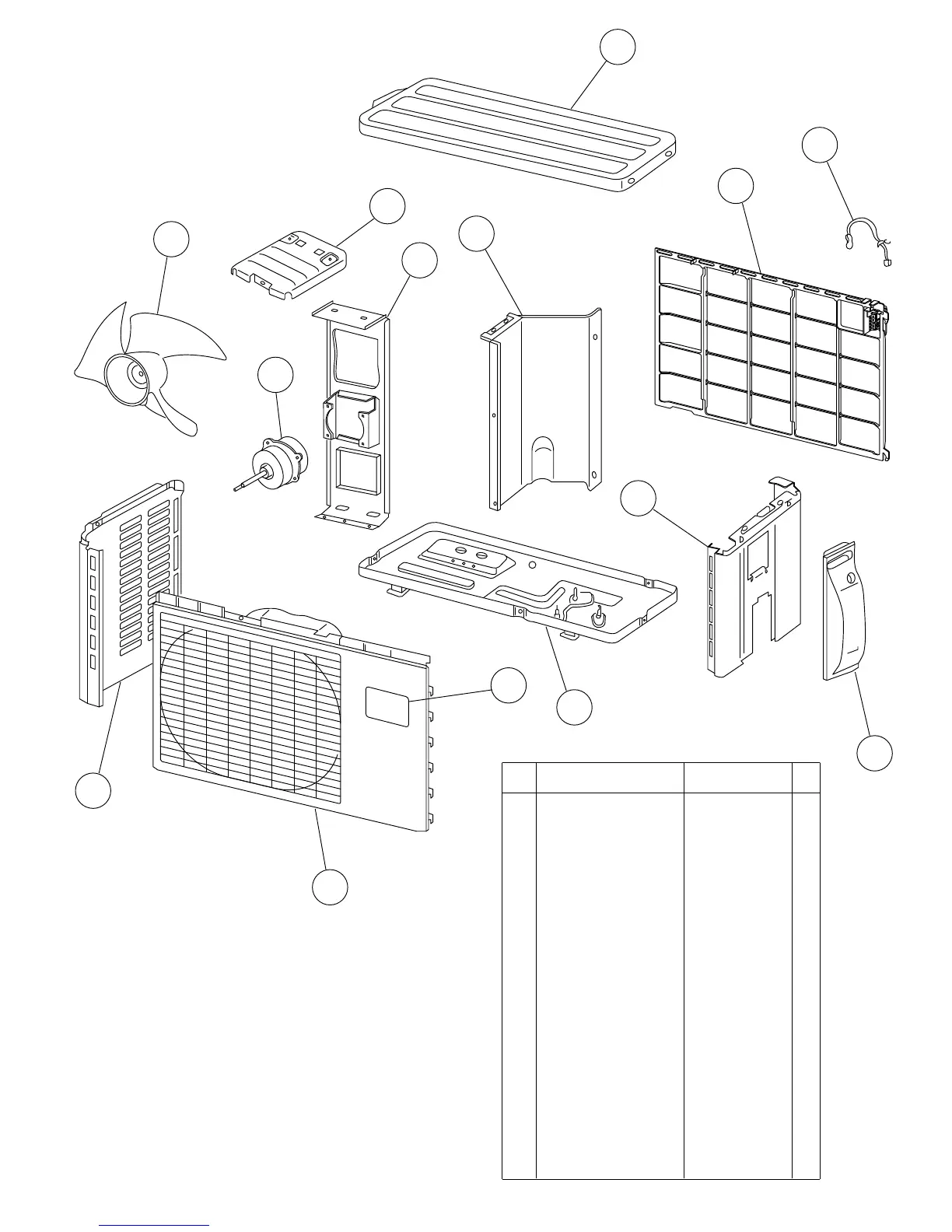

PARTS
OUTDOOR UNIT
6
5
2
4
12
10
10
13
11
1
9
7
3
8
6 Switch Cover 9313940010
7 Protective Net 9313941024
13 Base Assy 9316885004
12 Propeller Fan 9313808013
1 Top Panel Assy 9313988036
10 Motor Bracket Assy 9313990039
4 Cabinet Left Assy 9313991012
2 Front Panel Assy 9313972028
9 Separater C 9313934019
11 Fan Motor 9601847014
3 Emblem 9314534010
-- Drain Assy 9303029022
8 Outdoor Thermistor 9900544010
5 Cabinet Right 9313994105
Ref. Description Part number
