Fujitsu ASU9RL2 Service Manual

PARTS
1
1
2
9
3
14
13
10
12
11
5
6
7
8
4

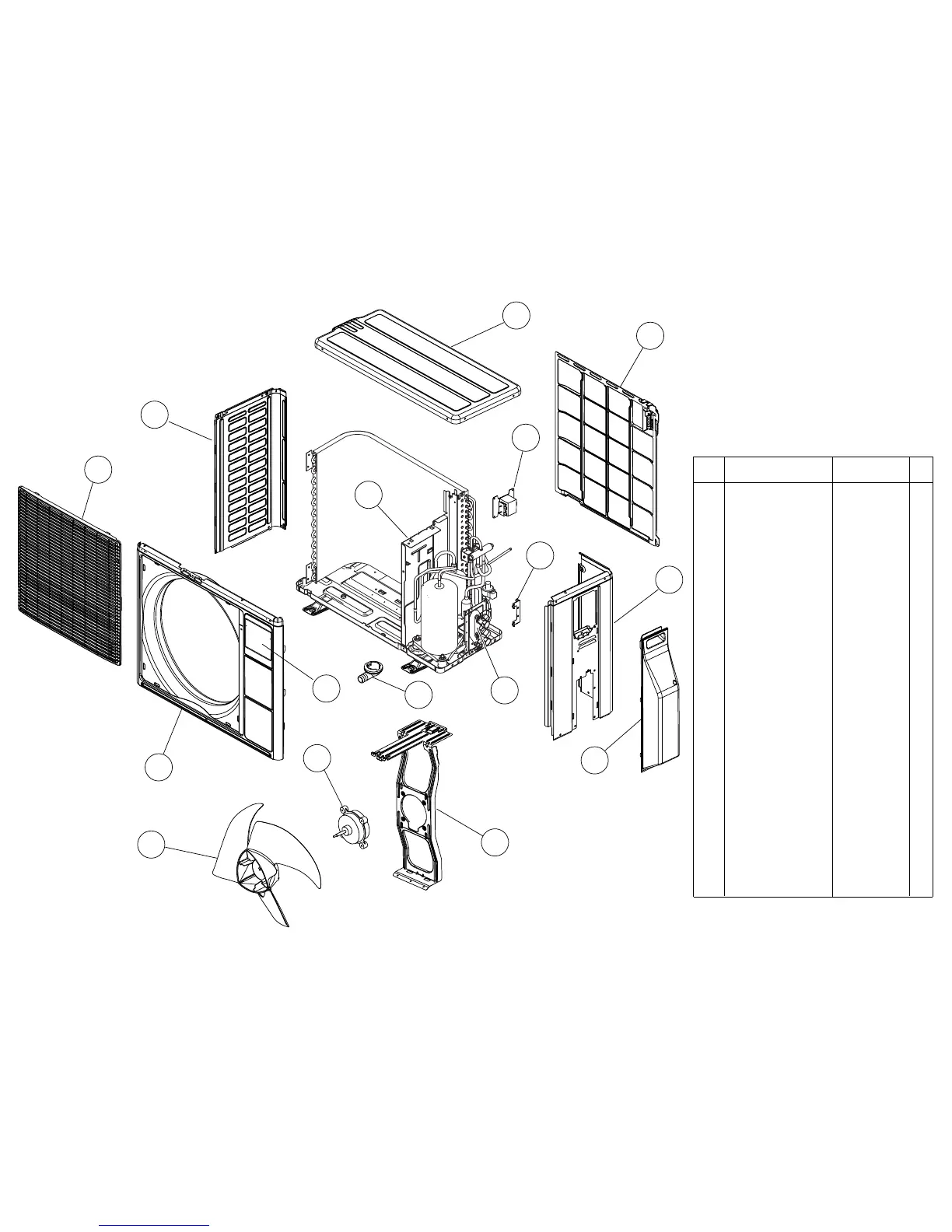

OUTDOOR UNIT
2012.10.31 16
4 Top Panel Assy 9317939034
1 Front Panel Assy 9317789035
5 Protective Net 9331262019
3
6
Cabinet Left Assy 9317813006
2 Emblem 9317903011
Switch Cover 9313940027
8 Valve Bracket 9316523012
7 Cabinet Right Assy 9331336079
9 Valve Bracket Cover 9331683005
11 Motor Bracket (9)
10 Propeller Fan 9309909014
13 Reactor Assy 9900419011
14 Separator Assy 9317927017
15 Drain Pipe Assy 9303029022
12 Fan Motor 9603074005
Ref. Description Part number
9332289022
11 Motor Bracket (12) 9332289039
15
