a
g
e
1
P
ag
e
T
echNot
es D307x-S
V2.0
Page
17
of
56
www.ts.fujitsu.com/mainboar
ds
3

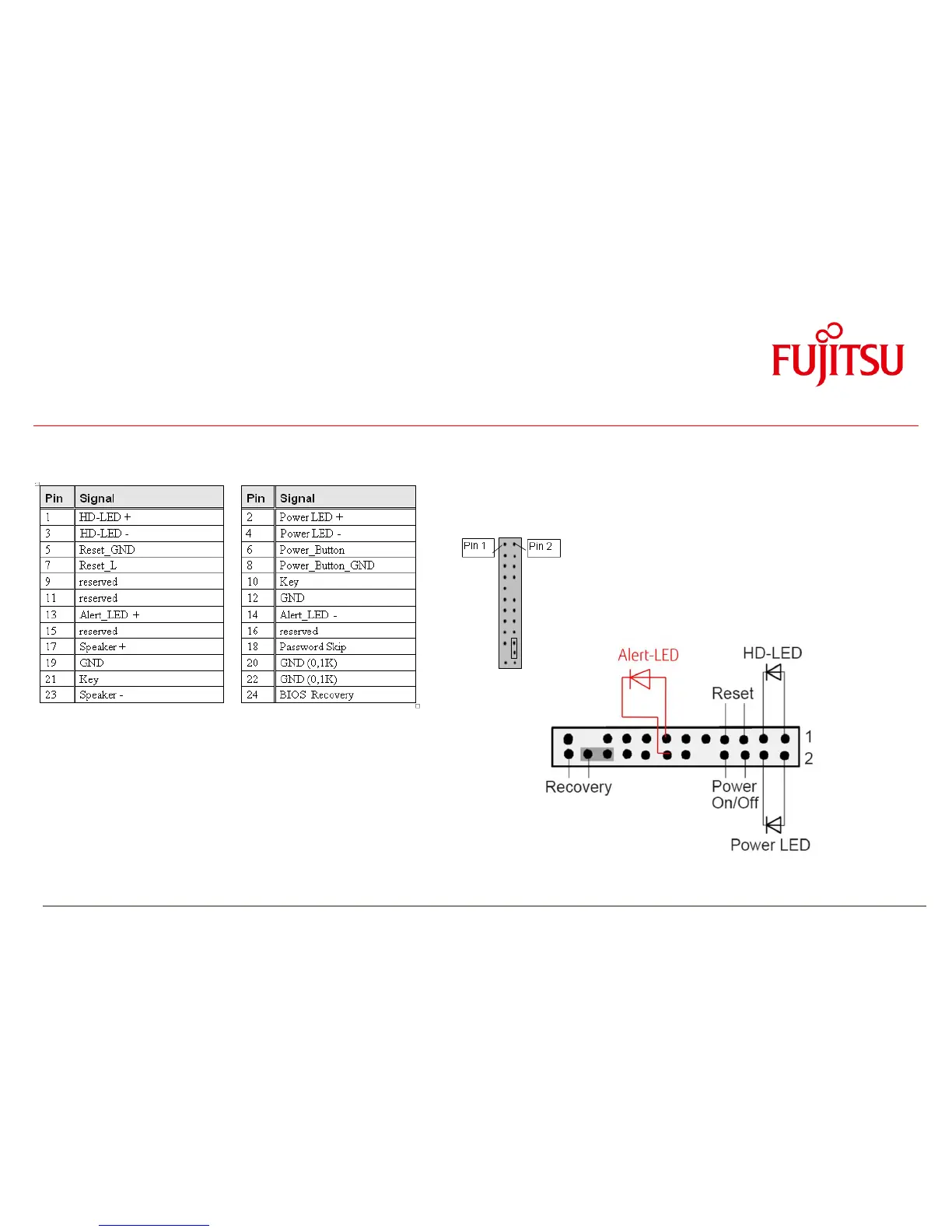

Interfaces & Connectors
3.1
Frontpanel Conn
ector
Pow
er LED:
Anode: Pin 2
–
80R Pullup to 5V_AUX
Cathode: Pin 4
–
output (12mA)
Alert LED:
Anode: Pin 13 - 220R Pullup to 3,3V
Cathode: Pin14
–
output (4mA)
HDD LED:
Anode: Pin 1
–
365R Pullup to 5V
Cathode: Pin 3
–
output (6mA ; ~ 0.7V low level)
Speaker Output:
Differential audio signal; max.
0.5W / 8Ohm
16
18
Table of Contents
Default Chapter
2
Table of Contents
2
1 Safety Instructions
4
2 Feature Overview D307X-S
5
Basic Layout
9
Block Diagram
10
External Connectors D3071-S
11
External Connectors D3076-S
12
Onboard Components D3076-S
13
Onboard Components D3071-S
14
I/O-Shield
15
Feature Overview
16
3 Interfaces & Connectors
17
Frontpanel Connector
17
Internal Parallel Port Connector
18
Internal COM2 Connector
18
Internal USB Connector (2 X 2 Ports)
19
Internal USB Flash Drive Connector (1 Port)
19
Internal USB Stick Connector (1 Port)
19
Fan Connector
20
Power Supply Fan Connector
20
High Definition Frontpanel Audio Connector (HD Audio)
21
AC97 Frontpanel Audio Connector (Legacy Audio)
21
Power Supply Connector
22
Additional Power Supply Connector
22
GPIO Connector
23
Chassis Intrusion
24
4 System Monitoring
25
D307X-S: Temperature Sensors and Fan Connectors
26
D307X-S: Systemguard
27
D307X-S: Systemguard - Details
28
Silentfanconfigmanager - Customize System Monitoring Settings
29
Components for Continous Operation @ 60°C
32
Capacitor Endurance Time Comparison
33
Thermography D307X-S
34
Temperature Reference Points D307X-S
35
5 Power Supply
36
ATX Power Supply
36
6 Display Options
37
VGA Output
37
DVI Output
38
HDMI Output
39
Displayport Output
40
Dual DVI Output
41
Multi Monitor Output
42
7 Operating System Support
43
Support for Windows XP / Windows 7
44
Linux Status
45
8 Mainboard Tools
46
Common Mainboard Tools
46
BIOS Boot Logo Tool
46
Editcmos
46
Oemident
46
Systemguard
47
Industrial Tools
48
Silentfanconfig-Manager
48
Windows System-Monitoring API (BMCAPI)
48
Linux System-Monitoring Driver ("LM-Sensors")
48
9 Known Issues & Important Notes
49
Windows XP Installation in AHCI Mode - Necessary Adjustments
49
RAID / AHCI Driver Disk Installation (Windows XP) from Floppy Disk
50
10 Miscellaneous
51
System Watchdog (WD)
51
BIOS Update / BIOS Recovery
54
