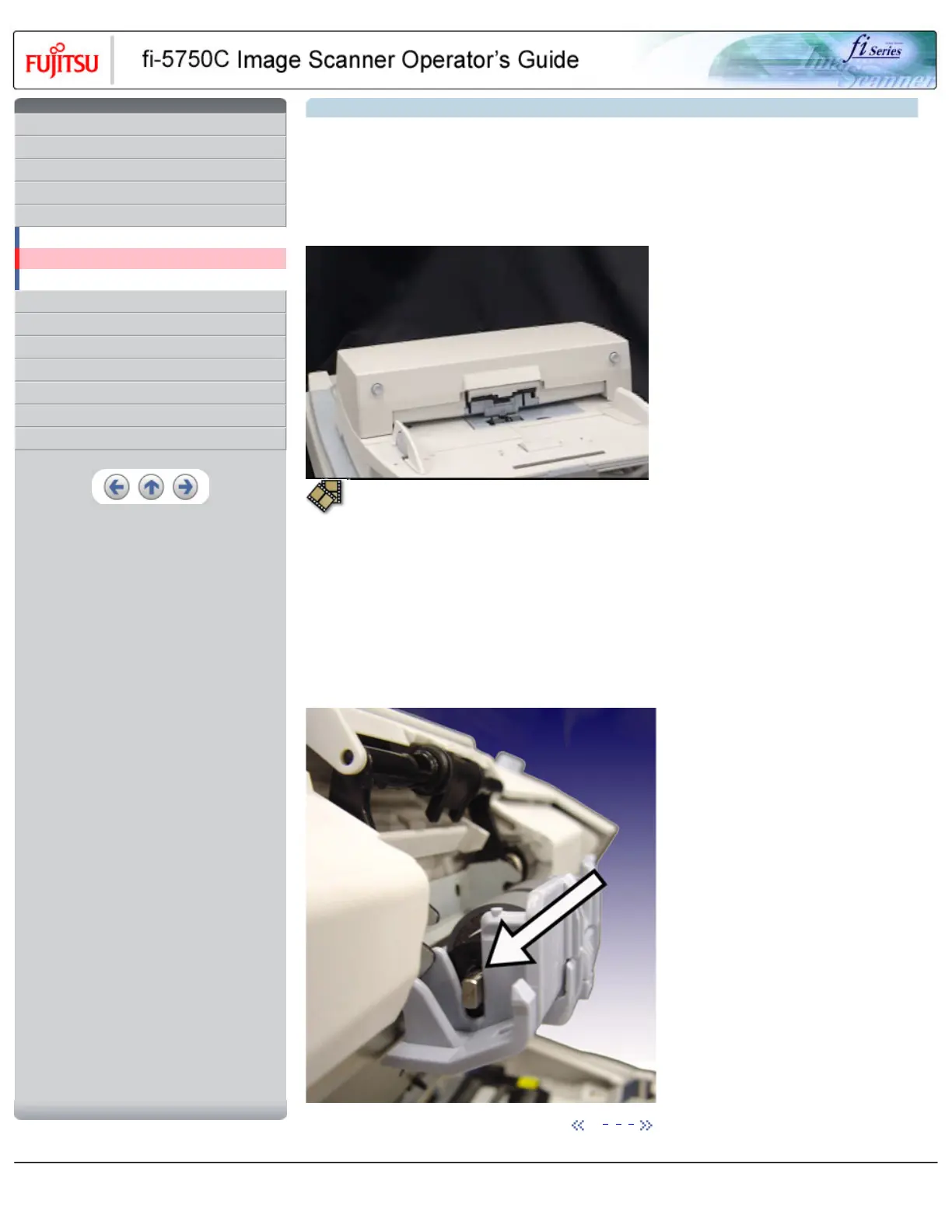

4.2 Cleaning the ADF
4.2.1 Cleaning the ADF using with a cloth moisten with Cleaner F1
Cleaning the Brake roller, Glasses, Sheet guides, Plastic rollers
1. Open the ADF while pushing the ADF button.
2. Using a cloth moisten with Cleaner F1, clean the Brake roller, Glasses, Sheet guides, Plastic rollers.
3. Close the ADF.
CAUTION
Be careful not to pinch your fingers with the ADF cover.
Be careful not to touch the glass surface inside the ADF because it becomes hot during the operation.
ATTENTION
Install the Brake roller aligning the flat part of the shaft to the holder.
Confirm that the Brake roller is installed completely. If not, document jams or other feeding errors may occur.
As a guideline, clean the ADF per 10,000 scans.
This value may vary depending on the type of document that you scan. For example, when you scan documents which toner is not
sufficiently fixed, the scanner must be cleaned more frequently.
