TX140 S1
Operating Manual
63
Starting up and
operatio
n
6.2.1.1
ID card

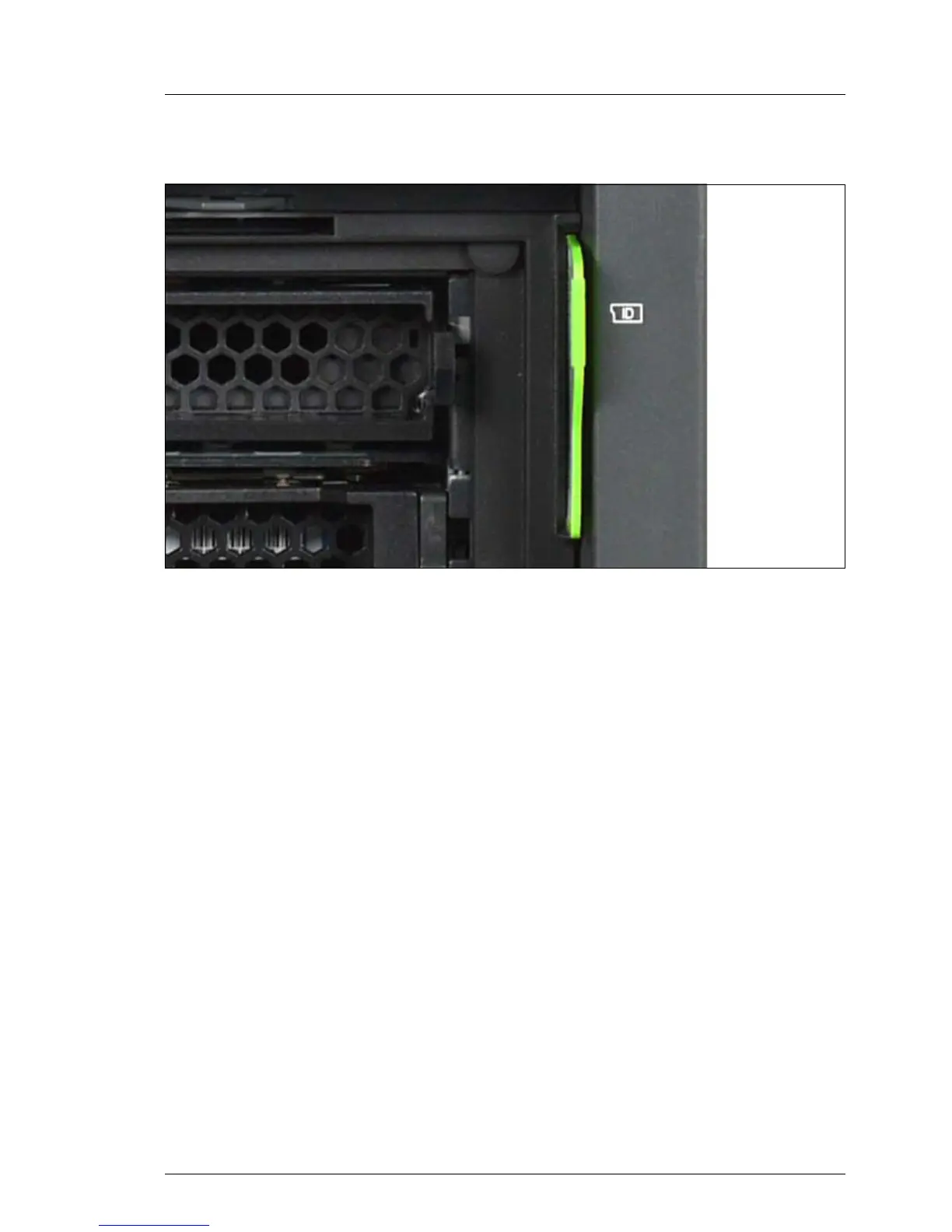

Figure 9: ID c
ard
Y
ou can pull out the ID card as far as it will go and push it back
again.
The ID card contains
various system information, such as the product name,
serial number
, order
number
,
MAC addresses and DNS name (in the Japanese
market, only the product name and the s
erial number).
62
64
Table of Contents
Default Chapter
2
Copyright and Trademarks
2
Table of Contents
7
1 Introduction
11
Concept and Target Groups for this Manual
11
Documentation Overview
12
Notational Conventions
14
2 Functional Overview
15
Features
15
Server Specification
24
3 Installation Steps, Overview
31
4 Important Information
33
Safety Instructions
33
Energy Star
41
CE Conformity
41
FCC Class a Compliance Statement
42
Transporting the Server
43
Notes on Installing the Server in the Rack
44
Environmental Protection
45
5 Hardware Installation
47
Unpacking the Server
48
Setting up the Floorstand Model
49
Installing/Removing the Rack Model
50
Rack System Requirements
50
Mounting the Server in the Rack
53
Connecting Devices to the Server
54
Connecting the Server to the Mains
55
Using Cable Ties
56
Notes on Connecting/Disconnecting Cables
57
6 Starting up and Operation
59
Access to the Drives (Floorstand Model)
59
Enabling Access to the Accessible Drives
59
Enabling Access to the HDD Modules
61
Control Elements and Indicators
62
Front of the Server
62
ID Card
63
Control Elements
64
Indicators on the Control Panel
65
Indicators on the Drives
66
Rear of Server
68
Indicators on the Connector Panel
68
Switching the Server on and off
71
Configuring the Server
74
Configuring the Onboard SATA Controller
74
Configuring the SAS/SATA RAID Controller
75
Configuring the Server and Installing the Operating System with the Serverview Installation Manager
76
Configuring the Server and Installing the Operating System Without the Serverview Installation Manager
77
Cleaning the Server
78
7 Property and Data Protection
79
BIOS Setup Security Functions
79
8 Troubleshooting and Tips
81
Power-On Indicator Remains Unlit
81
Server Switches Itself off
82
Screen Remains Blank
82
Flickering Stripes on Monitor Screen
83
No Screen Display or Display Drifts
83
No Mouse Pointer Displayed on Screen
83
Incorrect Date and Time
84
Drives Reported as "Dead" When Starting System
84
Added Drive Reported as Defective
84
Error Message on Screen
85
Expansion Cards or Onboard Devices Not Recognized
85
Temperature Warning
85
No Effect of Keyboard or Mouse
85
Optical Drive Cannot Read Data
86
