5.4 Connecting devices to the server
The connectors for external devices are on the front and rear of the server. The
additional connectors available on your server depend on the expansion cards
installed. For further information refer to the “PRIMERGY TX140 S2 Server
Upgrade and Maintenance Manual”. The standard connectors are indicated by
symbols and color coding:

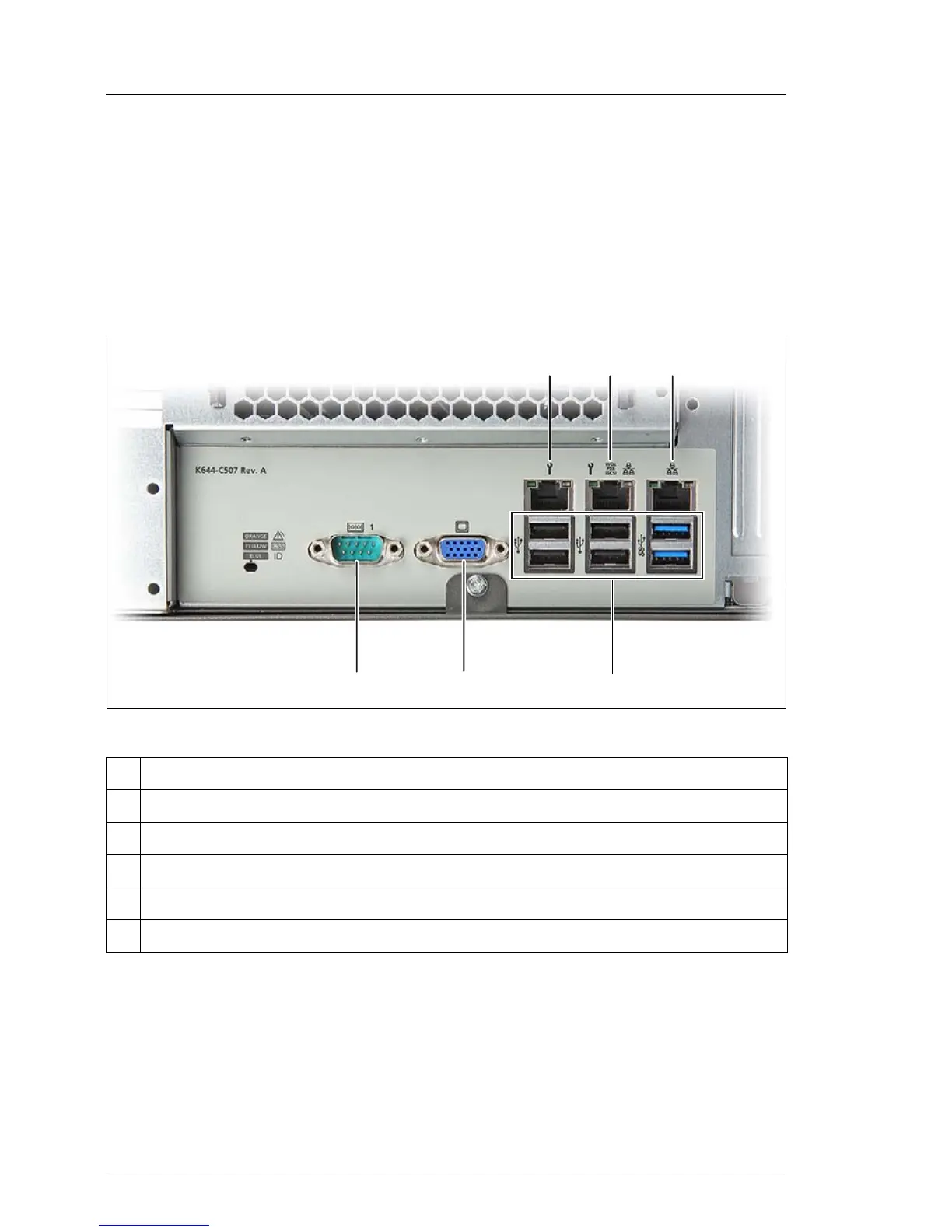

Figure 2: Connector panel on the rear side
I Some of the devices that can be connected may require special drivers
(see the documentation for the connected device).
Ê Connect the data cables to the server and peripherals.
Two additional USB 3.0 connectors are located on the front of the server (see
figure 8 on page 62).
1 Service LAN connector
2 Shared LAN connector
3 Standard LAN connector
4 6 USB connectors: 4x USB 2.0 (black); 2x USB3.0 (blue)
5 Video connector (blue)
6 Serial connector COM1 (turquoise)
