7.2 Replacing the Pad ASSY
Replace the Pad ASSY following the procedure below.
1. Remove the documents on the paper chute.
2. Pull the cover open lever to open the ADF.
3. Remove the Pad ASSY.

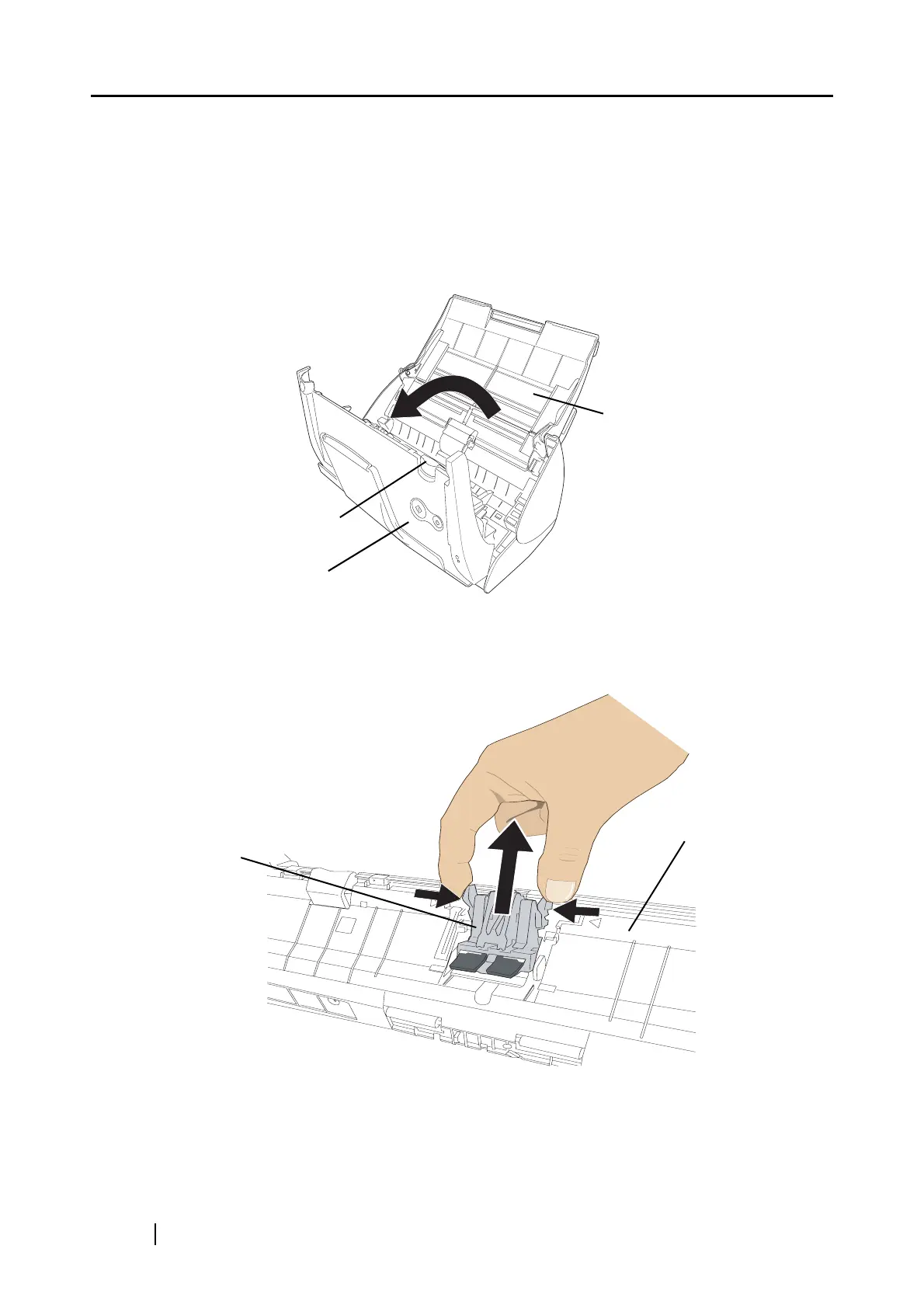

Pinch both ends of the Pad ASSY and pull it out as shown below.
ADF
Cover open lever
Paper chute
Pad ASSY
ADF
