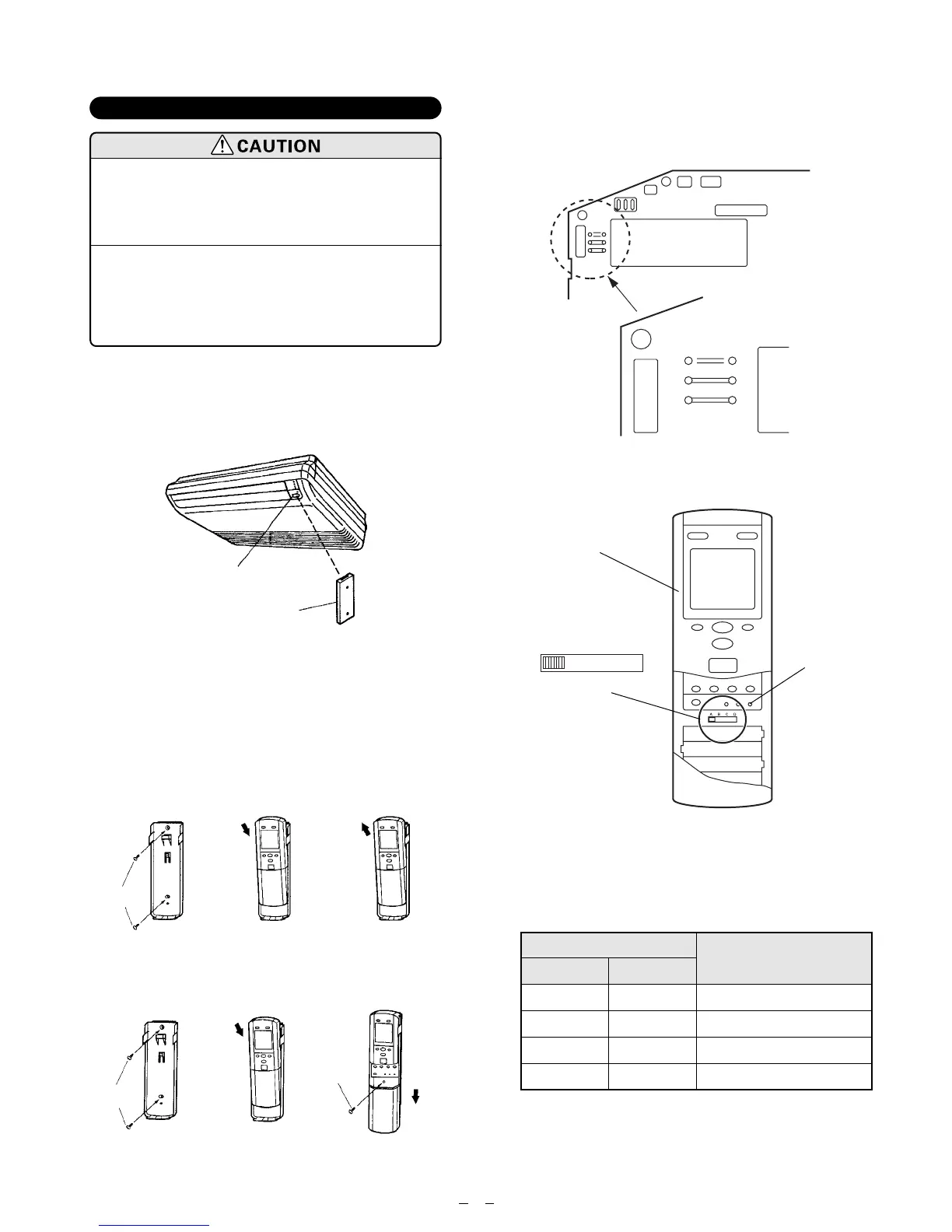

10. REMOTE CONTROL UNIT INSTALLATION
(1) Check that the indoor unit correctly
receives the signal from the remote
control unit, then install the remote
control unit holder.
(2)
Select the remote control unit holder
selection site by paying careful attention
to the following: Avoid places in direct
sunlight. Select a place that will not be
affected by the heat from a stove, etc.
1. REMOTE CONTROL UNIT HOLDER
INSTALLATION
• Install the remote control unit so that the front is fac-
ing the photocell. (Fig. 42)
Fig. 42
Photocell
Remote control unit
• Install the remote control unit with a distance of 7m
between the remote control unit and the photocell
as the criteria. However, when installing the remote
control unit, check that it operates positively.
• Install the remote control unit holder to a wall, pillar,
etc. with the tapping screw. (Fig. 43)
Fig. 43
Screws
Insert
Slide up
q Mount the Holder.
w Set the Remote
Control Unit.
e To remove the
Remote Control
Unit (when use
at hand.)
For use as Wall Fixing Type
Screws
Insert
Slide
q Mount the Holder.
w Set the Remote
Control Unit.
e Attach the unit
to the holder as
shown.
Screws
For use as Handy Type
2. REMOTE CONTROL UNIT CODE SWITCHING
If the jumper wires (JM2 and JM3) are installed onto
the control panel, the signal can be adjusted using the
remote control unit signal selector switch.
After setting the remote control unit signal selector
switch, press the ACL button.
Jumper wire
JM 2 JM 3
Connect Connect
Remote control unit
signal selector switch
A (Primary setting)
Connect Disconnect B
Disconnect Connect C
Disconnect Disconnect D
Table 6
JM1
JM2
JM3
JM1
JM2
JM3
AUTO RESTART
REMOTE CONTROL 2
REMOTE CONTROL 1
Remote control unit
Remote control unit signal
selector switch
Indoor unit
Printed circuit board
ACL button
ABCD
Fig. 44
