Fujitsu Waterstage Comfort 5 User Manual

2.2 End of life of the device
Disassembly and recycling shall be handled by a
qualied body. Wild disposal is strickly prohibited.
At the end-of-life of the equipment, please contact
your installor or any local representant to proceed to
disassembly and recycling.

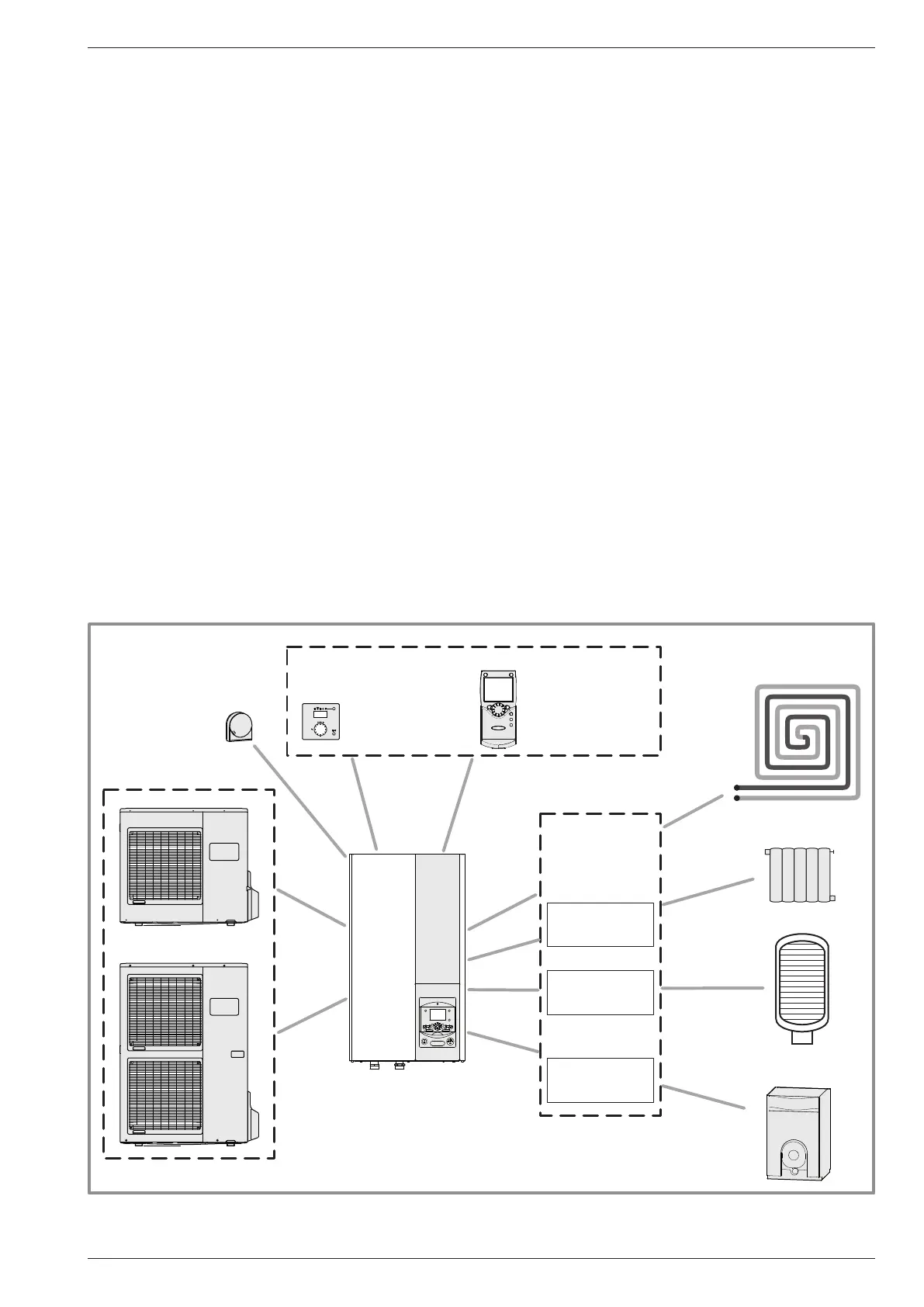

gure 1 - Overall view of the conguration of a complete installation
Outdoor
sensor
Room thermostat
or T55
T58
Room control unit
T75 or T78
Heating circuit
Floor heating system
Heating circuit
Radiators
DHW tank with electrical
back-up heating
Boiler
Options
depending
on the system
congurations
2nd circuit kit
DHW kit
Boiler connexion
kit
The hydraulic unit
The outdoor unit
Control
options
or/and
or
2.3 Overall view of the installation
Your heat pump has been congured by your installer. It
is composed of the following main elements:
- The outdoor unit is positioned, as its name indicates,
outdoor your dwelling and extracts energy from the
outdoor air.
- The hydraulic unit positioned in your boiler room, cellar,
garage or even your kitchen, transfers the energy to
the heating circuit (and the domestic hot water).
- The outdoor sensor detects the outdoor temperature.
Optional equipment:
- Room thermostat.
- Room control unit.
Heat pumps are systems that can be connected to any
form of low temperature heat distribution systems :
the heat captured by the heat pump can therefore be
used in different ways:
- Floor-heating systems.
- Radiators or fan coil heaters.
- Domestic hot water (DHW).
Operation manual "1534 - EN"
- 5 -
Air to Water Heat Pump Split system
Outdoor
sensor
Room thermostat
(wired or radio)
Remote control
(wired or radio)
Heating circuit
Floor heating system
Heating circuit
Radiators
DHW tanks
with electrical back-up
Boiler
Options
depending
on the system
congurations
2nd circuit kit
Boiler connexion
kit
DHW kit
Hydraulic unit
Outdoor unit
OR
Control options
or/and
