1.5 Description
Installation and operating manual “1350-EN” 11
Heat pump, Split, single service

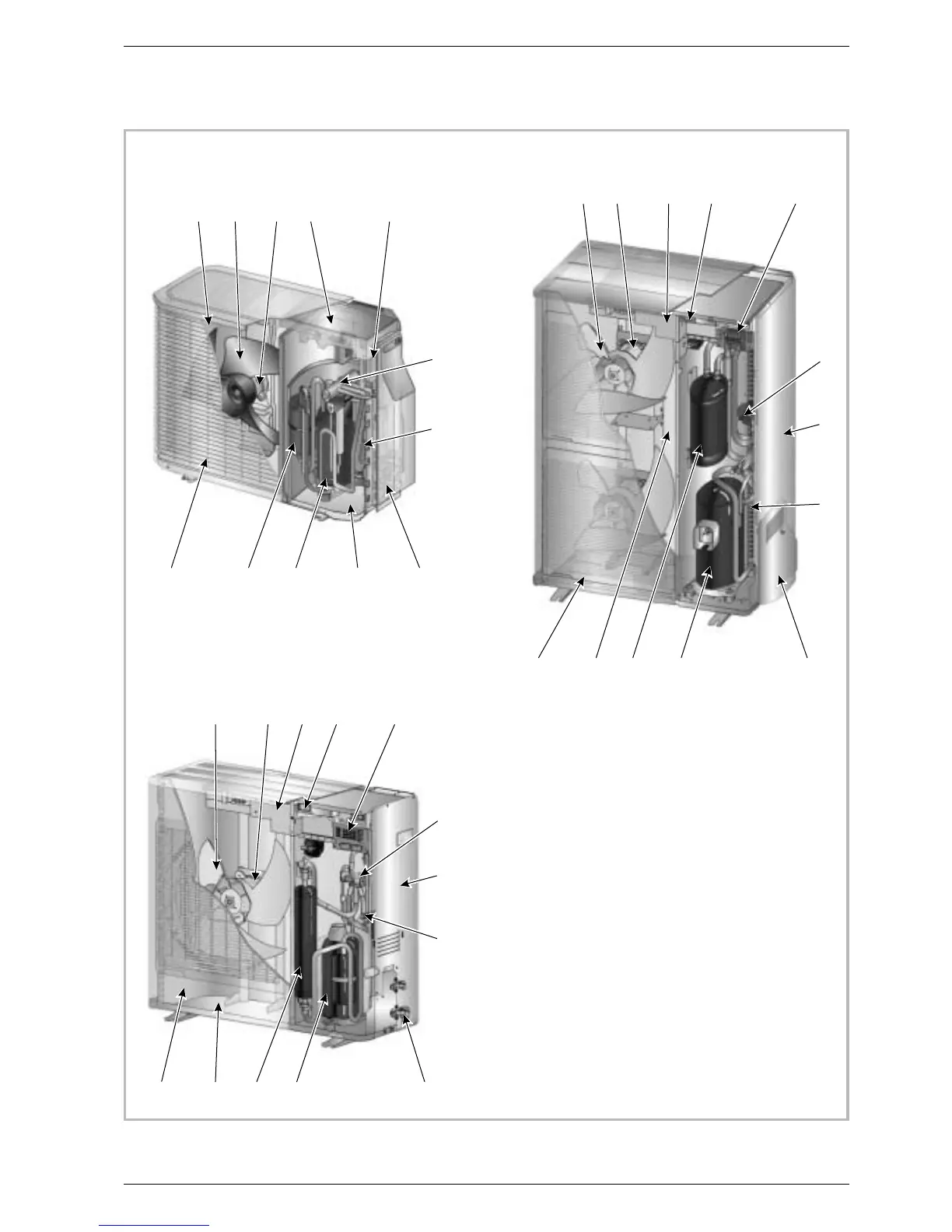

Figure 7 - Outside unit components
F
Model 050, 065, 080
F
Model 128, 155
13
1 2
12 1110
9
8
7
6
5
4
3
13
1 2
12 1110
9
8
7
6
5
3
F
Model 095
13
1 2
12 1110
9
8
7
6
5
4
3
Legend
1 - Low-noise, high-output coil
2 - Electric variable speed "inverter" motor
3 - "Inverter" control module
4 - Vacuum start (pump down) and control light
5 - Connection terminal blocks (power and
interconnection)
6 - Refrigerant accumulator bottle
7 - Cycle reversing valve
8 - Anti-corrosion treated bodywork
9 - Electronic expansion valve
10 - Noise and temperature insulated "inverter"
compressor
11 - Refrigeration connection valves (flared
connectors) with protective caps
12 - Holding tank with condensate drain hole
13 - High-performance exchange surface
evaporator; anti-corrosion treated hydrophilic
aluminium fins and grooved copper tubes.
