Furuno FMD-3300 Installation Manual

1. MOUNTING
1-5
1.3.2 How to mount the processor unit
Use six bolts (M6, local supply) to mount the processor unit.

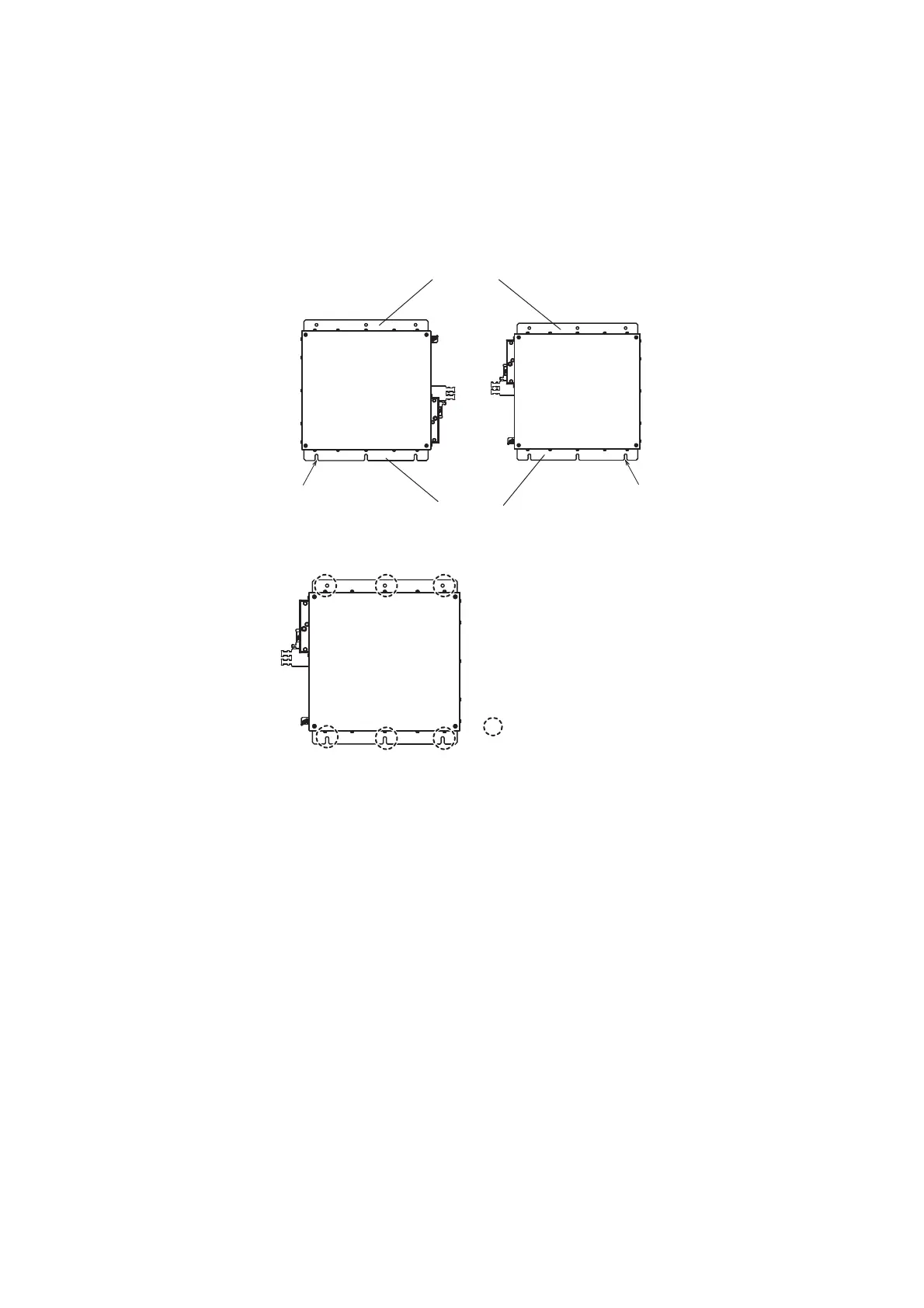

1. Use 10 binding head screws (M4x8, supplied) to attach the chassis bases 1 and
2 to the processor unit.
Note: For bulkhead mounting, attach the chassis base 2 so that the notches on it
are facing the deck.
2. Use six bolts (M6, local supply) to fix the processor unit.
Chassis base 1
Chassis base 2
Notches
Notches
: Bolt holes (notches)
