ii

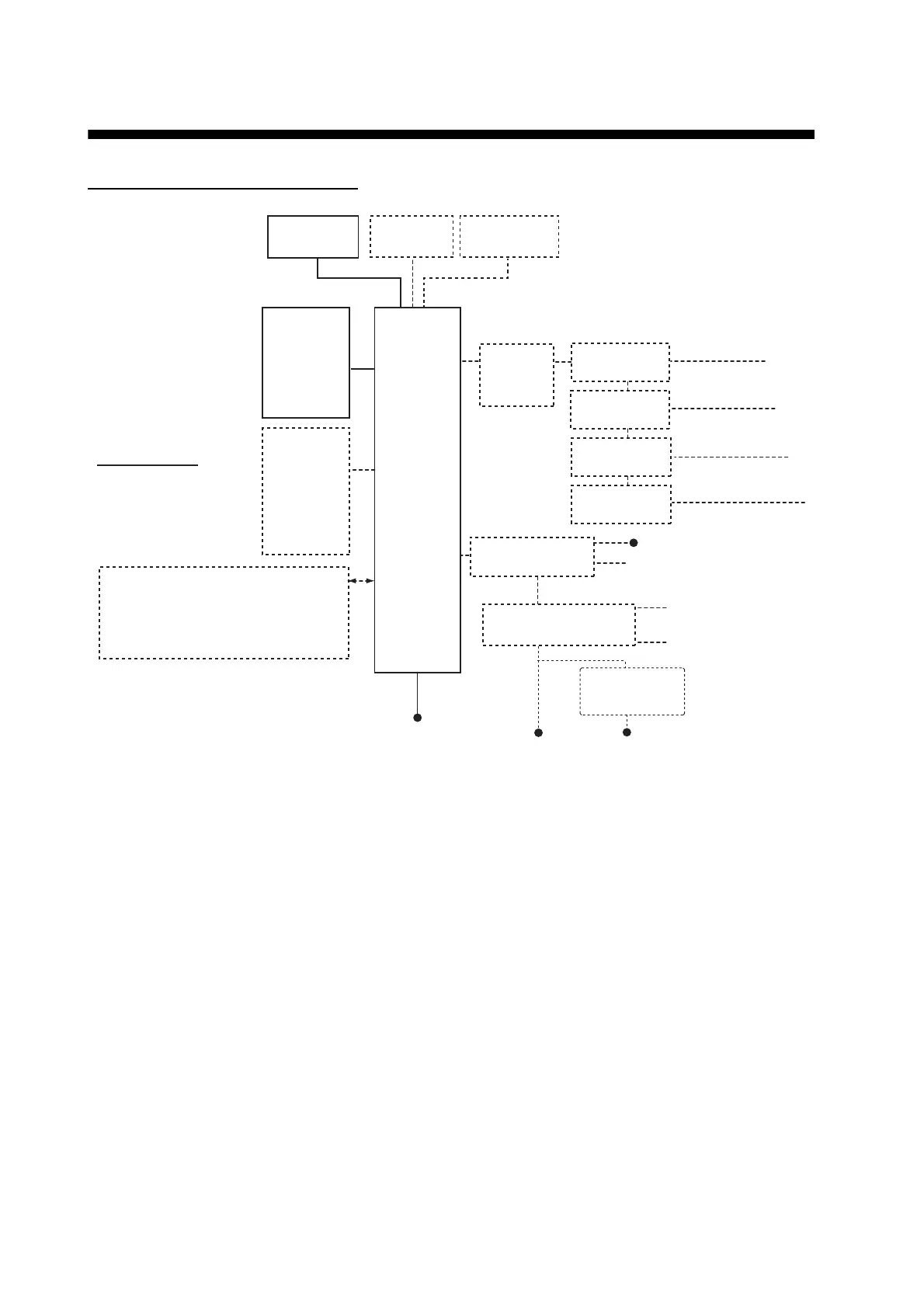

SYSTEM CONFIGURATION
System with one processor unit
*1
: For the monitors available for connection with the ECDIS, see page iv.
*2: When the network complies with IEC 61162-450 Ed.1, the Switching Hub HUB-100 can also
be used. (FMD-3200/3200-BB/3300 only)
Note: When using the EC-3000/3005 as an AMS device, connect an emergency power supply, in
addition to the main power supply.
Dashed lines indicate
optional or local supply
equipment.
Intelligent
HUB
HUB-3000
*2
Sensor Adapter
MC-3010A
Sensor Adapter
MC-3020D
Sensor Adapter
MC-3030D
Serial interface
Analog interface
Digital IN interface
Digital OUT interface
Category of units
All units protected
from the weather.
Sensor Adapter
MC-3000S
100-115/220-230 VAC,
1ø, 50/60 Hz
ECDIS
Control Unit
RCU-024
or
Trackball
Control Unit
RCU-026
ECDIS
Control Unit
RCU-024
or
Trackball
Control Unit
RCU-026
(Max. 2)
100-115/200-230 VAC
1ø, 50/60 Hz
24 VDC
Intelligent HUB
HUB-3000
Radar 1
Radar Connection Box
RCB-002
Radar 2
100-230 VAC
Gateway network equipment
(radar, ECDIS, etc.)
AC/DC Power
Supply Unit
PR-240/241
IF Signal:
- Serial Interface ×4 (IEC 61162-1/2)
- Serial Interface ×4 (IEC 61162-1)
- Digital Out ×6
(power fail/system fail/ NO ×2, NC ×2)
- Digital In (ack in)
Monitor Unit
*1
(Conning Monitor)
Monitor Unit
*1
(Main Monitor)
Monitor Unit
*1
(Sub Monitor)
PROCESSOR
UNIT
EC-3000
(
FMD-3200/
3200-BB/3300
)
OR
EC-3005
(
㻲MD-3005
)
To Next Page
