Original Bedienungsanleitung FUXTEC FX-MS152 / FX-MS162_de_en_fr_ita_rev16
44

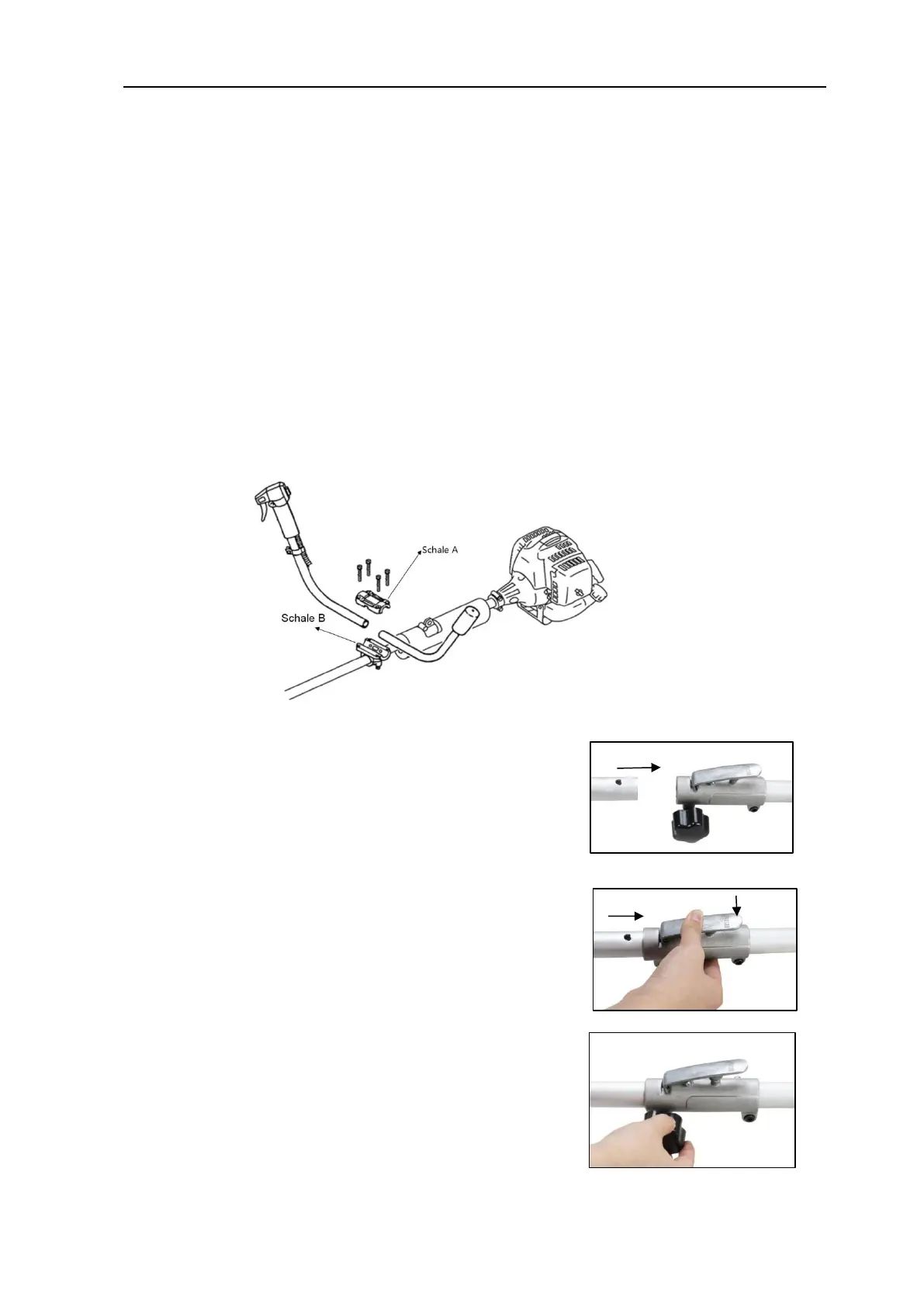

28. Mounting the device
Attaching the handle
The handle must be fitted before use.
Follow the illustrations below for correct installation.
Mounting the handle tube for use
Place cup B up and down on the shaft tube, screw both cups and the shaft tube together.
Place the handle in the provided clamping bush, which is already attached to the shaft
tube. Now place the other shell on top and screw both half-shells and the grip tube
together. Please pay attention to the "Component Overview" in chapter 7 to ensure that
the handle is in the correct position!
Mounting the drive axle
1). Place the drive axle against the main shaft so that
the hole of the axle is aligned with the locking pin of the
connecting piece.
2). Actuate the locking pin and insert the drive axle into
the main shaft. Release the locking pin and ensure that
the locking pin engages in the hole.
3). Turn the wing screw clockwise to secure the
connection.
