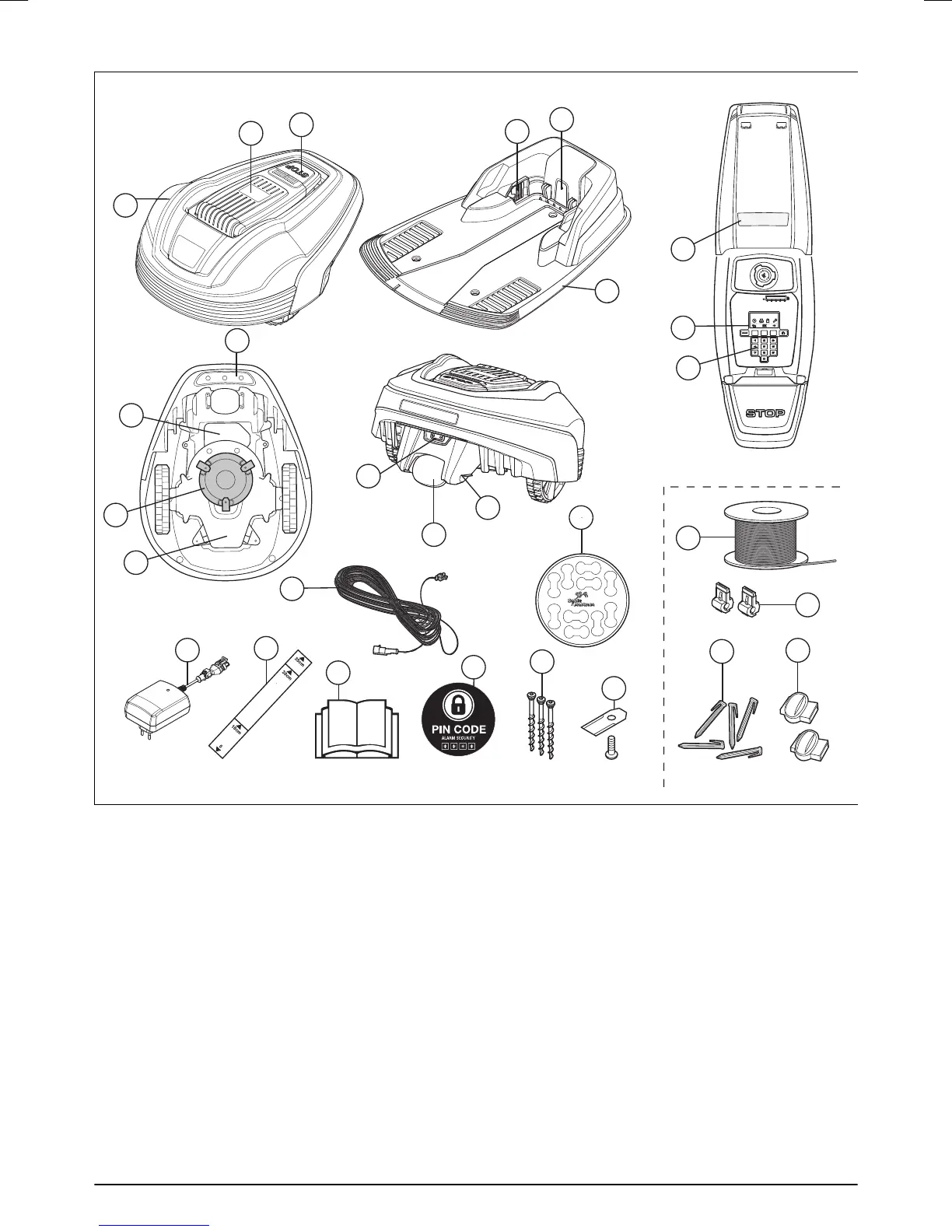

The numbers in the figure represent:
1. Body
2. Hatch to display, keypad and cutting height
adjustment
3. Stop button
4. Contact strips
5. LED for operation check of the charging station,
boundary wire and guide wire
6. Charging station
7. Carry handle
8. Battery cover
9. Blade disc
10. Chassis box with electronics, battery and motors
11. Main switch
12. Rear wheel
13. Charging strip
14. Keypad
15. Display
16. Rating plate
17. Loop wire for boundary loop and guide wire
18. Connector for connecting the loop wire to the
charging station
19. Pegs
20. Coupler for the loop wire
21. Screws for securing the charging station
22. Extra blades
23. Operator’s Manual and Quick Guide
24. Measurement gauge for help when installing the
boundary wire (the measurement gauge is broken
loose from the box)
25. Power supply (the appearance of the power supply
may differ depending on market)
26. Low voltage cable
27. Alarm decal
28. Cable markers
