Garmin Apollo SL30 COMM User Manual

Installation
26 Apollo SL30 Installation Manual

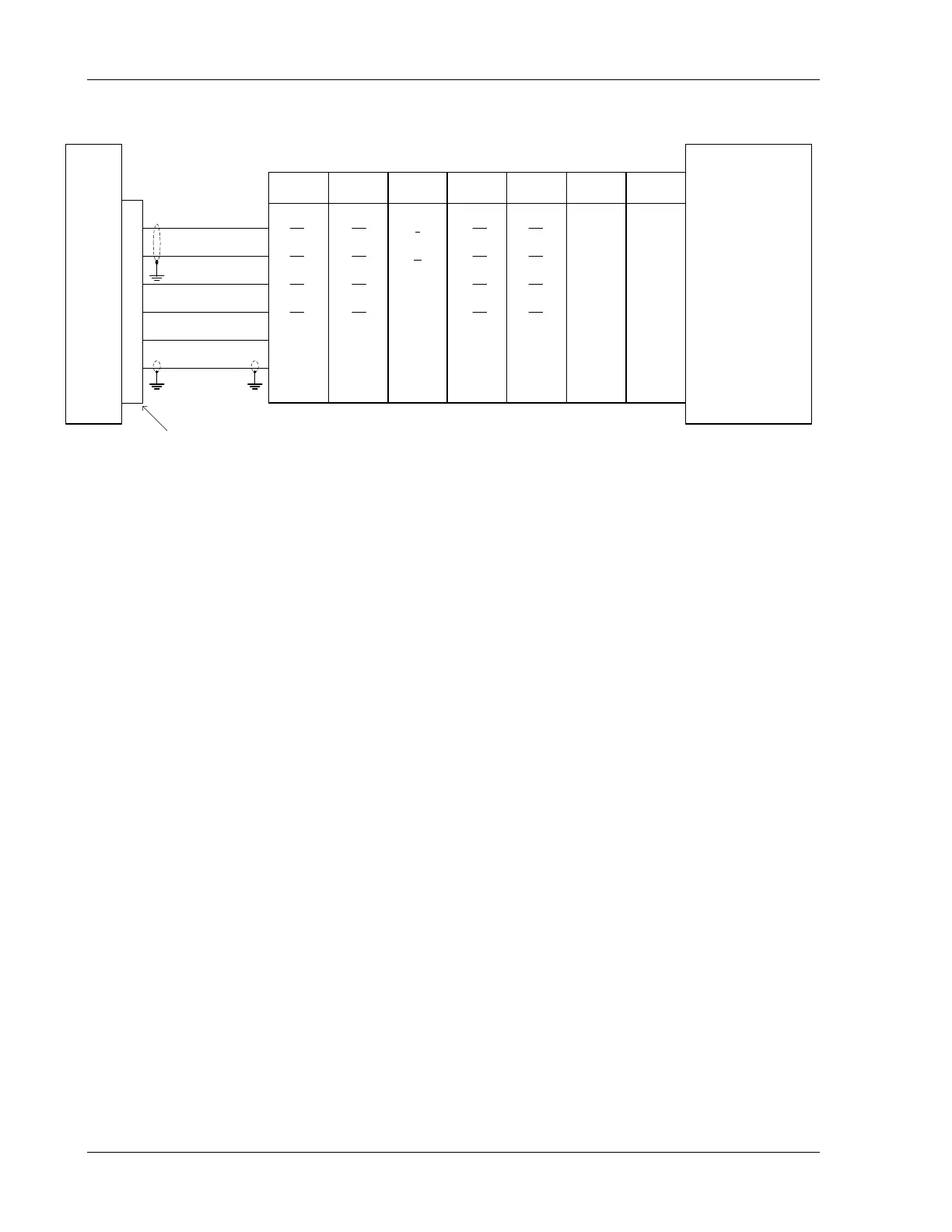

Figure 16 - SL30 NAV to Bendix/King KN72/203/204/208/208A/209/209A Wiring
Bendix King
Nav Converter
+GS Flag
-GS Flag
GSI Down
GSI Up
Glideslope Deviation +Flag
30
31
28
32
ILS Enbl
Composite
33
19
ILS Energize
VOR/LOC Composite In6
S
NOTES:
1. Connect shield grounds to aircraft chassis with as short a conductor as practical.
2. Refer to Limitations on Using Composite Signal paragraph in this chapter.
Glideslope Deviation -Flag
Glideslope Deviation +Up
Glideslope Deviation +Down
Bendix/King
KN 72
Bendix/King
KN 209
Bendix/King
KN 208A
Bendix/King
KN 208
Bendix/King
KN 204
Bendix/King
KN 203
Bendix/King
KN 209A
J
H
m
Y
K
k
Y
8
2
4
6
10
12
9
6
2
4
3
24
25
28
6
10
29
SL30
37-Pin Connector
3. Not all indicator connections are shown, only those interfacing to the SL30. Consult the
appropriate installation manuals for complete wiring instructions.
