Mounting the Wired Remote Control
1 At the mounting location, use a 57mm (2.25in.) hole saw to cut through the mounting surface.
2 Apply marine sealant around the cutout (optional).
3 Place the gasket on the back of the remote control.
4 Feed the attached cable through the cutout.
5 Place the remote control in the cutout.
6 Secure the remote control to the mounting surface using the mounting nut.
7 Route the cable away from sources of interference.
8 Connect the cable to the port on the BB100 black box.
Connection Considerations
The stereo must be connected to power, to speakers, and to media input sources to function correctly. You
should carefully plan the layout of the stereo, wired remote, speakers, optional NMEA 2000
®
network, and your
input sources before making any connections.

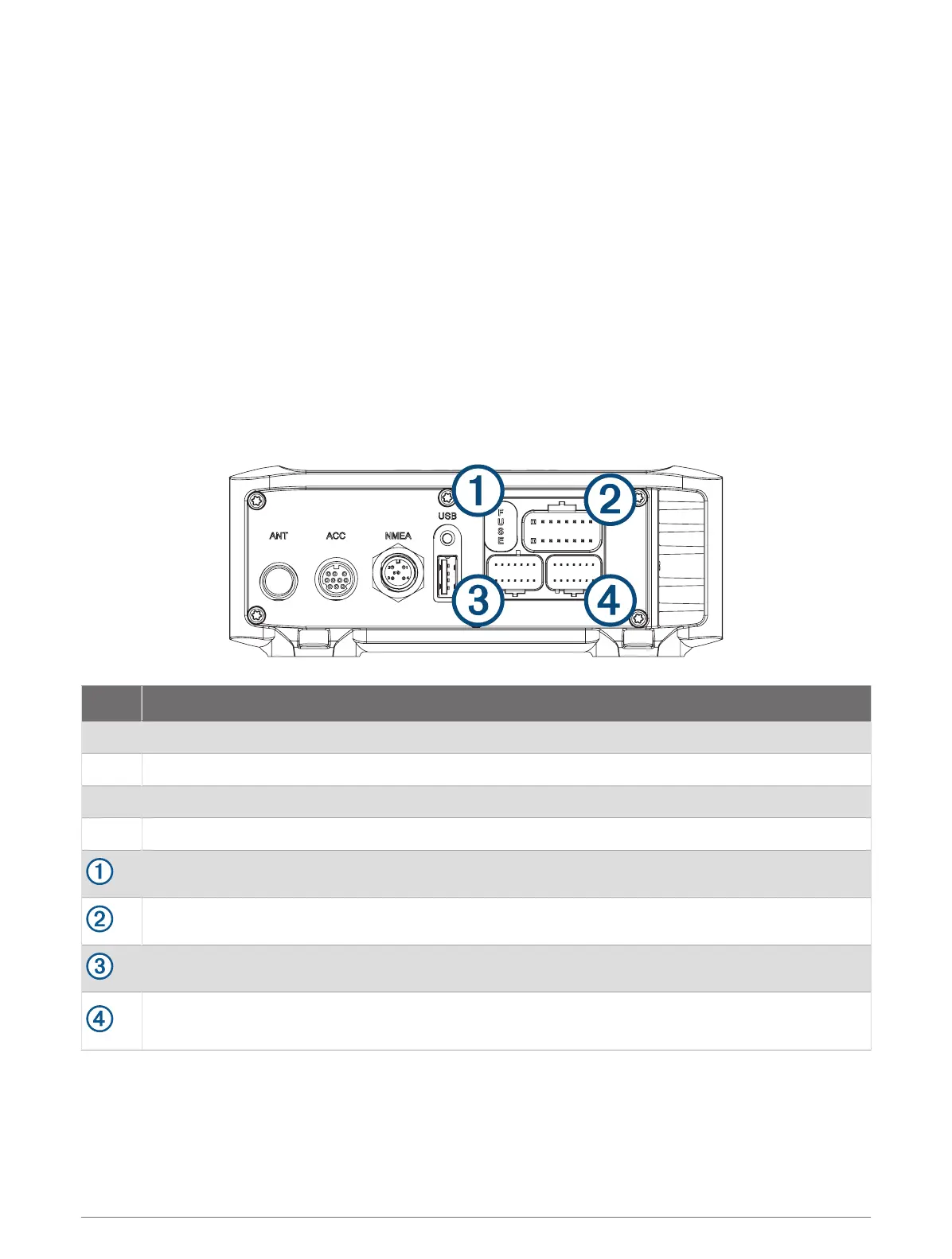

Port Identification
Port Connects to
ANT External AM/FM antenna
ACC Connects to a Fusion DAB module to receive DAB stations where available (not included).
NMEA NMEA 2000 network
USB USB-compatible media device
15Afuse
Power and speakers
Subwoofer, zone 1, zone 2, and auxiliary device
Remote control
NOTE: You must connect the remote control to the stereo for the stereo to function properly.
Fusion BB100 Installation Instructions 3
