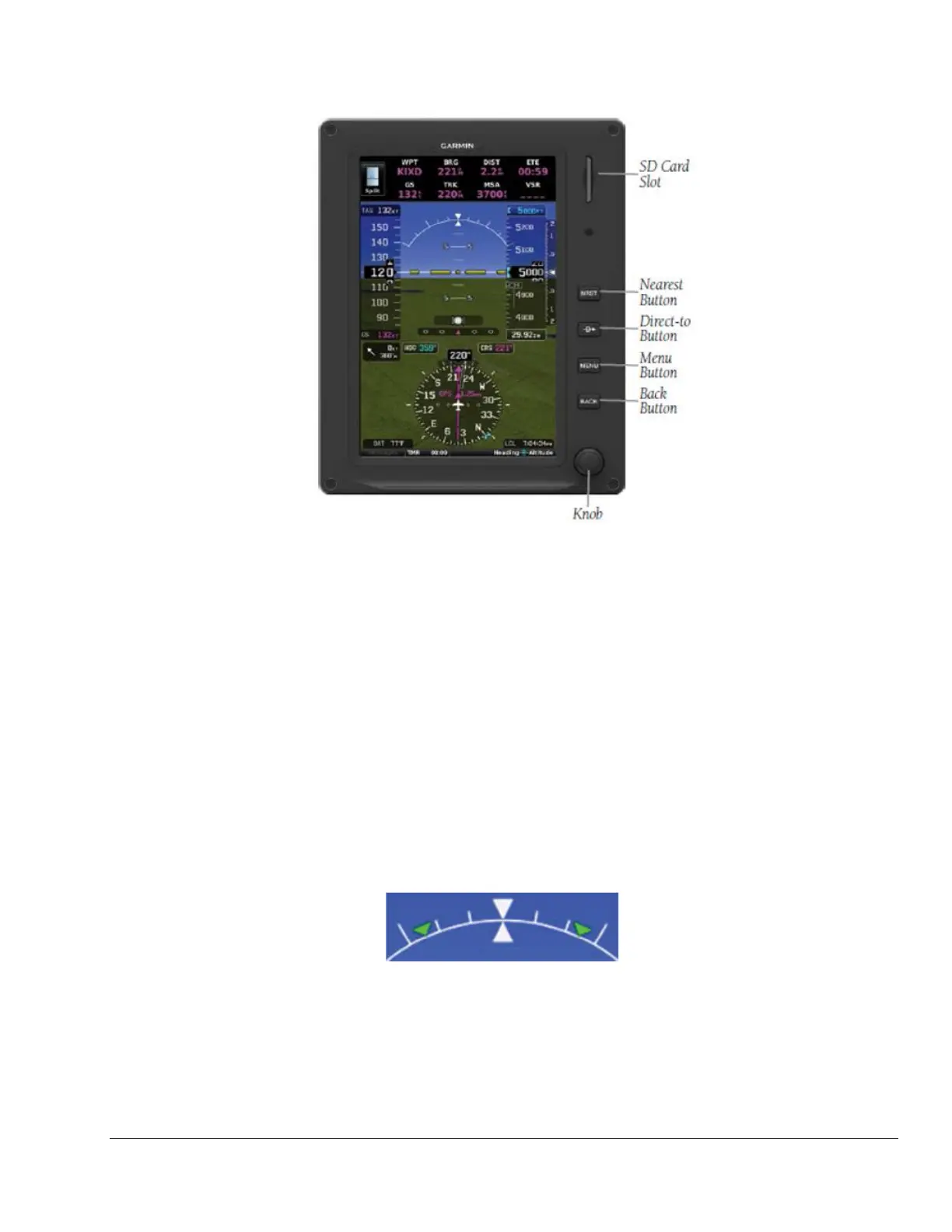

Bezel Overview (GDU 470)

NRST

Key

Press to display the Nearest Page for viewing the nearest airports,

intersections, NDBs, VORs, waypoints, frequencies, and airspaces

Direct-

To Key

Press to activate the Direct-To function, enter a destination waypoint establish

a direct-to course to the selected destination

Key

Press once to view the Page Menu Press twice to view the Main Menu

Press a third time to clear the Main Menu

enabled.

BACK

Key

Press to return to the previous screen

Press and hold to return to the default MFD Page

The Standard Rate Turn Bank Angle Pointers are green pointers displayed on the roll scale that show

the bank angle corresponding to a standard rate turn.

Standard Rate Turn Bank Angle Pointers

The Turn Rate Indicator is located at the top of the HSI. Tick marks to the left and right of the displayed

heading denote standard turn rates (3 deg/sec). A magenta Turn Rate Trend Vector shows the current

turn rate. The end of the trend vector gives the heading predicted in 6 seconds, based on the present

turn rate. A standard-rate turn is shown on the indicator by the trend vector stopping at the standard
