GE 20338 User Manual

12

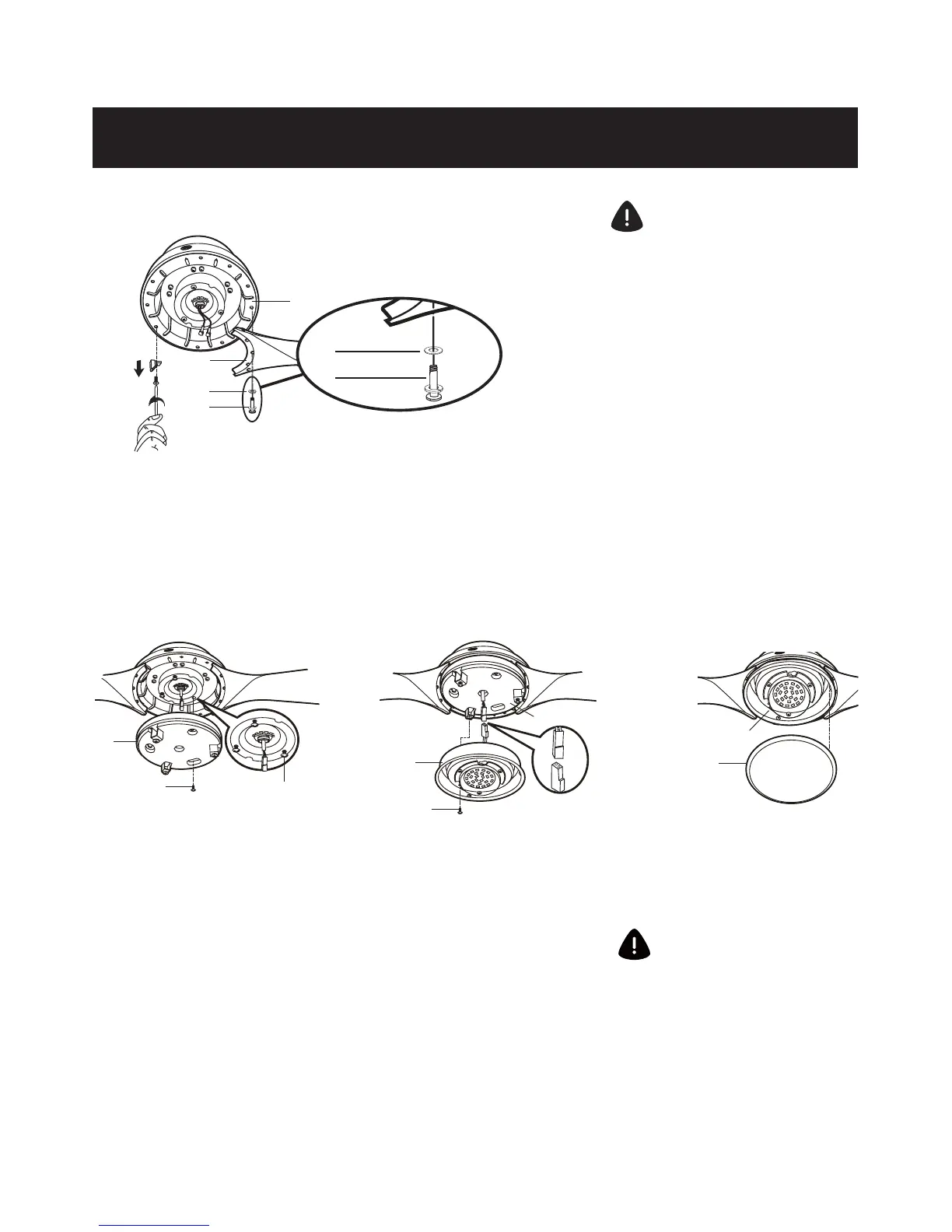

Fan installation
ATTACHING THE FAN BLADES
INSTALLING THE LIGHT KIT
1.
Remove and discard the preassembled plastic motor blocks and screws.
Fasten blade (P) to fan motor assembly (V) using the screws (with spring
washer) (F) and blade flat
washer (G) supplied.
Repeat this procedure with remaining blade assemblies.
1.
Remove 1 of 3 mounting plate screws
(EE) from the mounting ring and loosen
the other 2 screws. (Do not remove)
Place the keyholes on the mounting
plate (W) over the 2 screws previously
loosened from the mounting ring. Turn the
mounting plate (W) until it locks in place at the
narrow section of the key holes. Secure
by tightening the 2 s crews previously
loosened and the one previously removed.
2.
Remove 1 of 3 light kit mounting screws
(FF) from the mounting plate (W) and
loosen the other 2 screws. (Do not remove)
Lift the light kit (Y) up to the framed
mounting plate (W), make the 2-pin wire
connections:
-Blue to blue
-White to white
Place the key holes on the LED light kit
(Y) over the 2 screws previously loosened
from the mounting plate (W), turn LED
light kit (Y) until it locks in place at the
narrow section of the key holes. Secure
by tightening the 2 s crews previously
loosened and the one previously removed.
3.
Raise the glass shade (Z) up against the
LED light kit (Y) and secure it to the fan by
twisting the glass shade (Z) clockwise until
snug. Do not overtighten.
NOTE: Before starting
installation, disconnect the
power by turning off the circuit
breaker or removing the fuse
at fuse box. Turning power
off using the fan switch is not
sufficient to prevent electric
shock.
Z
Y
EE
W
EE
W
FF
Y
WARNING: Make sure to fully secure
the glass shade in place by turning
the shade clockwise until it is locked
in place and can no longer be rotated.
V
G
P
F
G
F
