GE Bently Nevada 330400 User Manual

Section 6 - Accessories and Spare Parts
PART NUMBER 130539 - (SEE NOTE)
CONNECTOR
18 AWG CABLE
PLASTIC CLAMP
BOOT
0.196 (5 mm)
7
4.00
(101.6 mm
NOTE
CUSTOMER I.D
BNC PN "A" WHT
"El" RED
--=.1 2.50
(63.5 mm)
INCREMENTS OF 1.0 FOOT (0.30 Metres)
EXAMPLE: 11121 = 12 FEET (3.66 Metres)
12151 = 25 FEET (7.62 Metres)
MIN LENGTH = 2.0 FEET (0.61 Metres)
MAX LENGTH = 99 FEET (30.18 Metres)
•ALL DIMENSIONS ARE IN INCHES (MILLIMETRES) UNLESS OTHERWISE SPECIFIED
"C" BLK

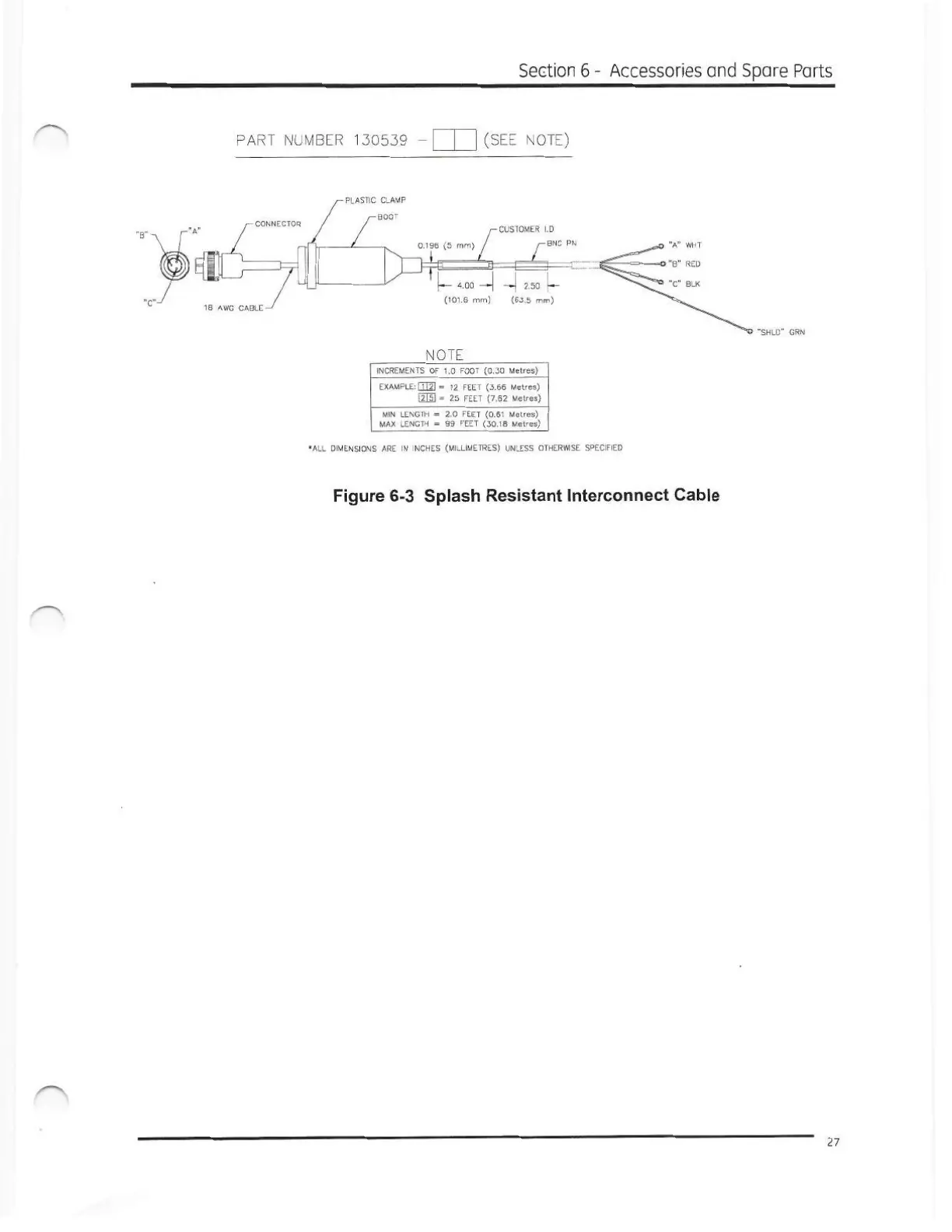

Figure 6-3 Splash Resistant Interconnect Cable
SHLD" GRN
27
