– 42 –
Pin
Pin

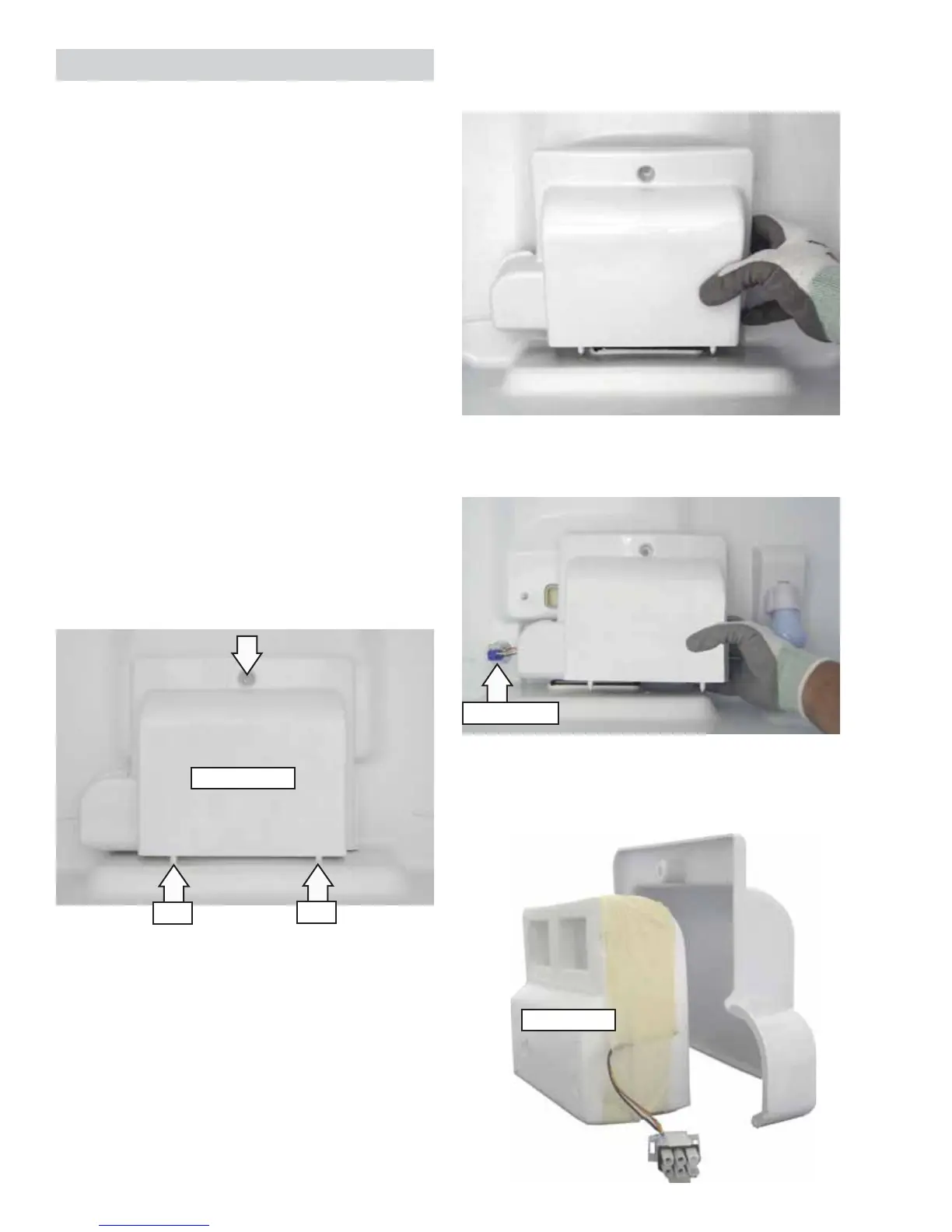

Damper Duct Assembly
Model PFSF2
A motorized damper duct assembly is used to
control airfl ow from the freezer into the fresh food
compartment. It is located on the back wall of
the fresh food compartment, behind the fruit and
vegetable crisper drawers. The damper assembly
consists of a 12-VDC motorized damper sealed
inside the styrofoam damper duct, inlet and outlet
gaskets, and a plastic cover. The assembly is held
in place with one 1/4-in. hex-head screw at the top,
and 2 pins at the bottom that fi t into the liner.
To remove the fresh food damper:
Remove the fruit and vegetable crisper drawers 1.
and the crisper drawer cover and frame
assembly.
Caution: The glass inserted in the crisper drawer
cover and frame may easily separate. Care should
be taken when removing the crisper drawer cover
and frame assembly.
Remove the 1/4-in. hex-head screw from the top 2.
of the damper cover.
Damper Cover
3. Tilt the damper assembly toward the front of the
refrigerator, then pull up the damper assembly.
4. Disconnect the damper motor wire harness.
5. Separate the damper duct from the damper
cover.
Wire Harness
Damper Duct
(Continued next page)
To Next Page
