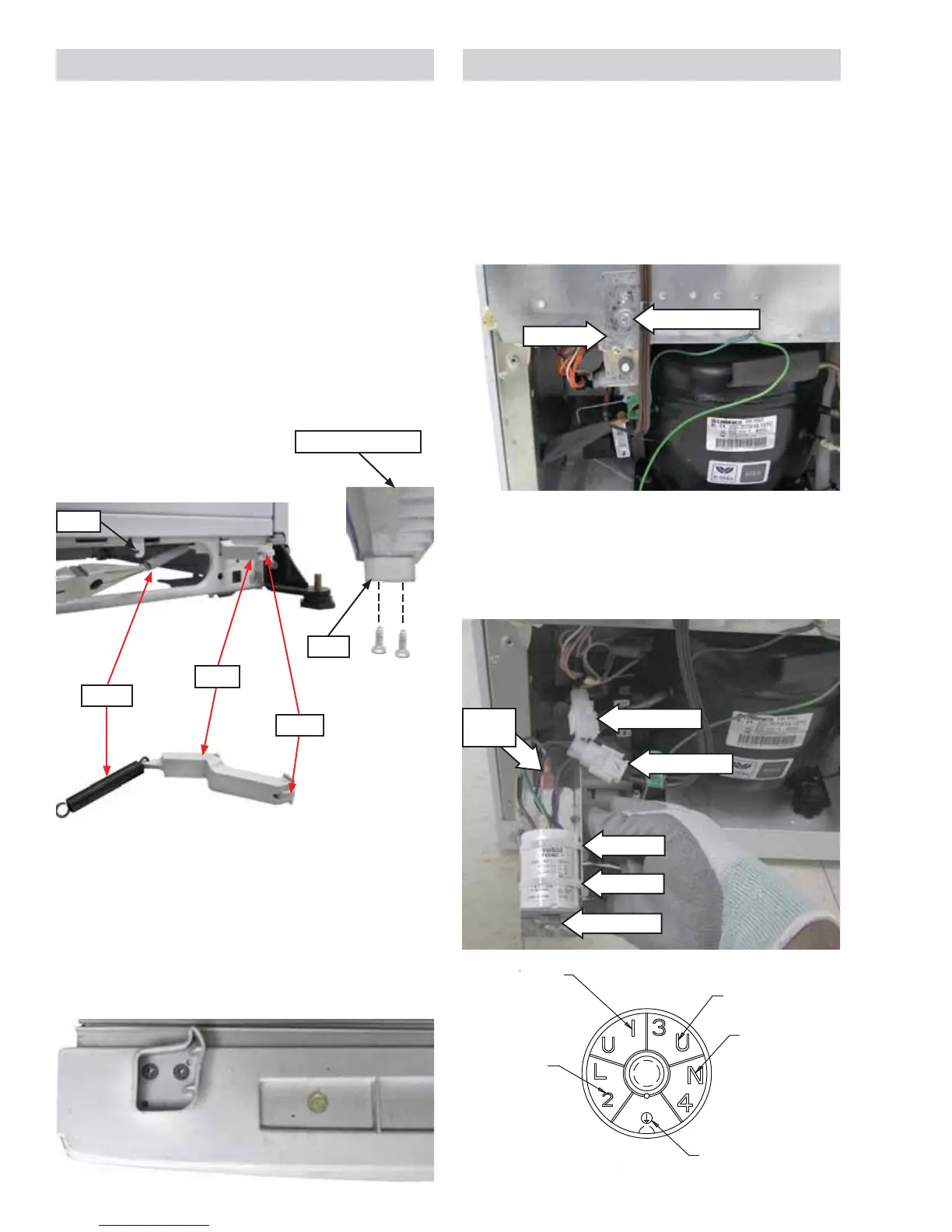

– 52 –
Note: Each door closer cam can be installed
incorrectly. Ensure each cam is installed on the
bottom of the drawer with the hooked end towards
the center of the drawer.
Bottom View of Drawer and Right Side Cam
Drawer Closure Mechanisms
Two self-closing freezer drawer cam and lever
mechanisms automatically pull the drawer shut
when it's within 1-inch of the closed position. The
closure mechanisms are located on the lower corner
areas of the drawer and cabinet.
Each closure mechanism consists of a lever, spring,
and cam. The lever is attached with a spring to a
hook in the base channel. The cam is mounted to
the bottom of the drawer with two T-20 Torx screws.
The lever interacts with the cam to complete the
closing of the drawer.
A pair of pliers can be used to remove the spring
from the hook. The spring and lever can then be
pulled out through the hole in the base channel.
Bottom of Drawer
Cam
Hook
Spring
Lever
Roller
EMI Filter (Model GBSC0)
The EMI Filter is accessed from the back of the
refrigerator and is located on the left side of the
compressor.
To remove the EMI fi lter:
Remove the 5/16-in. hex-head screw that 1.
attaches the bracket to the cabinet.
2. Pull the bracket out and disconnect the wire
harnesses and ground wire. Remove the plastic
ties and the 1/2-in. nut.
5/16-in. Screw
1/2-in. Nut
Wire Tie
Wire Tie
Ground
Wire
Bracket
Disconnect
Disconnect
LINE OUTPUT
NEUTRAL OUTPUT
LINE INPUT
NEUTRAL INPUT
GROUND
EMI FILTER CONNECTIONS
To Next Page
