REQUIRED GROUNDING METHOD
This air conditioner must be grounded. The air conditioner is
equipped with a power supply cord that has a grounding
plug. The power supply cord must be plugged into a mating,
grounded outlet, and grounded in accordance with all local
codes and ordinances.
220V
16 Amp

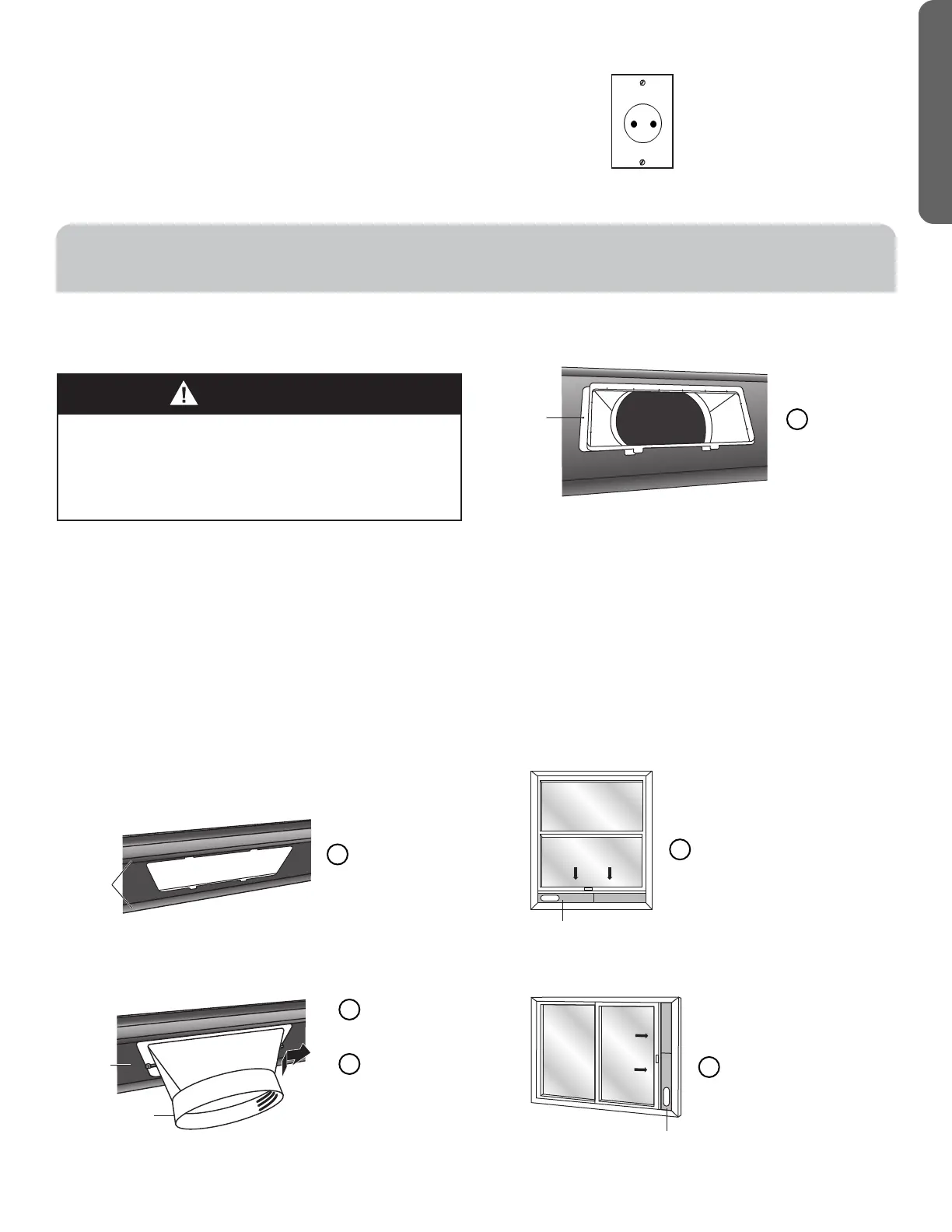

INSTALLATION INSTRUCTIONS
STEP 1 - UNPACK AIR
CONDITIONER
WARNING
Excessive Weight Hazard
Use t
wo or more people to move and install air
conditioner.
Failur
e to do so can result in back or other injury.
•
Remove packaging materials. Save the carton and the
foam packaging for storing the air conditioner when not
in use.
NOTE: There are NO packing materials inside the
air conditioner to remove—Do Not open the cabinet.
•
Properly dispose of/recycle all packing material.
•
Handle the air conditioner gently.
•
Keep the air conditioner upright and level. Do not set the
air conditioner on its side, front, back or upside down.
STEP 2 - INSTALL EXHAUST
NOZZLE TO MAIN WINDOW PANEL
1. Hold the main window panel so that the L-shaped edges
of the panel are facing you.
a
A
L-Shaped
Edges
2. Align the exhaust nozzle with the slots in the opening,
and then insert and slide the nozzle to access the hole
from the back of the main window panel.
b
a
A
Main
Window
Panel
B
Exhaust
Nozzle
3. Turn the main window panel over, so that the nozzle is
away from you. Insert a fla screw through the hole to
fasten the window panel to the adapter.
a
A
Flat
Screw
STEP 3 - INSTALL MAIN WINDOW
PANEL AND EXTENSION PANELS
NOTE: Depending on the size of y
our window opening,
use the main panel and one or both of the extension
panels.
1. Open the window and place the main window panel into
the window.
NOTE: The window assembly is designed to
accommodate either a vertical slide or horizontal
slide window.
Vertical Slide Window
a
A
Main Window Panel
Horizontal Slide Window
a
A
Main Window Panel
2. Adjust the extension panel to t the width or height
of the window as shown.
5
ENGLISH
