– 19 –

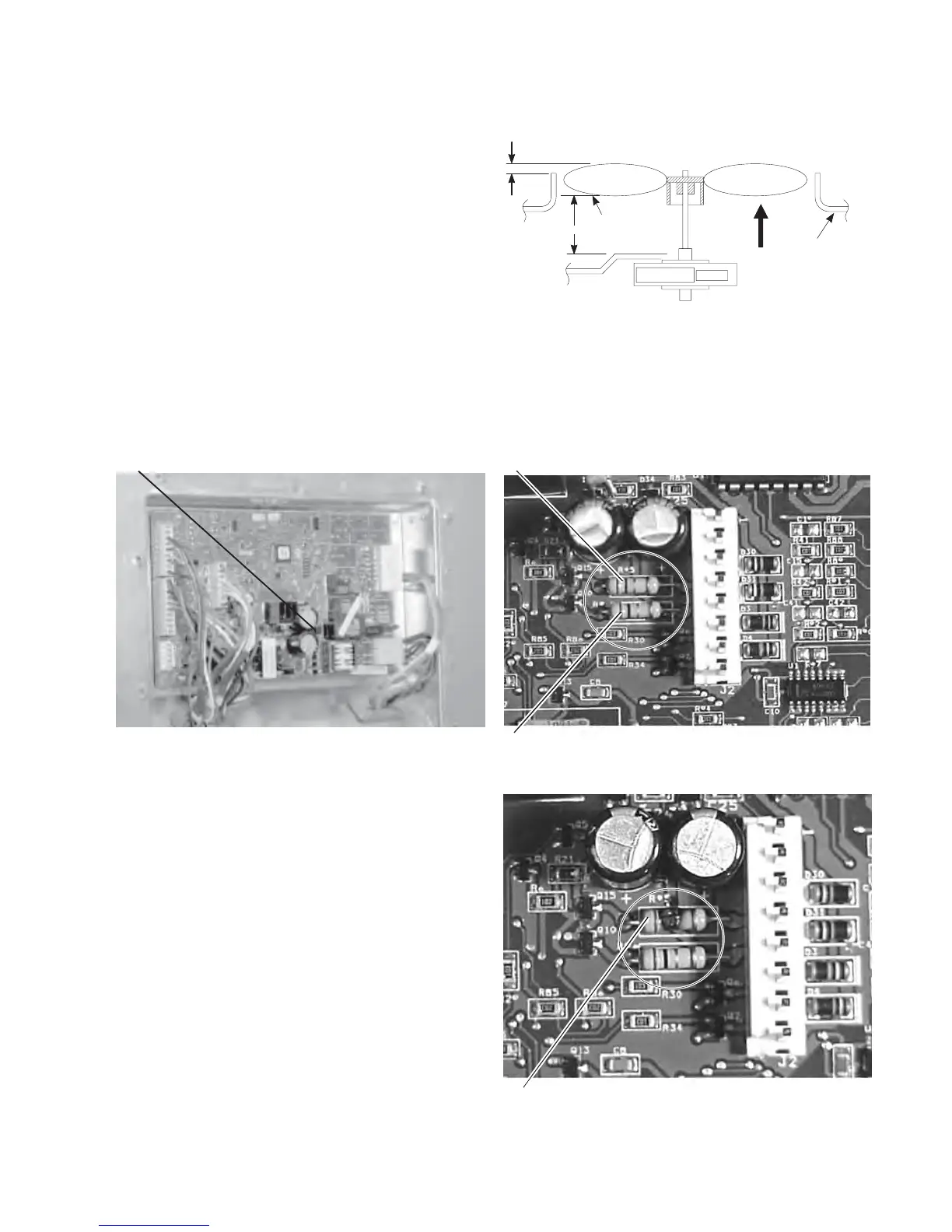

Evaporator Fan
The position of the fan blade in relation to the
shroud is critical. Refer to graphic for
specifications.
If the fan shorts, it will damage the main control
board. If the resistor on the main control board
is burnt, you must replace the fan and the board
(see photo).
5/16" ± 0.03
Blade tip
1.0" ± 0.05 Target
Motor
Air Flow
Orifice
GEA01149
Evaporator and Condenser Fan Resistors
Evaporator Fan Resistor
Condenser Fan Resistor
Bad Evaporator Fan Resistor
Evaporator Fan Adjustment
Airflow
