TYPICAL INSTALLATION
• Remove plastic shipping plug and wire from valve outlet.

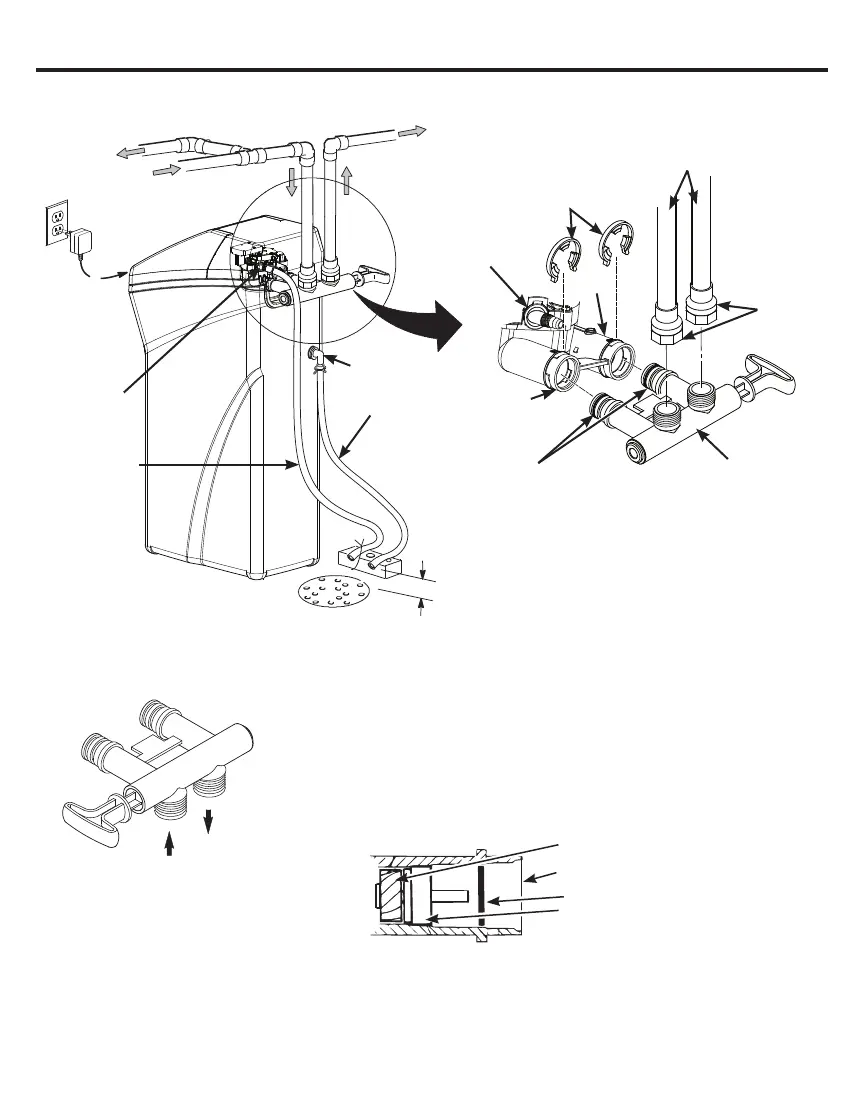

Figure 8
Turbine
Valve outlet
Turbine shaft and support
Plastic shipping plug
NOTE: Be sure the turbine and support are firmly in place
in the valve outlet. Blow into the valve port and observe the
turbine for free rotation.
Clips
Inlet
Outlet
Lubricated
O-ring
Single
Bypass Valve
1” NPTF
Sweat
Adaptor
(not
included)
Pipe
1-1/2”
air gap
Floor Drain
Secure Valve Drain Hose in
place over Floor Drain
Salt Storage
Tank Overflow
Hose*
Overflow Drain
Elbow
Conditioned
Water
To Outside
Faucets
Plug-in
Power
Supply
To
Controller
Valve Drain
Elbow
Valve Drain
Hose*
*Do not connect the
water softener valve drain
tubing to the salt storage
tank overflow hose.
NOTE: See “Air Gap Requirements” section.
Figure 6
Figure 7
Drain
Hose
Adapter
Hard Water
Main Water Pipe
SINGLE BYPASS VALVE
If connecting to floor level
plumbing, install the bypass
valve turned downward, as
shown.
