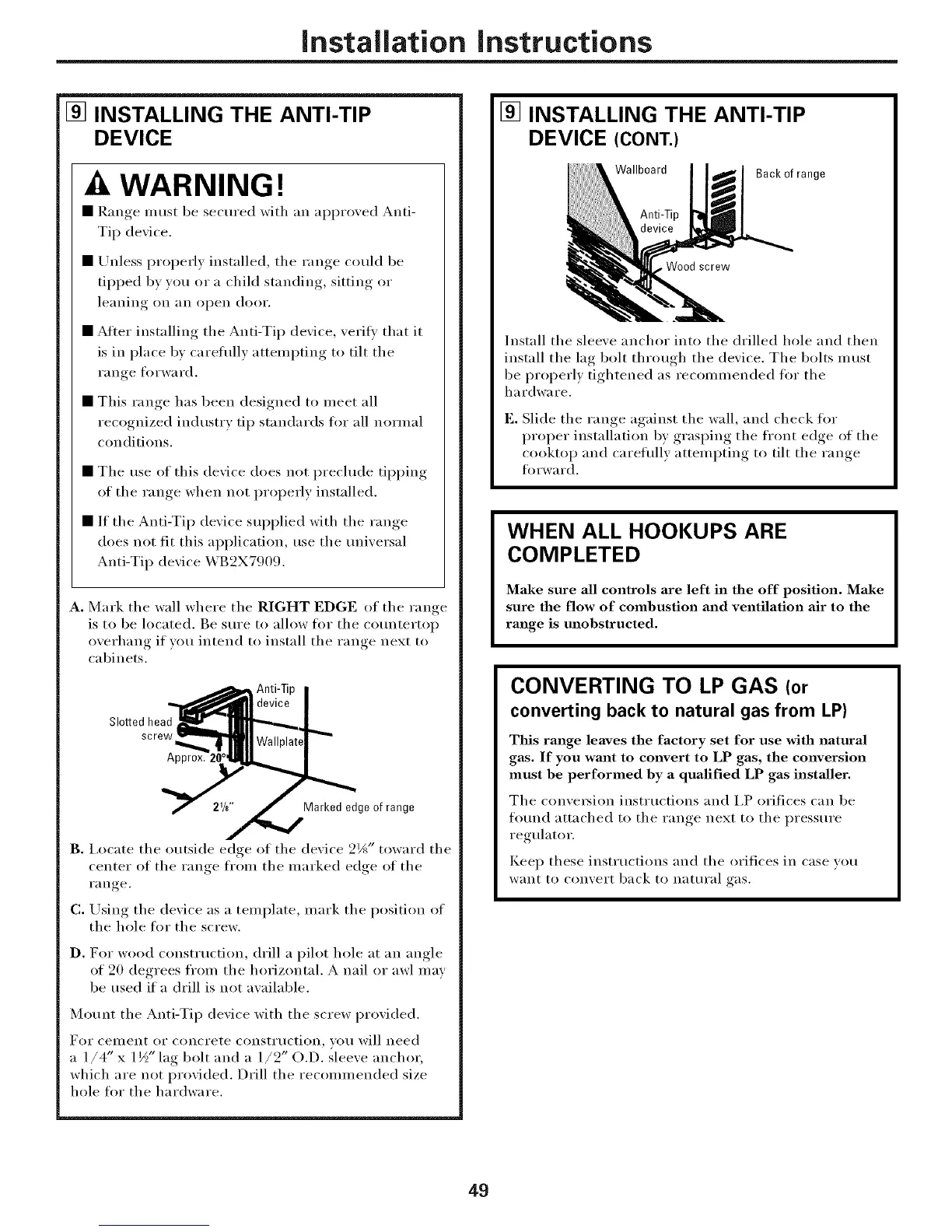

Installation instructions
[] INSTALLING THE ANTI-TIP
DEVICE
A WARNING!
• R'm,,e,_ must be secured with an approxed Anti-
Tip dexice.
• Unless properly installed, the range could be
tipped b) you, or a child standing, ,sittin,,_ or
leaIliIlg Oil _lI1 ol)eI1 door.
• After installing the Anti-Tip dexice, xerili that it
is in place b) carefldly attempting to tilt the
I'll iloe forward.
• This range has been designed to ineet all
recognized industry tip standards for all normal
conditions.
• The use of this dexice does not preclude till)Dim,
of the range when not properly installed.
• If the Anti-Tip dexice supplied with the range,
does not fit this application, use the tmixersal
Anti-Tip dexice X,_B2X7909.
A. Mark the wall where the RIGHT EDGE of the range
is to be located. Be sm'e to allow fl)r the cotmtertop
overhang if wm intend to install the range next to
cabinets.
Slotted head
screw
Marked edge of range
2_ toward the
B. I,ocate the outside edge, of the de_ice _ J "
center of the ranoe from the marked edge of the
I'}1I1 re
C. Using the dexice as a template, mark the position of
the hole for the screw.
D. For wood constH/ction, drill a pilot hole at an angle
of 20 degrees from the horizontal. A nail or awl may
be used if a drill is not axailable.
Mount the Anti-Tip dexice with the screw proxided.
For ceulell[ or COlicrete COIlStltlctioI1, VOII will need
a 1/4" x 1½" lag bolt and a 1/2" O.D. sleeve anchor;
which are not provided. Drill the recommended size
hole tot the hardware.
[] INSTALLING THE ANTI-TIP
DEVICE (CONT.)
Wallboard
Back of range
screw
Install the sleeve anchor into the drilled hole and then
install the lag bolt through tile device. The bolts must
be properly tightened as recommended fin" the
hardware.
E. Slide tile range against the wall, and check fin"
proper installation by grasping the ti'ont edge ot the
cooktop and careflflly attempting to tilt the range
fin'ward.
WHEN ALL HOOKUPS ARE
COMPLETED
Make sure all controls are left in the off position. Make
sure the flow of combustion and ventilation air to the
range is unobstructed.
CONVERTING TO LP GAS (or
converting back to natural gas from LP)
This range leaves the factory set for use with natural
gas. If you want to convert to LP gas, the conversion
must be performed by a qualified LP gas installer,
The conxetMon instructions and I,P orifices can be
fotmd attached to the range next to the i)ressm'e
regulator.
Kee I) these instructions and the orifices in case you
XV[IIIt1o COIlx,ert back to Ilattlral gas.
49
