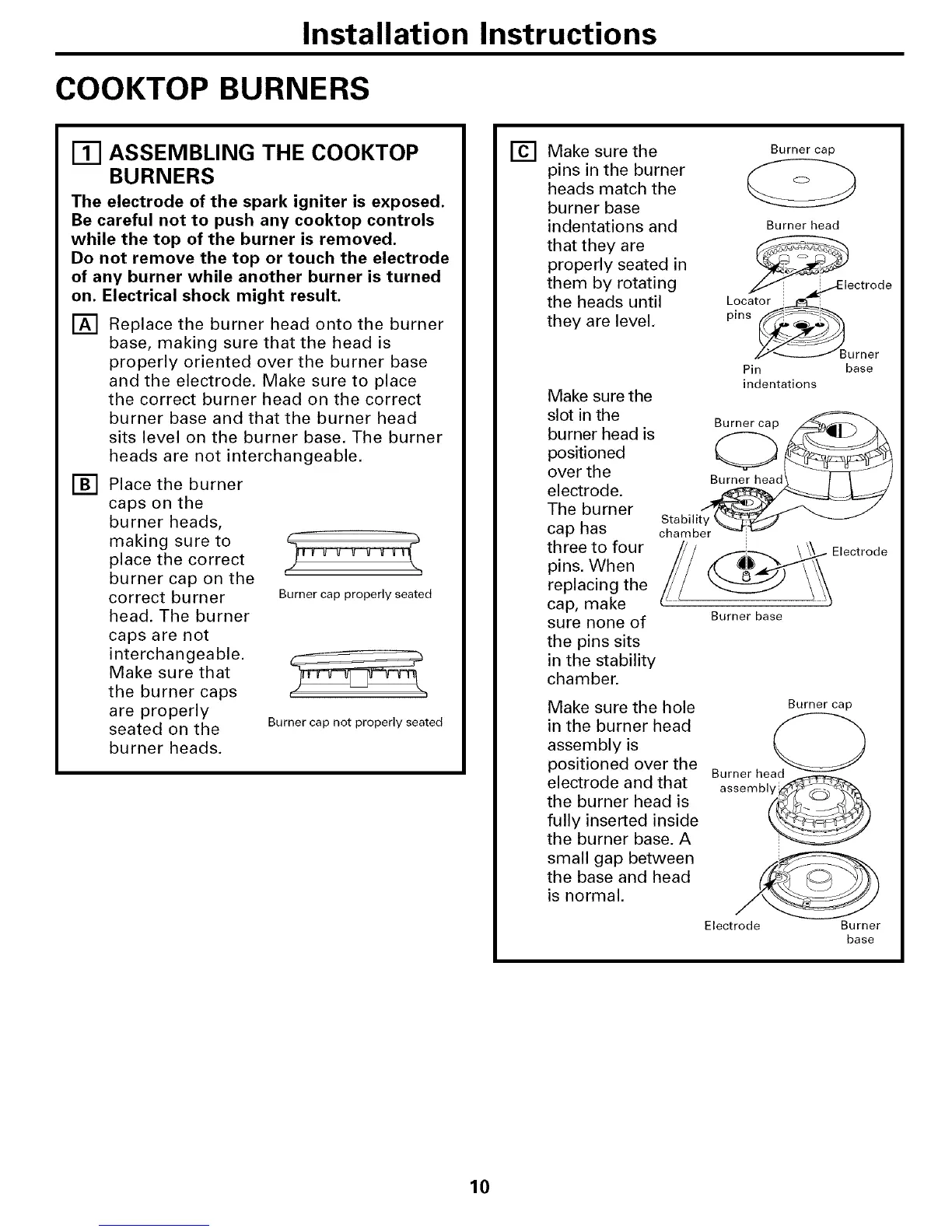

COOKTOP BURNERS
ASSEMBLING THE COOKTOP
BURNERS
The electrode of the spark igniter is exposed.
Be careful not to push any cooktop controls
while the top of the burner is removed,
Do not remove the top or touch the electrode
of any burner while another burner is turned
on, Electrical shock might result,
[] Replace the burner head onto the burner
base, making sure that the head is
properly oriented over the burner base
and the electrode. Make sure to place
the correct burner head on the correct
burner base and that the burner head
sits level on the burner base. The burner
heads are not interchangeable.
[] Place the burner
caps on the
burner heads,
making sure to
place the correct
burner cap on the
correct burner
head. The burner
caps are not
interchangeable.
Make sure that
the burner caps
are properly
seated on the
burner heads.
rTTTq
Burner cap properly seated
J
Burner cap not properly seated
[]
Make sure the
pins in the burner
heads match the
burner base
indentations and
that they are
properly seated in
them by rotating
the heads until
they are level,
Make sure the
Burner cap
Burner head
_lectrode
Locator i_.
pins __urner
Pin base
indentations
slot in the
burner head is
positioned
over the
electrode.
The burner
cap has
three to four
pins. When
replacing the
cap, make
sure none of
the pins sits
in the stability
chamber.
cSt_abi IiLteYr_
Electrode
Burner base
Make sure the hole
in the burner head
assembly is
positioned over the
electrode and that
the burner head is
fully inserted inside
the burner base. A
small gap between
the base and head
is normal.
Burner cap
Burner head
assembl@
Electrode Burner
base
10
