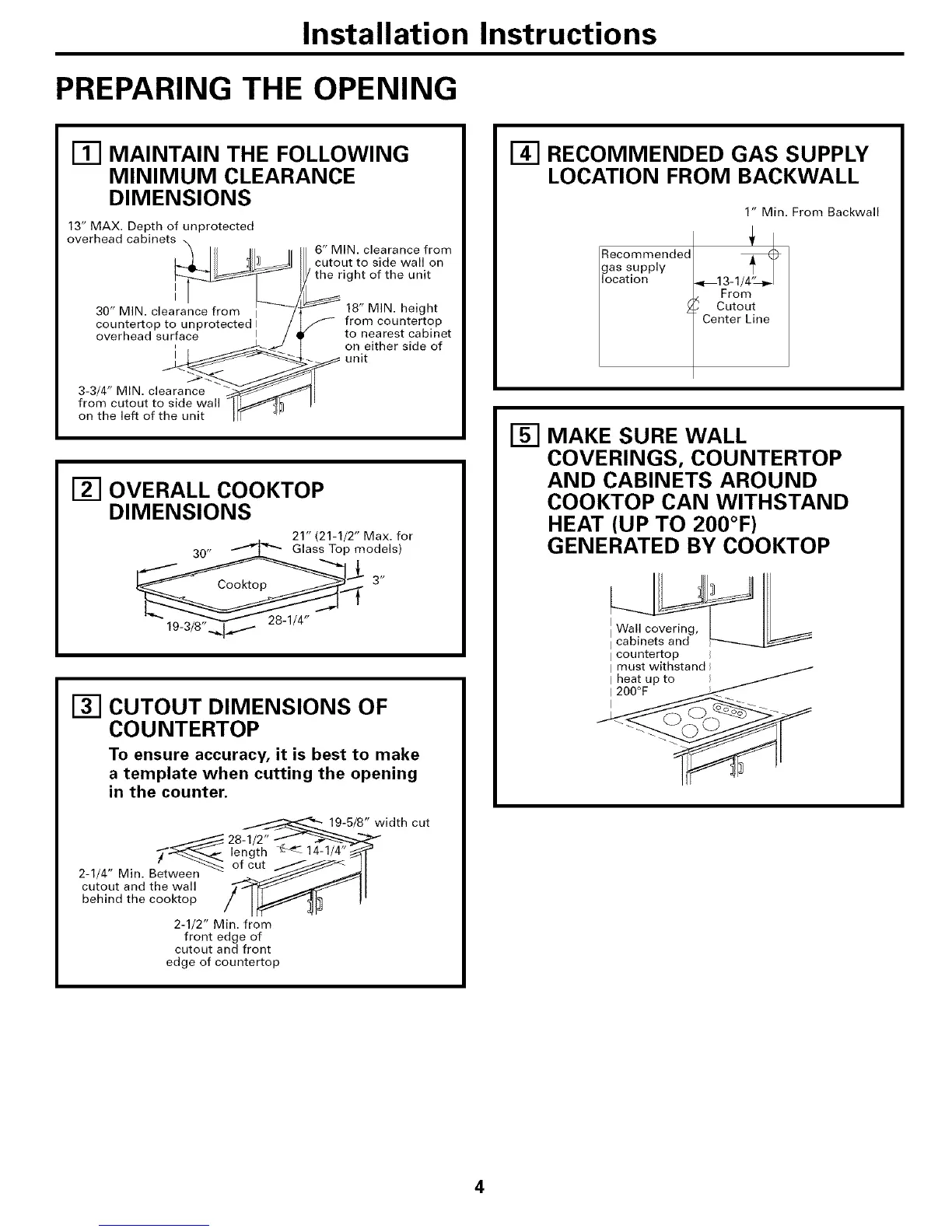

Installation Instructions
PREPARING THE OPENING
_-I MAINTAIN THE FOLLOWING
MINIMUM CLEARANCE
DIMENSIONS
13" MAX. Depth of unprotected
overhead cabinets ,,,
30" MIN. clean/
countertop to unprotected I /
overheadaurface I 4/ I
3-3/4,,M,N.c,eara>
from cutout to side wall °1_
on the left of the unit I [
6" MIN. clearance from
i cutout to side wall on
the right of the unit
_18" MIN. height
S from countertop
to nearest cabinet
on either side of
unit
_-I OVERALL COOKTOP
DIMENSIONS
21" (21-1/2" Max. for
Glass Top models)
3"
[] CUTOUT DIMENSIONS OF
COUNTERTOP
To ensure accuracy, it is best to make
a template when cutting the opening
in the counter,
28-1/2"
it _ length
2-1/4" Min. Between _ of cut
cutout and the wall
behind the cooktop
19-5/8" width cut
2-1/2" Min. from
front edge of
cutout and front
edge of countertop
[] RECOMMENDED GAS SUPPLY
LOCATION FROM BACKWALL
Recommended
_tas supply
location
1" Min. From Backwall
_13-1_
From
Cutout
Center Line
[] MAKE SURE WALL
COVERINGS, COUNTERTOP
AND CABINETS AROUND
COOKTOP CAN WITHSTAND
HEAT (UP TO 200°F)
GENERATED BY COOKTOP
I Wall covering,
I cabinets and
I countertop
I must withstand /
I heat up to
1200 F
4
To Next Page
