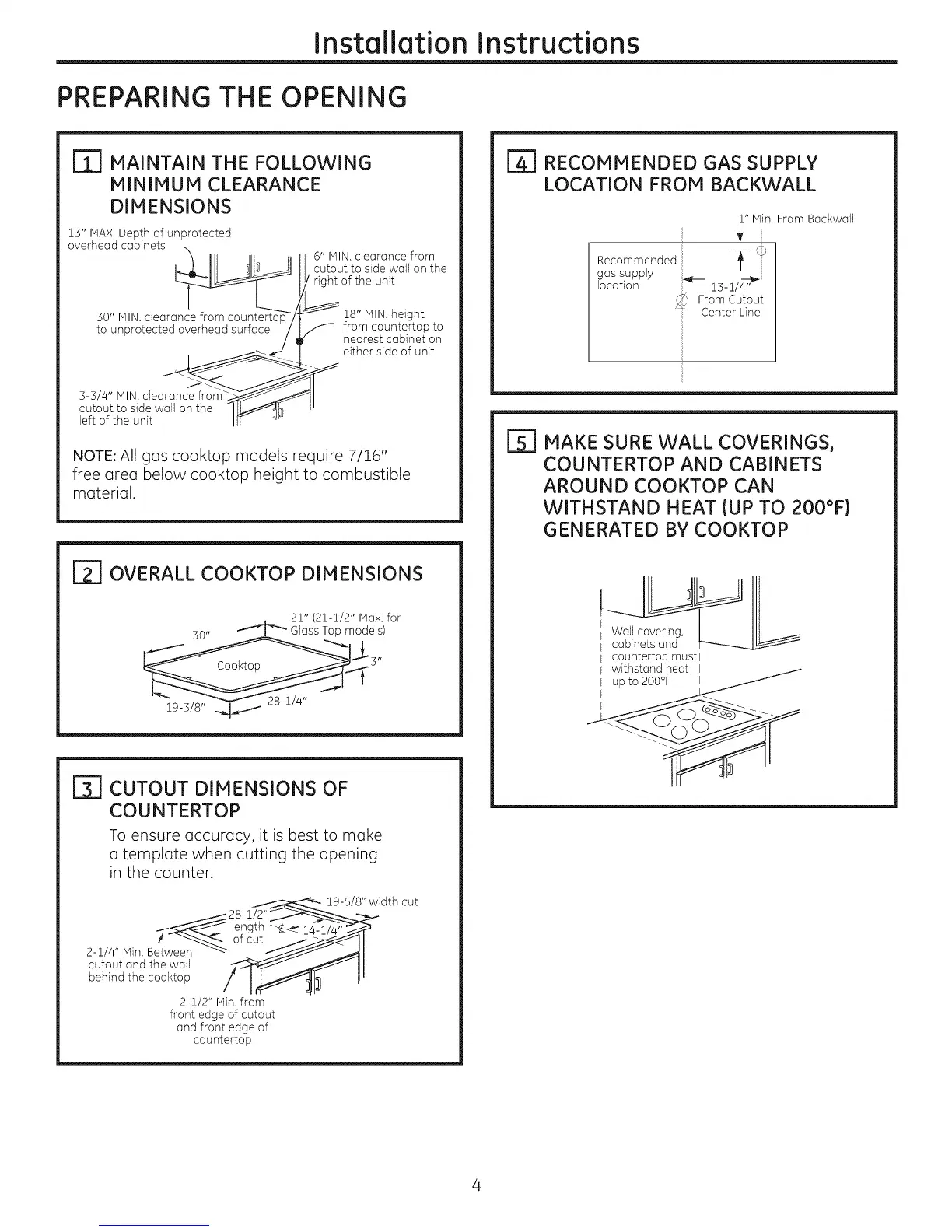

Instollotion Instructions
PREPARING THE OPENING
DIMENSIONS
13" IVlAX.Depth of unprotected
overhead cabinets _
3-3/4" MIN. clearance from_
MAINTAIN THE FOLLOWING
MINIMUM CLEARANCE
6" MIN. clearance from
II cutout to side wall on the
right of the unit
_18" HIN. height
f from countertop to
nearest cabinet on
either side of unit
NOTE: All gas cooktop models require 7/16"
free area below cooktop height to combustible
material.
ITI OVERALL COOKTOP DIMENSIONS
21" (21-1/2" Max. for
50" -'__ Glass Top models)
19-3/8" ._-_
[_ CUTOUT DIMENSIONS OF
COUNTERTOP
To ensure accuracy, it is best to make
o template when cutting the opening
in the counter.
19-5/8" width cut
_._ 28-1/2'
length -_--_¢ 14-1/4" :
! _ ofcut
2-1/4" Min. Between -_--
cutout and the wall
behind the cooktop
2-1/2" Min. from
front edge of cutout
and front edge of
countertop
| RECOMMENDED GAS SUPPLY
LOCATION FROM BACKWALL
1" Min. From Backwall
Rec°mmended ii _ _:
gas supply
location 13-1/_
_ From Cutout
Center Line
[_] MAKE SURE WALL COVERINGS,
COUNTERTOP AND CABINETS
AROUND COOKTOP CAN
WITHSTAND HEAT {UP TO 200°F)
GENERATED BY COOKTOP
Wall covering,
cabinets and
countertop must l
withstand heat I
To Next Page
