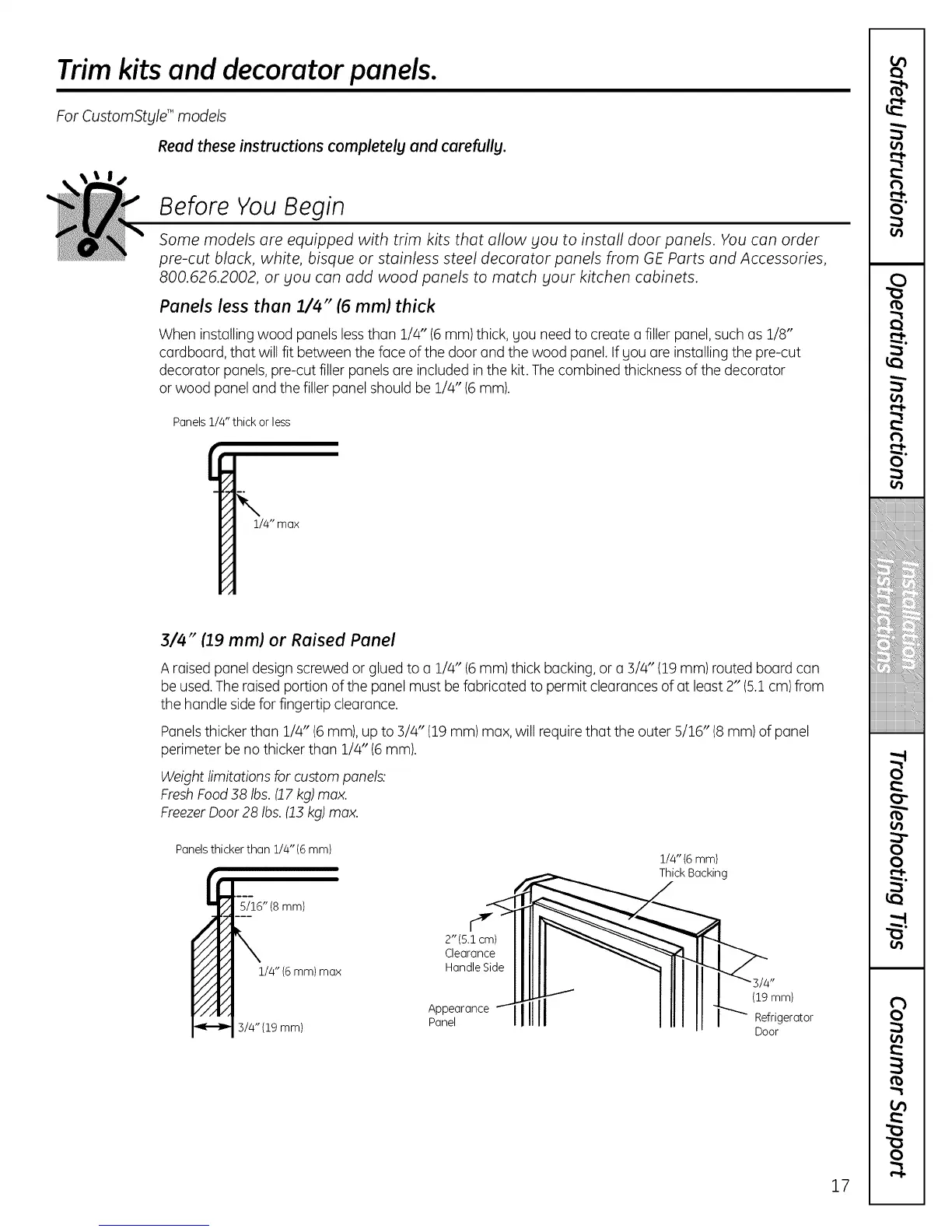

Trimkits and decorator panels.
For CustomStglg" models
Read these instructions completely and carefully.
Before You Begin
Some models ore equipped with trim kits that allow you to install door ponds. You con order
pre-cut block, white, bisque or stainless steel decorator ponds from GE Ports and Accessories,
800.626.2002, or you can odd wood ponds to match your kitchen cabinets.
Panels less than ]/4" (6 mm) thick
When installing wood panels lessthan 1/4" (6 mm) thick, you need to create a filler panel, such as 1/8"
cardboard, that will fit between the face of the door and the wood panel. If you are installing the pre-cut
decorator panels,pre-cut filler panelsare included inthe kit.Thecombined thickness of the decorator
or wood panel and the filler panel should be 1/4" (6 mm).
Panels 1/4"thick or less
i/4"max
3/4" (19 mm) or Raised Panel
A raised panel designscrewed or glued to a 1/4" (6mm) thick backing, or a 3/4" (19 mm) routed board can
be used.The raisedportion of the panel must be fabricated to permit clearances of at least 2" (5.1cm) from
the handle sidefor fingertip clearance.
Panelsthicker than 1/4" (6mm), up to 3/4" (19mm) max, will require that the outer 5/16" (8mm) of panel
perimeter be no thicker than 1/4" (6 mm).
Weight limitations for custom panels:
FreshFood38 Ibs.(17kg)max.
FreezerDoor28 Ibs.(13kg)max.
Panelsthicker than i/4"{6 mm)
i14"(6turn)
Thick Backing
5/16" (8 mm)
1/4" (6 mm) max
3/4"(19mm)
2" (5.1cm)
Clearance
Handle Side
Appearance
Panel
'4"
(19mm)
Refrigerator
Door
17
O"
@
I.Q
0
m
v
0
0
I.Q
w
_._
"0
"0
0
To Next Page
