– 9 –
Installation Requirements
These downdraft systems with a blower,
a motor, and ductwork will occupy
the cabinet below the cooktop.
Drawers cannot be installed
below this cooktop.
These models are shipped for
natural gas operation. They can
be converted to liquid propane.
(Order ZXLP56 conversion kit.)
These gas downdraft cooktops
are equipped with a vent system
which can be retracted when
not in use.
Note: JXBA56WW (white) or
JXBA56BB (black) blower/motor
assembly is required for both models.
Be sure to order the color that
matches the cooktop.
Accessories (see
Accessories
)
• JXRB57 optional accessory for indoor
remote location of blower/motor assembly.
Use kit when the blower and motor
assembly will be located outside of or below
the cabinet floor.
• JXBC57 optional outdoor cover accessory
may be ordered for installation of blower and
motor assembly on outside wall.
These gas updraft cooktops are only 3"
deep and can be installed over cabinet
drawers.
These models are shipped for natural gas
operation. They can be converted to liquid
propane use. (Order ZXLP56 conversion kit.)
Use these gas updraft cooktops with any 36”
or wider exhaust hood, if desired. No special
ventilation is required.

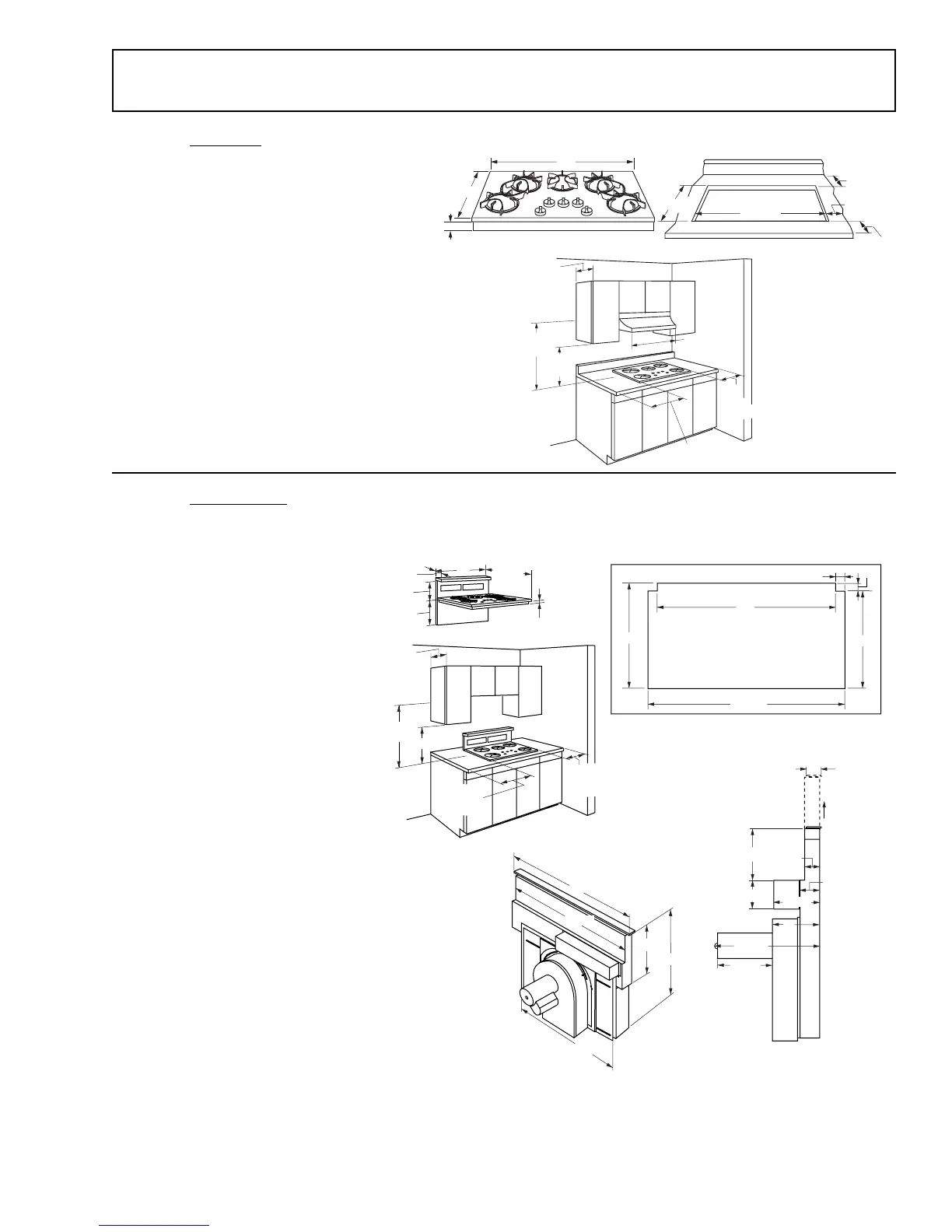

36" Gas Downdraft Cooktop - Models ZGU365 and JGP656
36" Gas Updraft Cooktop - Models ZGU3650 and JGP6560
19-3/4"
36"
3"
18-5/16"
2-5/16"
2-1/4"
34-7/16"
8-13/16"
13"
Max.
36" Min.
30"
Min.
18"
Min.
8"
Min.
to Wall
GEA00274
8" Min. to Wall
GEA00276
36"
22-1/4"
8-3/4"
2"
15"
2"
13"
Max.
30"
Min.
8" Min. to
Wall When
Installed
8" Min. to
Installed
Wall When
21"
19"
34-5/8"
34"
Back of Countertop
Front of Countertop
5/16"
2"
14-3/4"
36"
26"
27"
2-1/4"
3-1/4"
7"
12-3/8"
5-3/8"
3-1/4"
7-1/2"
2"
8-1/2" Lift
33-3/4"
6-3/8"
18"Min.
