49-40755 Rev. 1 15
Installation Instructions
A5
CAUTION
To avoid the risk of personal
injury (back injury or other injuries due to
excessive weight of the microwave) or property
damage, you will need two people to install this
microwave.
IMPORTANT: Do not grip or use handle during
installation.
WARNING
Risk of Electric Shock. Can
cause injury or death: If installing unit with
metal countertops, cover the edge of the power
supply cord hole with the power supply cord
bushing.
IMPORTANT: If filler blocks are not used, case
damage may occur from overtightening screws.

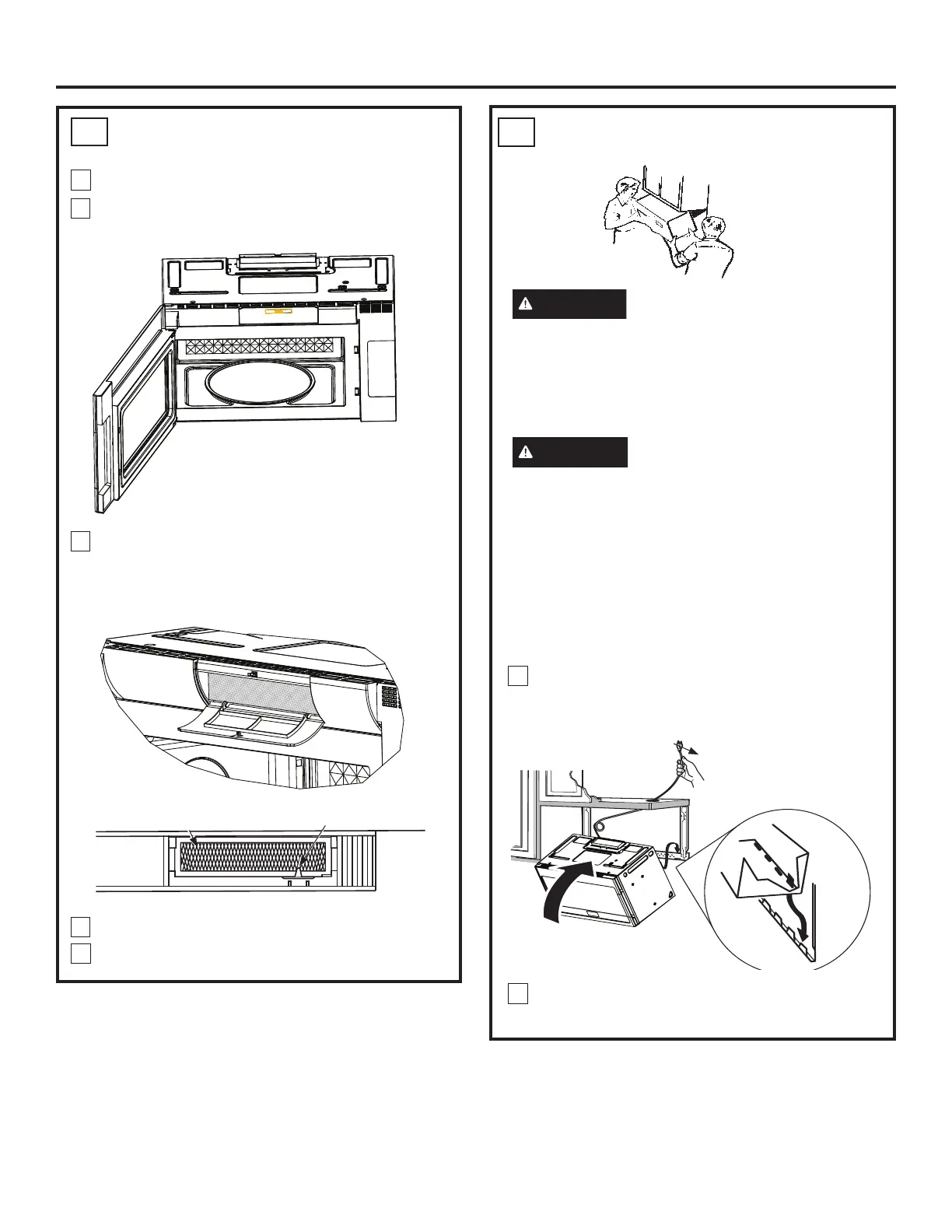

MOUNT THE MICROWAVE OVEN
NOTE: When mounting the microwave, thread
power cord through hole in bottom of top cabinet.
Keep it tight throughout Steps 1–3. Do not pinch
cord or lift microwave oven by pulling cord.
Lift microwave, tilt it forward, and hook slots
at back bottom edge onto four lower tabs of
mounting plate.
Rotate front of microwave oven up against
cabinet bottom.
1
2
Power Cord
INSTALLING THE CHARCOAL
FILTER
A4
Open the door.
Push the “Push” area on charcoal filter cover at
center of the grille.
Insert the top of the filter up and into the grooves on
both sides of the inside of the top opening. Once
you have cleared the bottom tab, push the bottom of
the filter in until it restes in place behind the tab.
Close the charcoal filter cover.
Close the door.
2
1
3
4
5
Filter
Bottom Tab
To Next Page
