4.5 Use: setup mode
In the setup-mode the following parameters can be changed:
• output voltage: 220 / 230 / 240 Vac
• bypass: enable / disable (see 4.4.6)
• P (Phase) - N (Neutral) reversal indication: enable / disable (see 4.4.12)
• output frequency: 50 / 60 Hz
The setup mode can only be entered if the UPS is in ‘standby’ -mode: connected to a live wall outlet and
switched off (LED 'operation' blinks).
1 Press keypad 'O' and keep it pressed while pressing 'I' simultaneously. Release both buttons.
The setup sequence starts with the setup of the output voltage, indicated by a blinking LED ‘operation’.
2 Scroll through the four functions with keypad 'I', one of the LEDs ‘operation’, ‘on bypass’, ‘on battery’ or
‘alarm’ will blink, indicating which function has been selected (see fig 4.5).
3 Toggle the setting of the selected function by pressing switch 'O'. The LEDs on the LEDbar ‘runtime
capacity’ shows the setting.
4 Store the new settings and leave the setup mode: press keypad '1' and keep it pressed while pressing
'0' simultaneously. Release both buttons.
- LEDs
220 Vac 230 Vac 240 Vac
output voltage
disabled enabled
bypass
disabled enabled
P-N rev. indication
output frequency 50 Hz 60 Hz

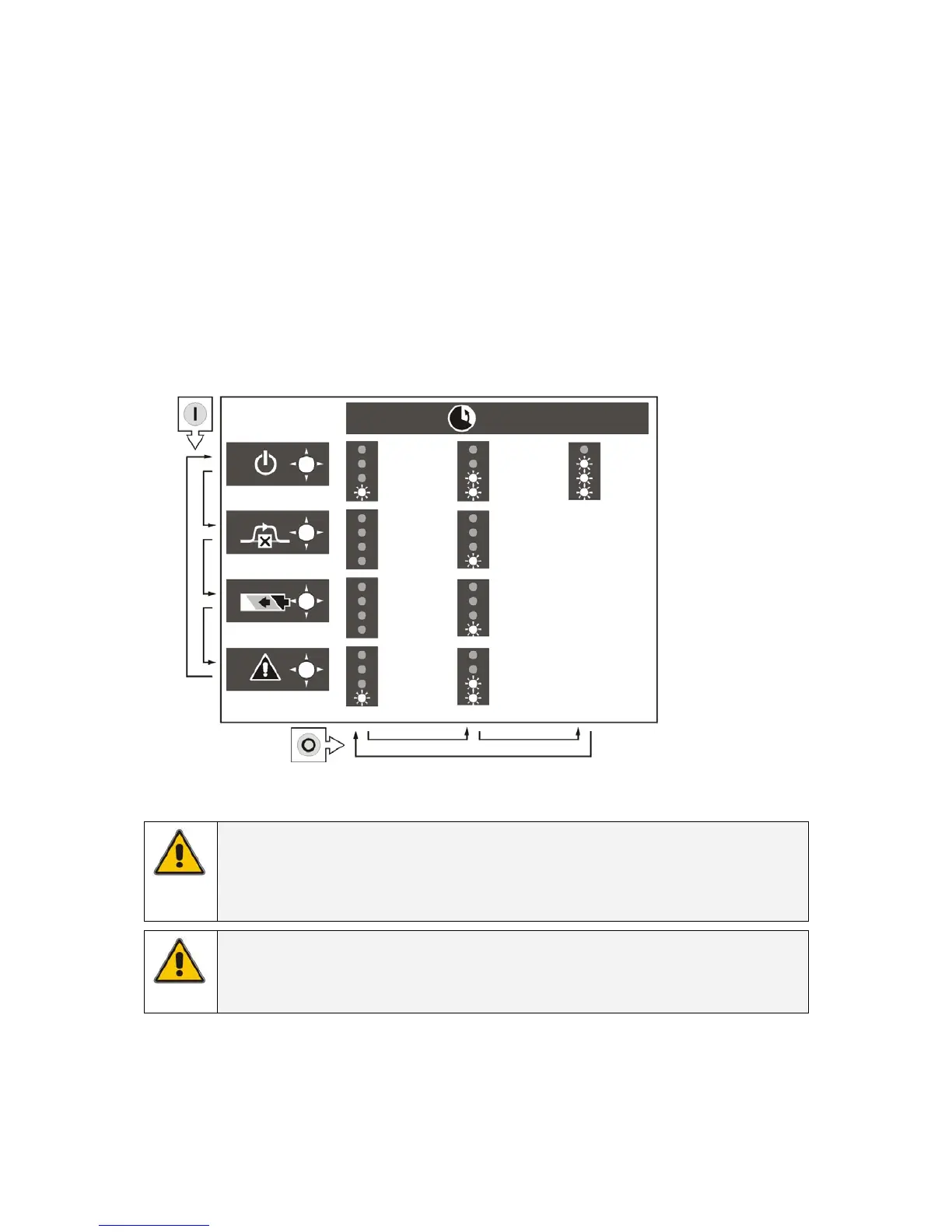

fig. 4.5: setup menu
NOTE
The unit can be used as a frequency converter: the input frequency range is 45-66Hz, the
output frequency is selectable 50/60Hz. If the unit is used as a frequency converter, the bypass
function is no longer available. As a result an audible alarm will be generated continuously (see
4.4.6). To avoid this, we advise to disable the bypass.
WARNING
Changing of the output frequency can cause severe damage of equipment connected to the
appliance outputs of the UPS: Be sure that the new frequency is suitable for the connected
equipment!
modifications reserved
OPM_VHE_XXX_0K7_3K0_XGB_V010
17 User manual VH Series 700-3000 UPS 1.0 (GB)
