gefran 40T96 User Manual

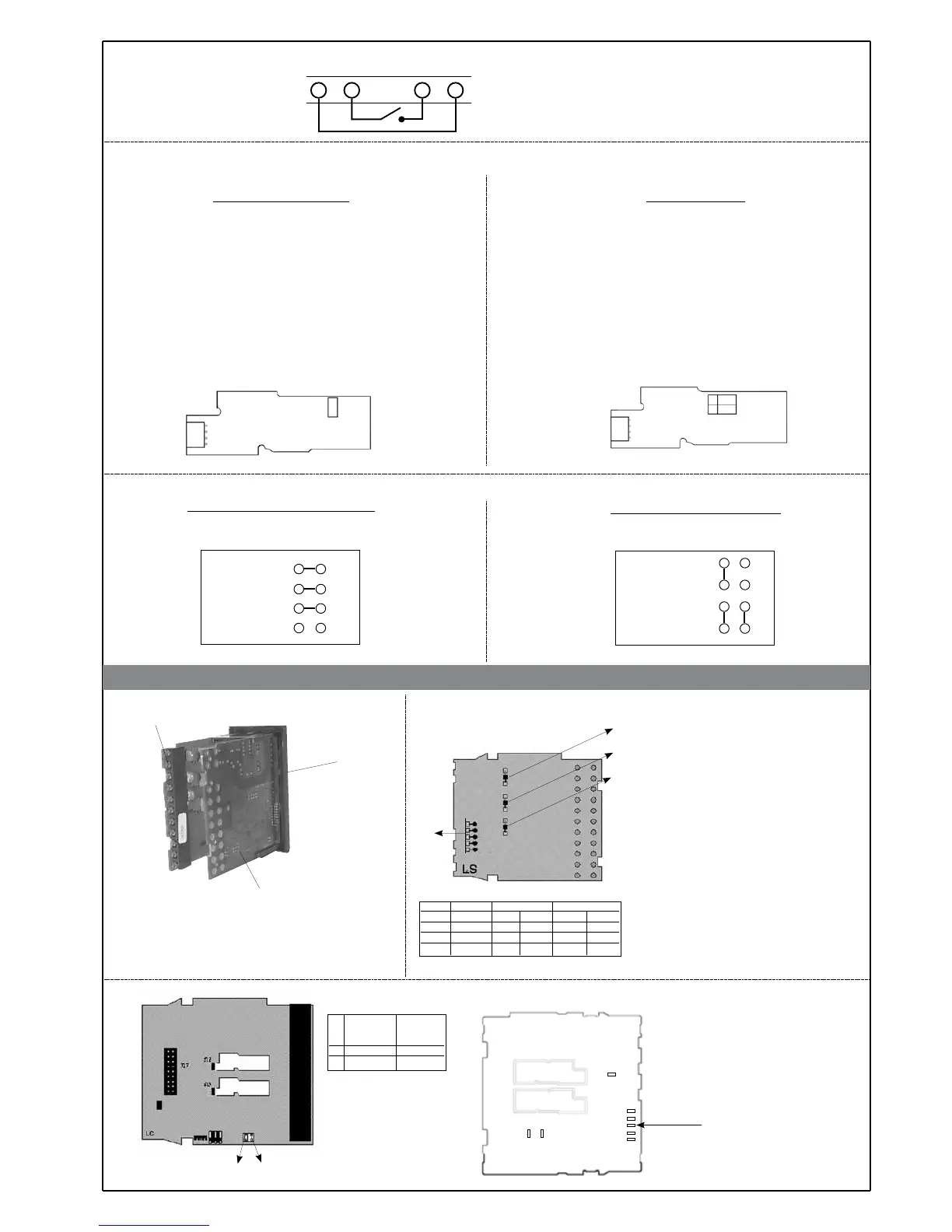

Device structure: identification of boards
- Analogue 0...10V, 0/4...20mA
- 0/2...10V (S1-ON),
0/4...20mA (S1-OFF)
S1 is a jumper on the board
for continuous or analogic
output
ANALOGUE Output
S1
- Digital input 24V 5mA (Jumpers S1, S2 in
position P) or from non-powered terminal
(Jumpers S1, S2 in position N)
S1
S2
N P
DIGITAL Input
Modbus 2 wires (Standard)
S1
S1
User configurable generic outputs / inputs
Serial line
Modbus 4 wires / Cencal
Jumper position on board Jumper position on board
Connections for keylock function through digital input (require selection +VT for the signal on contact 3)
OFF (open): keyboard enable
ON (closed): keyboard disable
2 3 5 6
+ -
+VT
CPU BOARD +
POWER SUPPLY
BOARD
OUTPUT BOARD
DISPLAY BOARD
OUTPUT BOARD
Selection for the sensor or transmitter
power supply
S3
S2
S1
1V
5V
10V
15V
24V
Jumper Directed Inverse
A B A B
OUT1 S1 ON OFF OFF ON
OUT2 S2 ON OFF OFF ON
OUT3 S3 ON OFF OFF ON
BA
BA
BA
You can select output state to have direct
or reverse mode.
Jumper S1, S2 and S3 are normally closed
in position A.
To change their state, the connection has
to be removed.
This operation must be done by trained
technical personnel.
Example in case of relay output:
- Direct mode: energized relay and related
closed contact correspond to active trip
point.
- Reverse mode: de-energized relay and
related open contact correspond to active
trip point.
CPU BOARD + POWER
SUPPLY BOARD
S2
S3
LS
S9 S1
S10
S6
S8
S4
S7
S5
ACCESS TO THE MENU
(S4)
Jumper S4 is normally closed.
To change its state, the connection has
to be removed.
This operation must be done by trained
technical personnel.
RTD, PTC, Transmitter
NTC and Potent.
Input Supply
S2 ON OFF
S3 OFF ON
3
81641I_MHW_40T96_07-2011_ENG
