Replace AGy-L by VDL200 Pag. 10 of 17

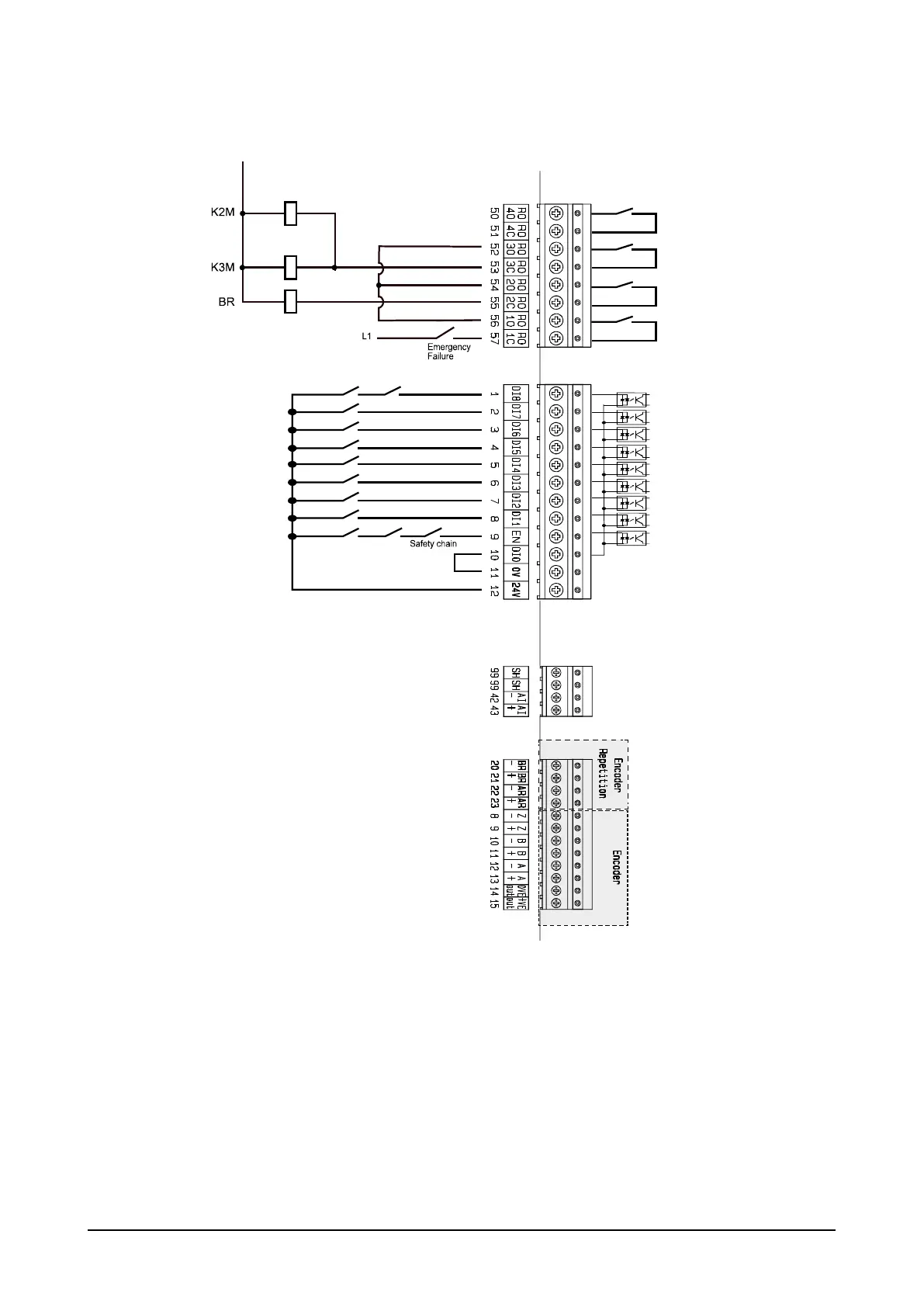

4.2 VDL200 Terminals Description
K2MK3M
BrakeFbk
MltSpd S2
MltSpd S1
MltSpd S0
Emergency mode
StartRevCmd
StartFwdCmd
K3M K2M
Feedback contactor
A1
A2
A1
A2
A1
A2
T3
T1
T2
XER
XE
Door
Run
Contactor
Brake
Contactor
Drive ON
Enable HW
Digital Input 8X
Digital Input 7X
Digital Input 6X
Digital Input 5X
Digital Input 4X
Digital Input 3X
Digital Input 2X
Digital Input 1X
+24V OUT
0V (24V) OUT
DI COM
