Activation and Startup
12 Owner’s Manual for Stationary Emergency Generators
3.3 — Install Battery
CAUTION: Always connect the positive battery
cable first. If the positive cable should contact
ground with the negative cable installed, the result-
ing sparks may cause a battery explosion which
could result in serious injury.
1. Loosen two screws with nylon washers to release hold-
down clamp from battery tray.
2. Install battery onto tray.
3. Install two screws with nylon washers to secure hold-
down clamp to battery tray.
4. Install battery positive cable (red) to battery positive (+)
terminal.
5. Install battery negative cable (black) to battery negative
(-) terminal.
3.4 — Open Viewing Window
1. Remove plastic film from both sides of viewing window.
2. Rotate viewing window upward to access control panel.
3. To hold viewing window in the open position, remove rod
from clip at back of window and insert into hole in frame.
See Figure 3-4.

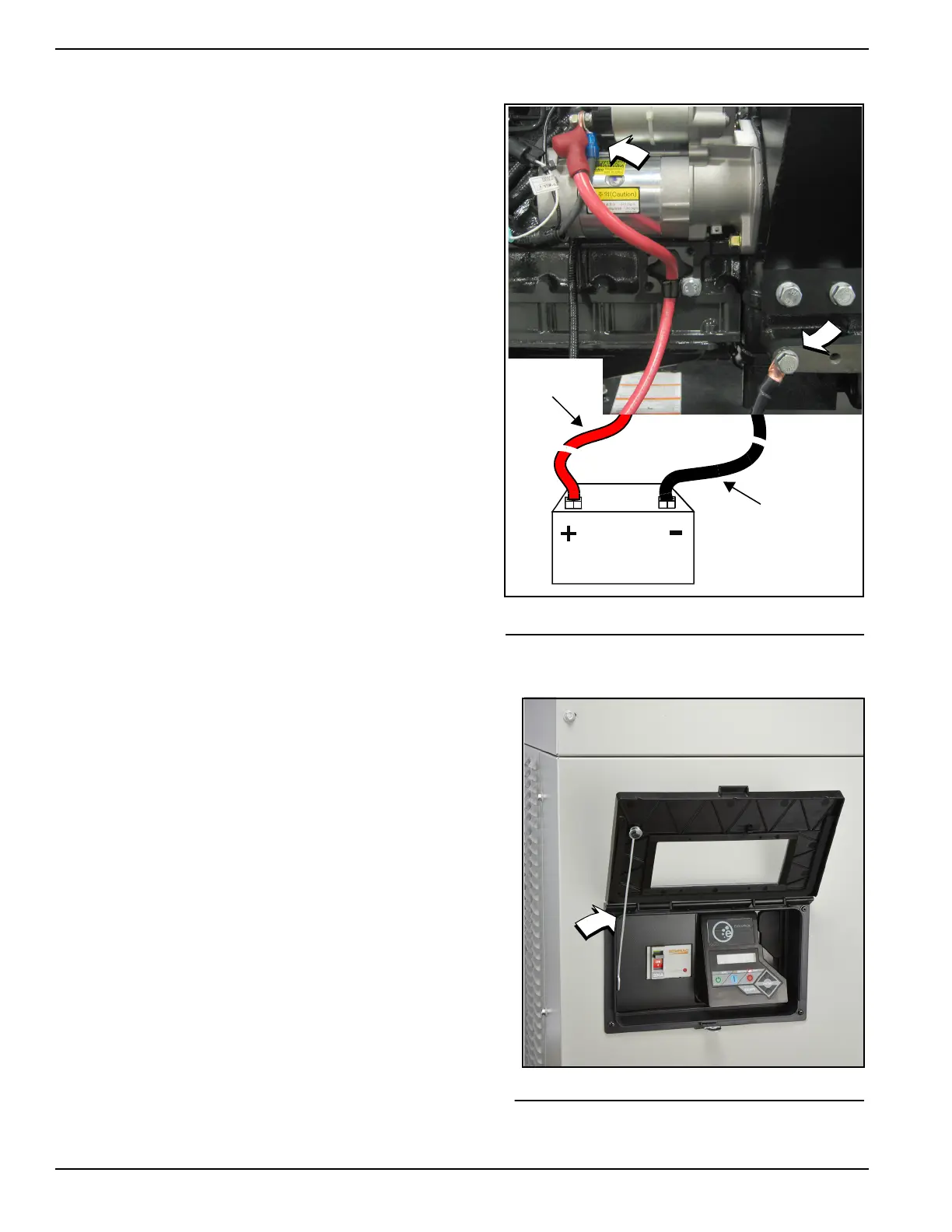

Figure 3-3. Battery Cable Connections
Battery
Red Lead
From Starter
Black Lead
To Frame
Figure 3-4. Viewing Window
To Next Page
