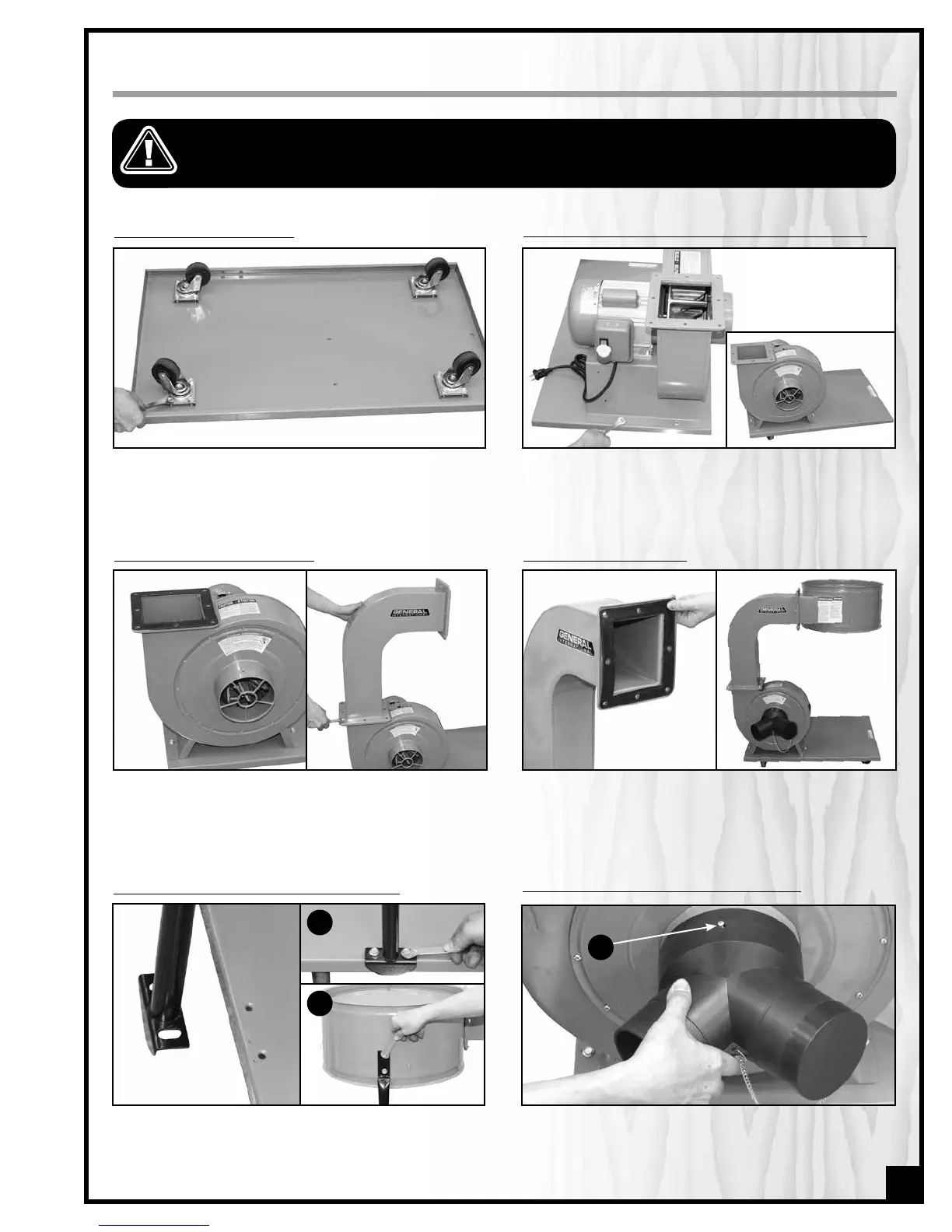

ASSEMBLY INSTRUCTIONS
Turn the base plate upside down and using the sup-
plied wrench, attach the 4 casters.
STEP 1 - INSTALL THE CASTERS
Turn the base plate back over (right side up) and place
the collector body with motor assembly on it lining up
the mounting holes.
STEP 2 - ATTACH COLLECTOR BODY W/ MOTOR ASSEMBLY
Place one of the rubber gaskets over the opening of
the collector body. Take the connector and proceed
by placing it over the same opening.
STEP 3 - ATTACH THE CONNECTOR
Use the remaining rubber gasket and place it over the
opening of the connector. Take the drum and proceed
by placing it over the same opening.
STEP 4 - ATTACH THE DRUM
Note: The vertical support rod has an angled end, A, to seat
over the lip of the base.
Attach the vertical support rods to the rear of the base
plate and to the drum, B.
9
STEP 5 - MOUNT THE SUPPORT ROD TO THE BASE
A
B
Install the hose fitting (“Y” fitting) to the front of the col-
lector body with a pan head screw C
.
STEP 6 - INSTALL THE HOSE INLET (“Y” FITTING)
C
SERIOUS PERSONAL INJURY COULD OCCUR IF YOU CONNECT THE MACHINE TO THE POWER SOURCE BEFORE YOU
HAVE COMPLETED THE INSTALLATION AND ASSEMBLY STEPS. DO NOT CONNECT THE MACHINE TO THE POWER
SOURCE UNTIL INSTRUCTED TO DO SO.
