DISTANCE (D) : SPOT SIZE (S)
The distance:spot ratio is important for evaluation of the area measured. The larger the distance from
the object the larger the area measured. Switch on the laser pointer for increasing target accuracy.
Note:
The target must be larger than the instrument’s spot size. The smaller the target the shorter the
distance should be.
E

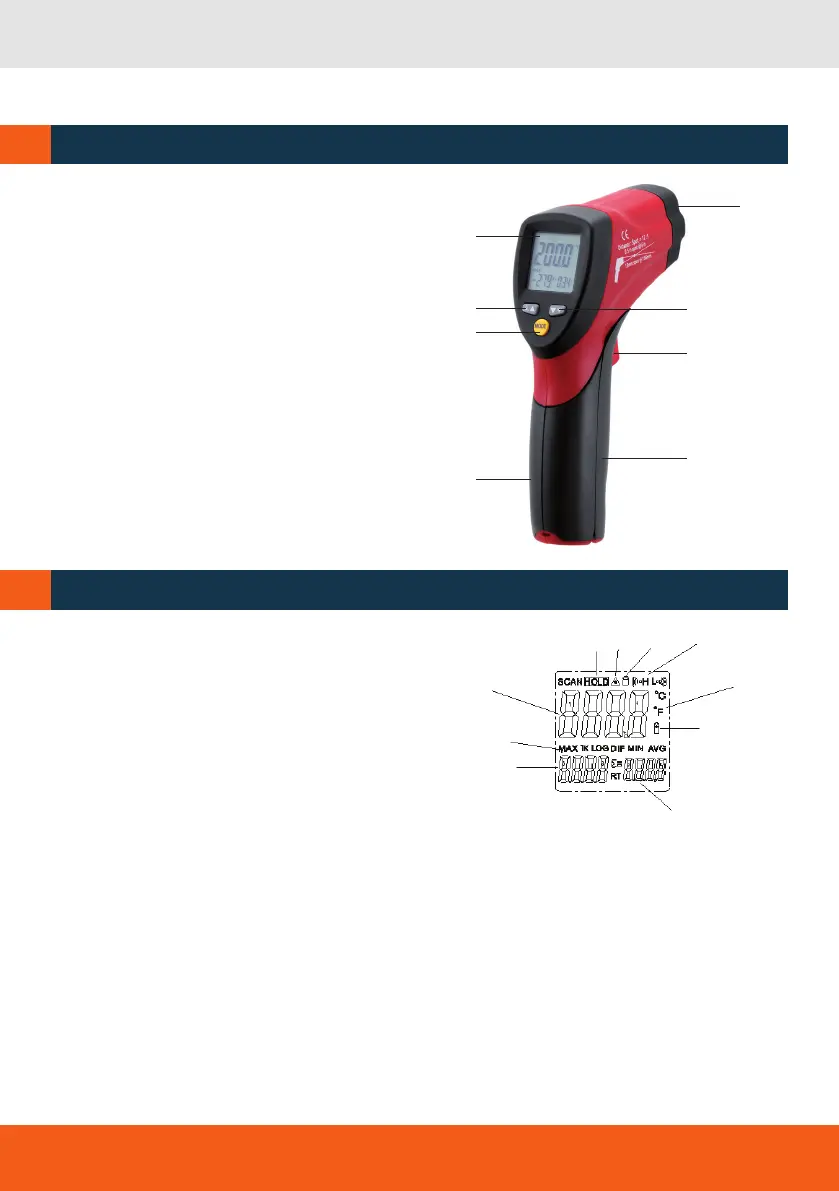

FRONT PANEL
1 2
3
4
5
6
7
8
9
10
1
4
6
7
8
5
3
2
1. IR Sensor
2. LCD display
3. p button / laser pointer (for EMS, HAL, LAL)
4. q button / illumination (for EMS, HAL, LAL)
5. MODE button (for menu navigation)
6. Measuring trigger
7. Battery compartment cover
8. Handle
DISPLAY
1. HOLD icon
2. Icon „Laser on“
3. LOCK icon
4. Icon High / Low alarm
5. Icon °C / °F
6. Battery status indication
7. Emissivity
8. MAX value
9. Icon MAX value
10. Measured temperature
