Gigabyte B450M DS3H WIFI User Manual

2-5 Installing an Expansion Card
Read the following guidelines before you begin to install an expansion card:
• Make sure the motherboard supports the expansion card. Carefully read the manual that came
with your expansion card.
• Always turn off the computer and unplug the power cord from the power outlet before installing an
expansion card to prevent hardware damage.

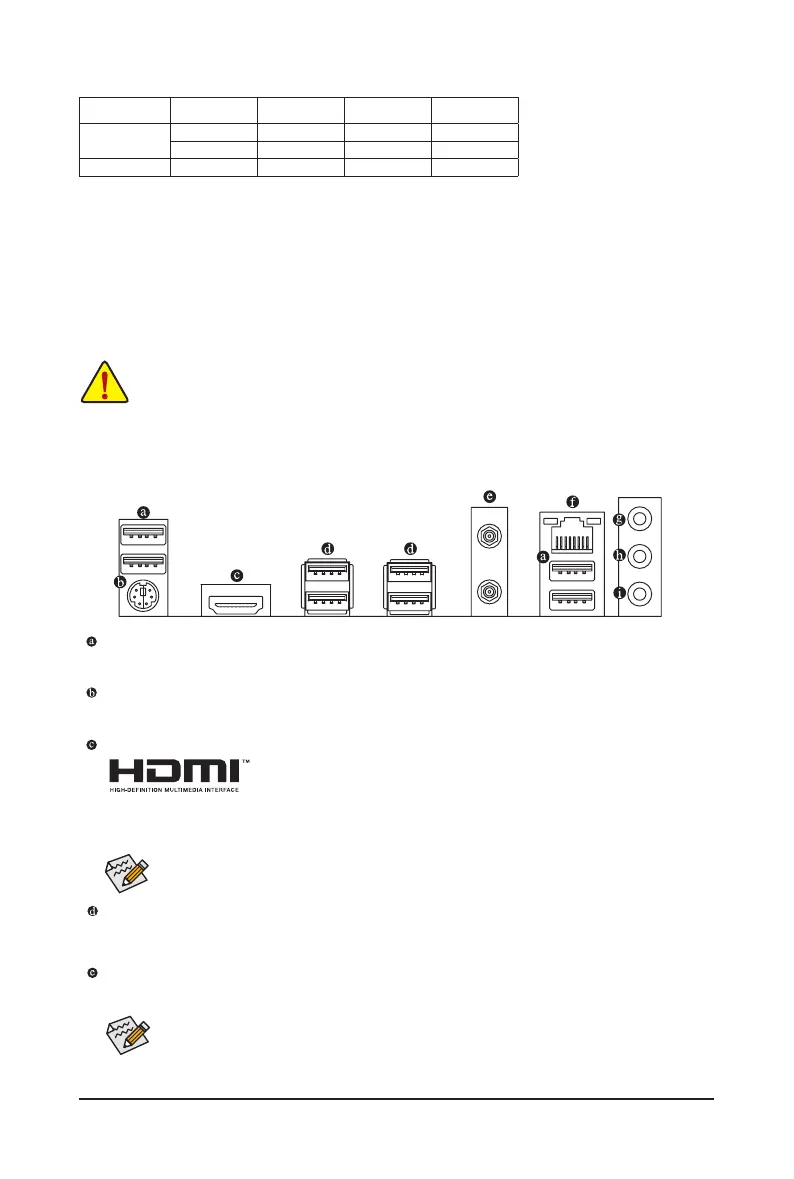

2-6 Back Panel Connectors
USB 2.0/1.1 Port
The USB port supports the USB 2.0/1.1 specication. Use this port for USB devices.
PS/2 Keyboard/Mouse Port
Use this port to connect a PS/2 mouse or keyboard.
HDMI Port
The HDMI port is HDCP 2.2
(Note)
compliant and supports Dolby TrueHD and
DTS HD Master Audio formats. It also supports up to 192 KHz/24bit 8-channel
LPCM audio output. You can use this port to connect your HDMI-supported monitor. The maximum
supported resolution is 4096x2160@60 Hz
(Note)
, but the actual resolutions supported are dependent on
the monitor being used.
After installing the HDMI device, make sure to set the default sound playback device to HDMI. (The
item name may differ depending on your operating system.)
USB 3.1 Gen 1 Port
The USB 3.1 Gen 1 port supports the USB 3.1 Gen 1 specication and is compatible to the USB 2.0
specication. Use this port for USB devices.
SMA Antenna Connectors (1T1R)
Use this connector to connect an antenna.
(Note) Actual support may vary by CPU.
Due to CPU limitations, read the following guidelines before installing the memory in Dual Channel mode.
1. Dual Channel mode cannot be enabled if only one memory module is installed.
2. When enabling Dual Channel mode with two or four memory modules, it is recommended that memory
of the same capacity, brand, speed, and chips be used. For optimum performance, when enabling
Dual Channel mode with two memory modules, we recommend that you install them in the DDR4_1
and DDR4_2 sockets.
Tighten the antenna cables to the antenna connectors and then move the antenna to a place
where the signal is good.
Recommended Dual Channel Memory Conguration:
DDR4_4 DDR4_2 DDR4_3 DDR4_1
2 Modules
- - DS/SS - - DS/SS
DS/SS - - DS/SS - -
4 Modules DS/SS DS/SS DS/SS DS/SS
(SS=Single-Sided, DS=Double-Sided, "- -"=No Memory)
- 11 -

Gigabyte B450M DS3H WIFI Specifications

General

Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 3, AMD Ryzen 3 2nd Gen, AMD Ryzen 3 3rd Gen, AMD Ryzen 5, AMD Ryzen 5 2nd Gen, AMD Ryzen 5 3rd Gen
Supported processor sockets	Socket AM4
Maximum number of SMP processors	1
Maximum internal memory supported by processor	128 GB
ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Supported memory clock speeds	2133, 2400, 2667, 2933, 3200, 3466, 3600 MHz
Supported memory clock speed (max)	3600 MHz
Supported memory module capacities	4GB, 8GB, 16GB, 32GB
Wi-Fi standards	802.11a, 802.11ad, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version	4.2
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN controller model	Realtek RTL8821CE
Ethernet interface type	Gigabit Ethernet
USB 2.0 connectors	2
Number of Parallel ATA connectors	0
USB connector type	USB Type-A
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
RAID levels	0, 1, 10
Supported storage drive types	HDD & SSD
Number of storage drives supported	5
Supported storage drive interfaces	M.2, SATA III
Bundled software	Norton Internet Security, cFosSpeed
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	128 Mbit
System Management BIOS (SMBIOS) version	2.7
DirectX version	12.0
Maximum resolution	4096 x 2160 pixels
Maximum graphics card memory	16000 MB
Parallel processing technology support	Not supported
Audio chip	Realtek ALC887
Component for	PC
Product color	Brown
Power source type	ATX
Motherboard chipset	AMD B450
PC health monitoring	FAN, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 10 x64, Windows 7 x64
Warranty period	3 year(s)
Battery type	CR2032
Battery weight	3 g
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Country of origin	China
Quantity per shipping (inner) case	1 pc(s)
Package width	265 mm
Package height	54 mm
Package weight	950 g

Weight and Dimensions

Height	35 mm
