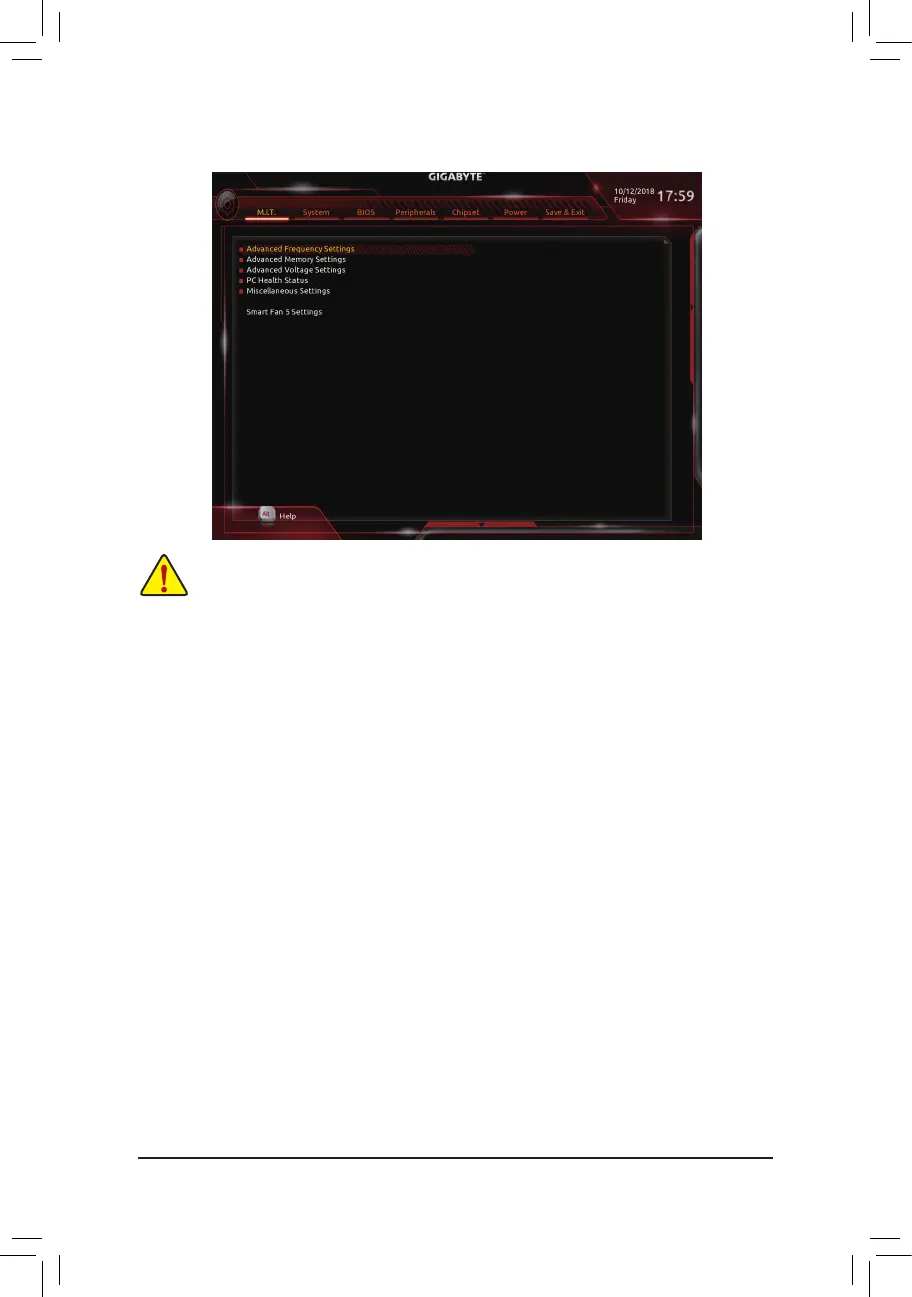

2-3 M.I.T.

Whether the system will work stably with the overclock/overvoltage settings you made is dependent on your overall

systemcongurations.Incorrectlydoingoverclock/overvoltagemayresultindamagetoCPU,chipset,ormemory

and reduce the useful life of these components. This page is for advanced users only and we recommend you not to

alter the default settings to prevent system instability or other unexpected results. (Inadequately altering the settings

mayresultinsystem'sfailuretoboot.Ifthisoccurs,cleartheCMOSvaluesandresettheboardtodefaultvalues.)

` Advanced Frequency Settings

& Host Clock Value

 DisplaysthecurrentoperatingHostClockfrequency.

& GFX Clock Frequency

(Note)

Allows you to alter the frequency for the GPU. After you alter the GFX Clock Frequency settings, make

sure to adjust the GFX Core Voltagesettings.(Default:Auto)

NOTE: The adjustable range is dependent on the CPU being installed. Auto lets the BIOS automatically

congurethissetting.

& GFX Core Voltage

(Note)

 AllowsyoutoalterthevoltagefortheGPU.(Default:Auto)

NOTE: The adjustable range is dependent on the CPU being installed. Auto lets the BIOS automatically

congurethissetting.

& CPU Clock Ratio

Allows you to alter the clock ratio for the installed CPU. The adjustable range is dependent on the CPU

being installed.

& CPU Frequency

 DisplaysthecurrentoperatingCPUfrequency.

` Advanced CPU Core Settings

& CPU Clock Ratio, CPU Frequency

The settings above are synchronous to those under the same items on the Advanced Frequency Settings

menu.

(Note) ThisitemispresentonlywhenyouinstallaCPUthatsupportsthisfeature.
