- 15 -

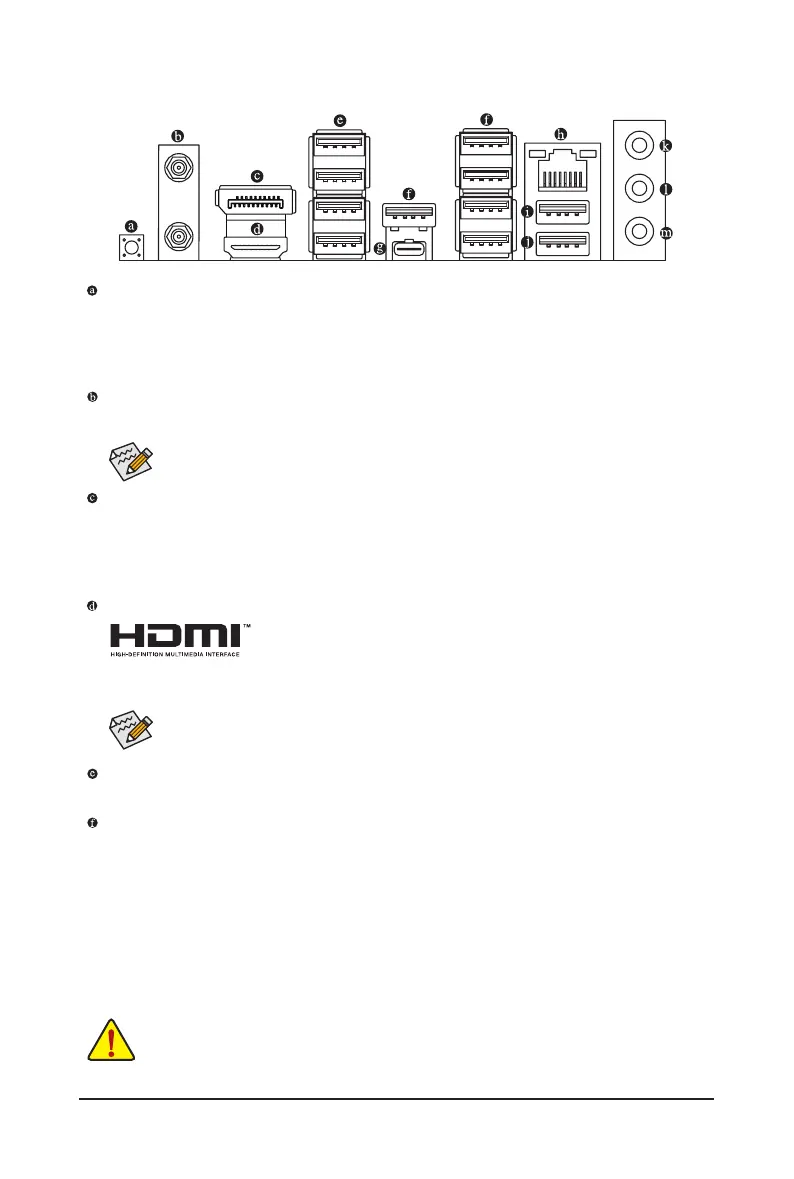

2-6 Back Panel Connectors

Q-Flash Plus Button

(Note)

Q-Flash Plus allows you to update the BIOS when your system is off (S5 shutdown state). Save the latest

BIOS on a USB thumb drive and plug it into the dedicated port, and then you can now ash the BIOS

automatically by simply pressing the Q-Flash Plus button. The QFLED will ash when the BIOS matching

and ashing activities start and will stop ashing when the main BIOS ashing is complete.

SMA Antenna Connectors (2T2R)jk

Use this connector to connect an antenna.

DisplayPort

DisplayPort delivers high quality digital imaging and audio, supporting bi-directional audio transmission.

You can use this port to connect your DisplayPort-supported monitor. Note: The DisplayPort Technology

can support a maximum resolution of 3840x2160@144 Hz but the actual resolutions supported depend

on the monitor being used.

HDMI Port

The HDMI port is HDCP 2.3 compliant and supports Dolby TrueHD and DTS HD

Master Audio formats. It also supports up to 192KHz/24bit 7.1-channel LPCM audio

output. You can use this port to connect your HDMI-supported monitor. The maximum supported resolution

is 4096x2160@60 Hz, but the actual resolutions supported are dependent on the monitor being used.

Tighten the antennas to the antenna connectors and then aim the antennas correctly for better

signal reception.

After installing the DisplayPort/HDMI device, make sure to set the default sound playback device

to DisplayPort/HDMI. (The item name may differ depending on your operating system.)

• When removing the cable connected to a back panel connector, rst remove the cable from your

device and then remove it from the motherboard.

• When removing the cable, pull it straight out from the connector. Do not rock it side to side to

prevent an electrical short inside the cable connector.

USB 2.0/1.1 Port

The USB port supports the USB 2.0/1.1 specication. Use this port for USB devices.

USB 3.2 Gen 1 Port

The USB 3.2 Gen 1 port supports the USB 3.2 Gen 1 specication and is compatible to the USB 2.0

specication. Use this port for USB devices.

j Only for B650 AORUS ELITE AX ICE.

k Only for B650 AORUS ELITE AX V2.
